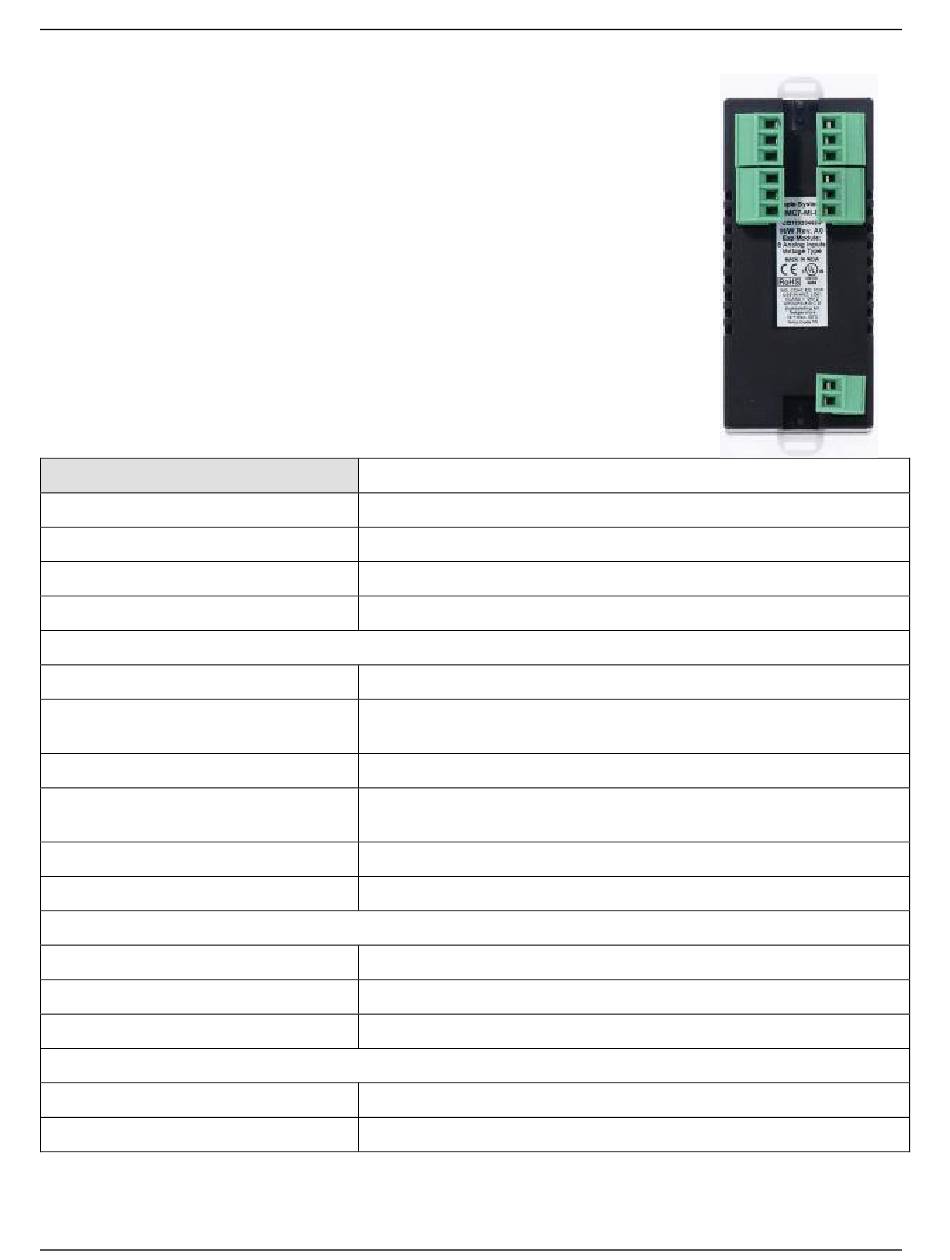

HMC7-MI-03 (8 Voltage Input Analog Module)

This module is an analog input module for the HMC7000 Series
models. It has eight analog inputs, which can measure 0-10V,
and -10 to +10Vsignals.

Specifications:

Power
Approvals
Analog Inputs
Resolution
Connection method
Voltage Mode
Input range
Value of LSB:
Input Impedance
Accuracy
Frequency Limit (-3db)
Behavior upon sensor failure
General
Operating Temperature
Operating Humidity
Mechanical Dimension (LxWxH)
Input Power Supply
Input Voltage
Input Current
HMC7000 Series I/O Module Guide
3.9 VDC from HMC7000 base
CE, UL
8 Inputs (0-10V, -10 to +10V)
12 bit
Removable terminals (3.81 mm pitch)
-10V to +10V, 0 - 10V
For 0-10V: 2.44mV
For +/-10V: 4.88mV
200KΩ
At 25°C: 0.1% of full scale
Overall Accuracy (-25°C to 55°C) 1% of full scale
3.5KHz
Input goes to 0, as if no input is connected
0 to 55°C
10% to 90% (non condensing)
3.11x1.18x1.42 inches [79x30x36mm]
24VDC
50mA
13
