Wiring; Configuration - Maple Systems HMC7000 Series Manual

HMC7000 Series I/O Module Guide

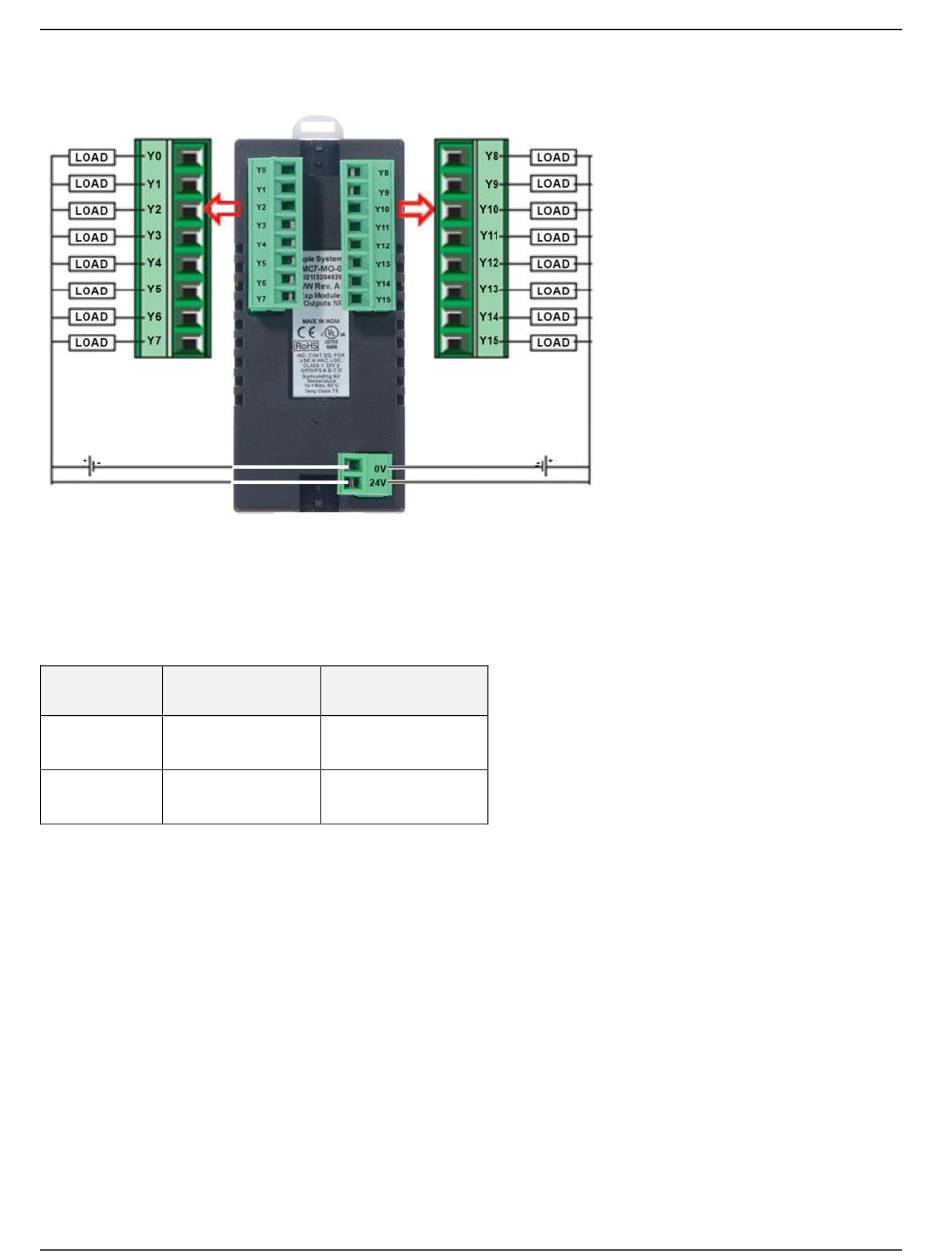

Wiring:

Configuration:

Use MAPware-7000 to assign output (Y and YW) addresses to the
module. These addresses are created according to the slot location of
the module, where nn refers to the slot number (ex. 01...05):
Register Description
Ynn000-
Output Bits
Ynn015
Output Word
YWnn00
Data
HMC7000 Series I/O Module Guide
Access
Read/Write
Read/Write
