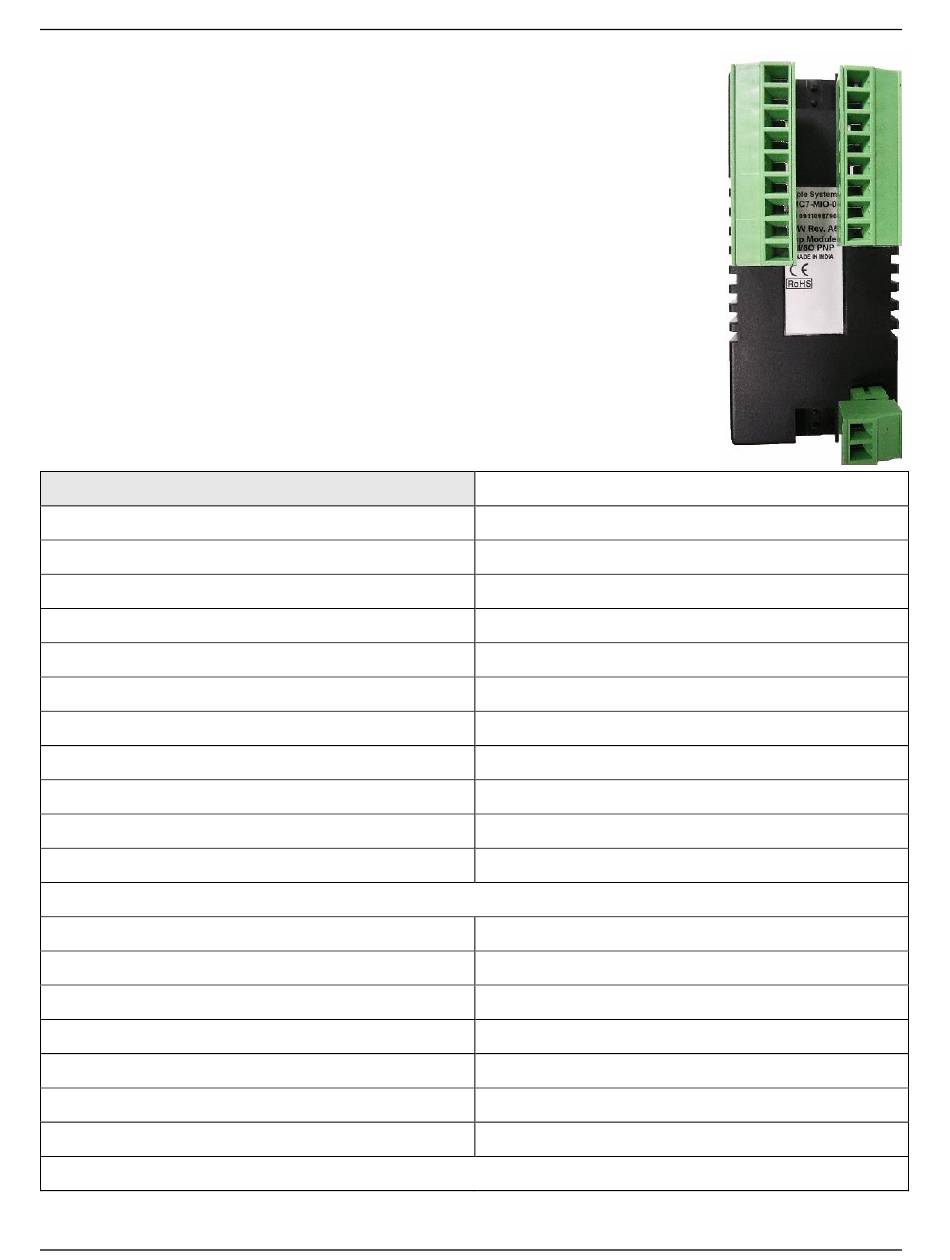

HMC7-MIO-02 (8 Bidirectional Input, 8 Sourcing Output Digital Module)

This module is a digital input/output module for the HMC7000
Series models. It has eight bidirectional inputs and eight
sourcing digital outputs. Two inputs can be configured as high
speed counters (HSC) using the MW registers (see below). When
used as HSCs, input X0 (channel 1) and X5 (channel 2) are used to
record the incoming pulses.

Specifications:

Power
Approvals
Digital Inputs
Rated input voltage
Rated input current
Input impedance
Minimum ON voltage
Maximum OFF voltage
Turn ON Time
Turn OFF Time
Isolation
Connection method
High Speed Channels
No. of inputs
Maximum Input Frequency
Maximum Input Count
Digital Outputs
Output Capacity
Rated load
Total output capacity
General
HMC7000 Series I/O Module Guide
3.9 VDC from HMC7000 base
CE, UL
8 bidirectional inputs
24 VDC
Up to 5mA
4.9K ohms
15 VDC
5 VDC
10 msec
10 msec
Optically isolated from internal circuit
Removable terminals (3.81 mm pitch)
2 channels (X0 and X5)
25 KHz
4,294,967,295 (32-bit)
8 sourcing outputs (PNP-type)
500mA per output maximum
500mA @ 24VDC
4A @ 24VDC
