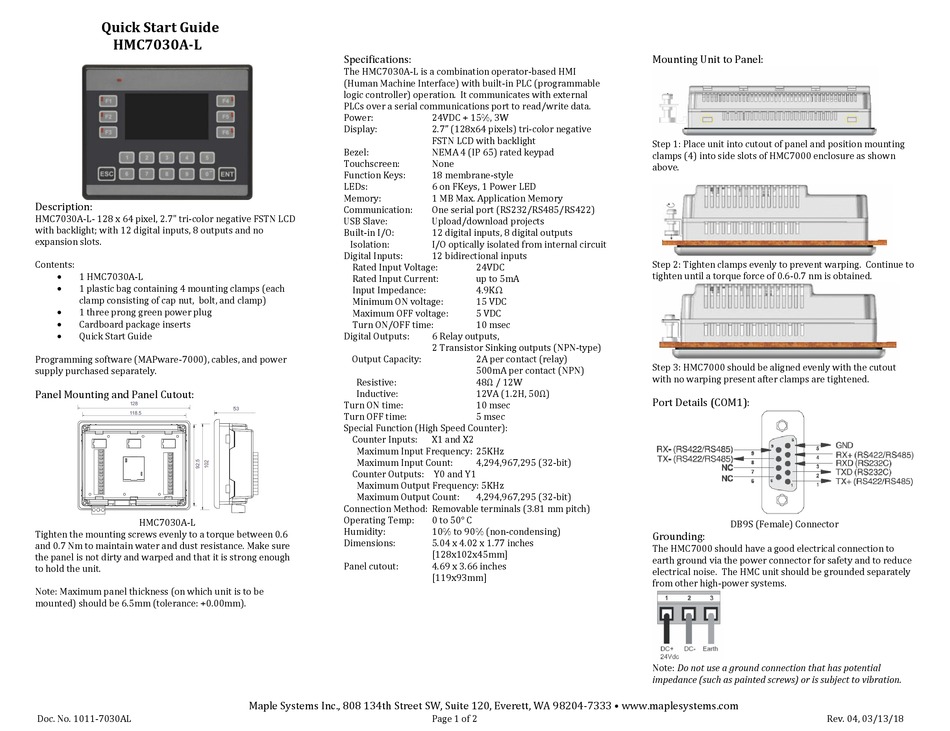

Quick Start Guide
HMC7030A-L
Description:
HMC7030A-L- 128 x 64 pixel, 2.7" tri-color negative FSTN LCD
with backlight; with 12 digital inputs, 8 outputs and no
expansion slots.
Contents:

1 HMC7030A-L

1 plastic bag containing 4 mounting clamps (each
clamp consisting of cap nut, bolt, and clamp)
 1 three prong green power plug
 Cardboard package inserts
 Quick Start Guide
Programming software (MAPware-7000), cables, and power
supply purchased separately.
Panel Mounting and Panel Cutout:
HMC7030A-L
Tighten the mounting screws evenly to a torque between 0.6
and 0.7 Nm to maintain water and dust resistance. Make sure
the panel is not dirty and warped and that it is strong enough
to hold the unit.
Note: Maximum panel thickness (on which unit is to be
mounted) should be 6.5mm (tolerance: +0.00mm).
Doc. No. 1011-7030AL
Specifications:
The HMC7030A-L is a combination operator-based HMI
(Human Machine Interface) with built-in PLC (programmable
logic controller) operation. It communicates with external
PLCs over a serial communications port to read/write data.
Power:
Display:
Bezel:
Touchscreen:
Function Keys:
LEDs:
Memory:
Communication:
USB Slave:
Built-in I/O:
Isolation:
Digital Inputs:
Rated Input Voltage:
Rated Input Current:
Input Impedance:
Minimum ON voltage:
Maximum OFF voltage:
Turn ON/OFF time:
Digital Outputs:
Output Capacity:
Resistive:
Inductive:
Turn ON time:
Turn OFF time:
Special Function (High Speed Counter):
Counter Inputs:
Maximum Input Frequency: 25KHz
Maximum Input Count:
Counter Outputs: Y0 and Y1
Maximum Output Frequency: 5KHz
Maximum Output Count:
Connection Method: Removable terminals (3.81 mm pitch)
Operating Temp:
Humidity:
Dimensions:
Panel cutout:
Maple Systems Inc., 808 134th Street SW, Suite 120, Everett, WA 98204-7333 • www.maplesystems.com
24VDC + 15%, 3W
2.7" (128x64 pixels) tri-color negative
FSTN LCD with backlight
NEMA 4 (IP 65) rated keypad
None
18 membrane-style
6 on FKeys, 1 Power LED
1 MB Max. Application Memory
One serial port (RS232/RS485/RS422)
Upload/download projects
12 digital inputs, 8 digital outputs
I/O optically isolated from internal circuit
12 bidirectional inputs
24VDC
up to 5mA
4.9KΩ
15 VDC
5 VDC
10 msec
6 Relay outputs,
2 Transistor Sinking outputs (NPN-type)
2A per contact (relay)
500mA per contact (NPN)
48Ω / 12W
12VA (1.2H, 50Ω)
10 msec
5 msec
X1 and X2
4,294,967,295 (32-bit)
4,294,967,295 (32-bit)
0 to 50° C
10% to 90% (non-condensing)
5.04 x 4.02 x 1.77 inches
[128x102x45mm]
4.69 x 3.66 inches
[119x93mm]
Page 1 of 2
Mounting Unit to Panel:
Step 1: Place unit into cutout of panel and position mounting
clamps (4) into side slots of HMC7000 enclosure as shown
above.
Step 2: Tighten clamps evenly to prevent warping. Continue to
tighten until a torque force of 0.6-0.7 nm is obtained.
Step 3: HMC7000 should be aligned evenly with the cutout
with no warping present after clamps are tightened.
Port Details (COM1):
DB9S (Female) Connector
Grounding:
The HMC7000 should have a good electrical connection to
earth ground via the power connector for safety and to reduce
electrical noise. The HMC unit should be grounded separately
from other high-power systems.
Note: Do not use a ground connection that has potential
impedance (such as painted screws) or is subject to vibration.
Rev. 04, 03/13/18
.
