2. How to Programme
2

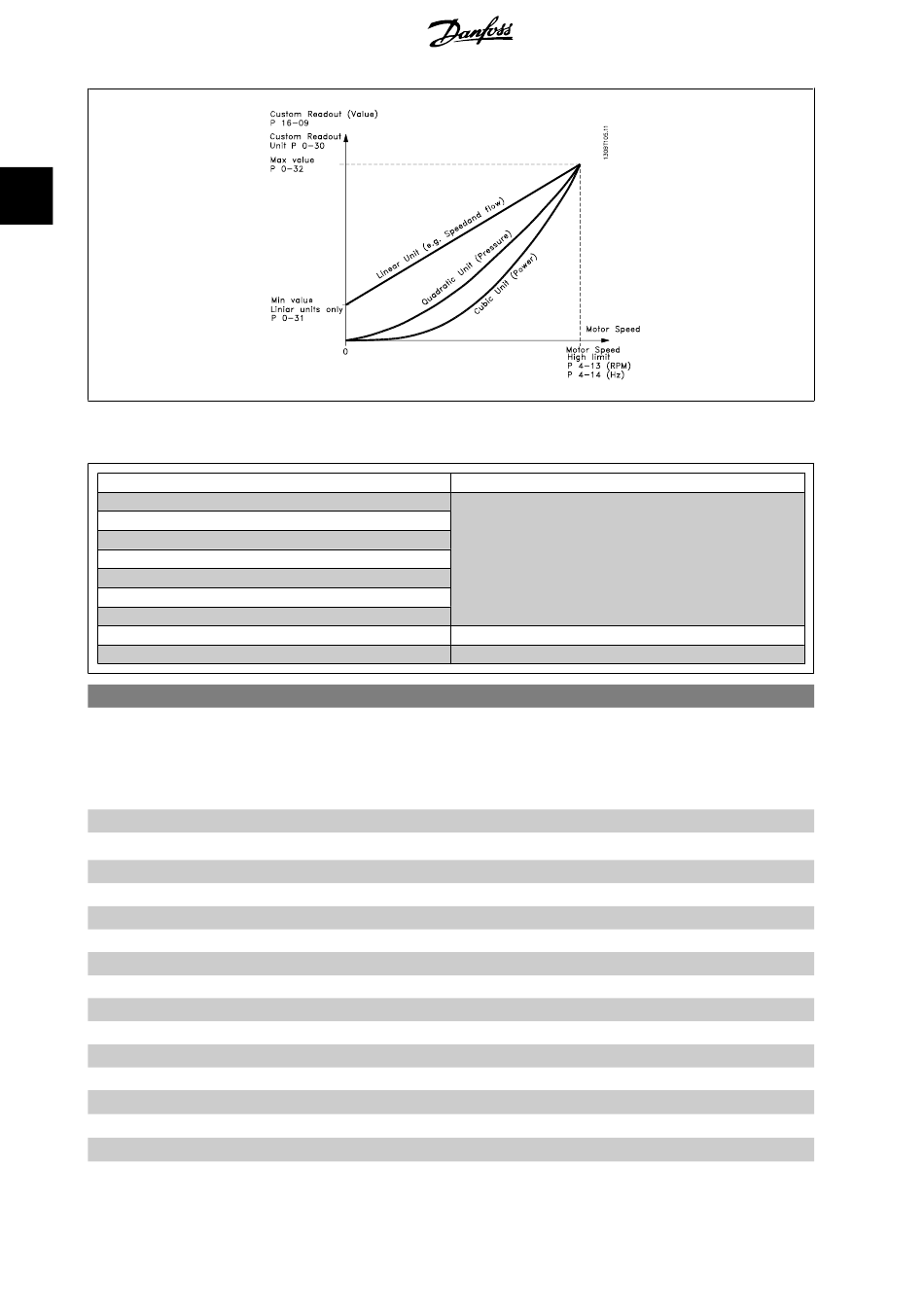

The relation will depend on the type of unit selected in par.0-30, Custom Readout Unit:
Unit Type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
0-30 Custom Readout Unit
Option:
Dimensionless:
*
None
[0]
[1] %
[5] PPM
Speed:
[10] 1/min
[11] RPM
[12] Pulse/s
Flow, volume:
[20] l/s
[21] l/min
[22] l/h
[23] 3
m /s
[24] 3
m /min
[25] m 3 /h
34
Speed Relation
Linear
Quadratic
Cubic
Function:
It is possible to program a value to be shown in the display of the LCP. The value will have a linear, squared or
cubed relation to speed. This relation will depend on the unit selected (see table above). The actual calculated
Custom Readout
value can be read in
[16-09] in par. 0-20 – 0-24, Display Line X.X Small (large).
®
MG.33.M3.02 - VLT is a registered Danfoss trademark
, par. 16-09, and/or shown in the display be selecting Custom Readout
