ER5000 — Installation Variations

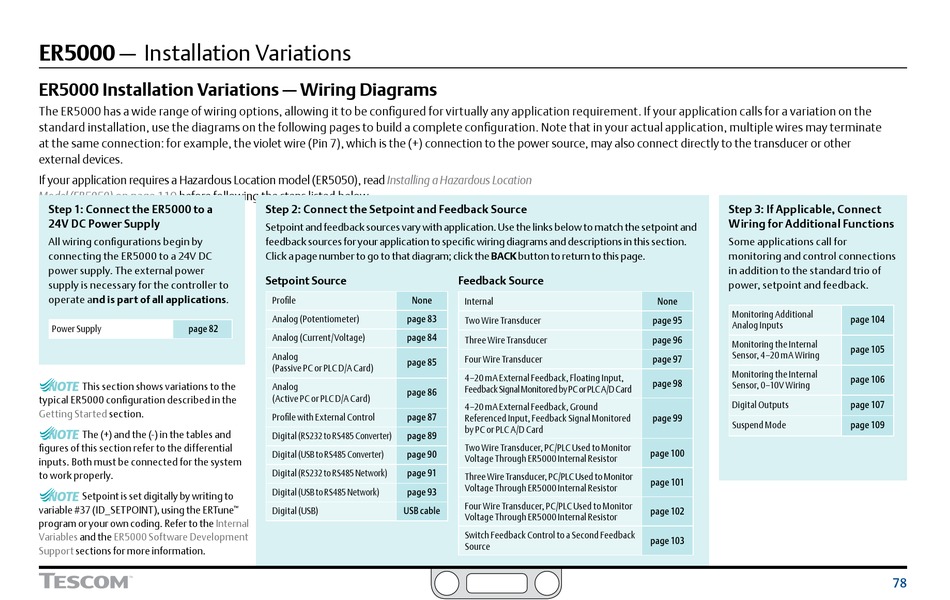

ER5000 Installation Variations — Wiring Diagrams
The ER5000 has a wide range of wiring options, allowing it to be configured for virtually any application requirement. If your application calls for a variation on the
standard installation, use the diagrams on the following pages to build a complete configuration. Note that in your actual application, multiple wires may terminate
at the same connection: for example, the violet wire (Pin 7), which is the (+) connection to the power source, may also connect directly to the transducer or other
external devices.
If your application requires a Hazardous Location model (ER5050), read
Model (ER5050) on page 110 before following the steps listed below.
Step 1: Connect the ER5000 to a
24V DC Power Supply
All wiring configurations begin by
connecting the ER5000 to a 24V DC
power supply. The external power
supply is necessary for the controller to
operate and is part of all applications.
Power Supply page 82
NOTE NOTE
This section shows variations to the
typical ER5000 configuration described in the
CAUTION CAUTION
Getting Started section.
NOTE NOTE
WARNING WARNING The (+) and the (-) in the tables and
figures of this section refer to the differential
CAUTION CAUTION
inputs. Both must be connected for the system
to work properly.
WARNING WARNING
NOTE NOTE
Setpoint is set digitally by writing to
variable #37 (ID_SETPOINT), using the ERTune
CAUTION CAUTION
program or your own coding. Refer to the Internal
Variables and the ER5000 Software Development
WARNING WARNING
Support sections for more information.
Installing a Hazardous Location
Step 2: Connect the Setpoint and Feedback Source
Setpoint and feedback sources vary with application. Use the links below to match the setpoint and
feedback sources for your application to specific wiring diagrams and descriptions in this section.
Click a page number to go to that diagram; click the BACK button to return to this page.
Setpoint Source
Profile None
Analog (Potentiometer) page 83
Analog (Current/Voltage) page 84
Analog
page 85
(Passive PC or PLC D/A Card)
Analog
page 86
(Active PC or PLC D/A Card)
Profile with External Control page 87
Digital (RS232 to RS485 Converter) page 89
Digital (USB to RS485 Converter) page 90
Digital (RS232 to RS485 Network) page 91
Digital (USB to RS485 Network)
page 93
™ Digital (USB) USB cable
Feedback Source
Internal
Two Wire Transducer
Three Wire Transducer
Four Wire Transducer
4–20 mA External Feedback, Floating Input,
Feedback Signal Monitored by PC or PLC A/D Card
4–20 mA External Feedback, Ground
Referenced Input, Feedback Signal Monitored
by PC or PLC A/D Card
Two Wire Transducer, PC/PLC Used to Monitor
Voltage Through ER5000 Internal Resistor
Three Wire Transducer, PC/PLC Used to Monitor
Voltage Through ER5000 Internal Resistor
Four Wire Transducer, PC/PLC Used to Monitor
Voltage Through ER5000 Internal Resistor
Switch Feedback Control to a Second Feedback
Source
Step 3: If Applicable, Connect
Wiring for Additional Functions
Some applications call for
monitoring and control connections
in addition to the standard trio of
power, setpoint and feedback.
None
Monitoring Additional
page 95
Analog Inputs
page 96
Monitoring the Internal
Sensor, 4–20 mA Wiring
page 97
Monitoring the Internal
page 98
Sensor, 0–10V Wiring
Digital Outputs
page 99
Suspend Mode
page 100
page 101
page 102
page 103
page 104
page 105
page 106
page 107
page 109
78
