ER5000 — The ERTune™ Program: Basic Features
To view an acquired data file
Plot File
1. Click the button. A Windows Explorer window opens.
2. Navigate to the .dat file you wish to view and double-click it
OPEN
or click the button.
3. The data file opens in the Plot Screen window.
The file opens as a single, static image of the complete data
set. You can use the mouse techniques described in
the Range Displayed by the Plot Screen Using the Mouse
view different sections of the data at close range.
Resizing
to

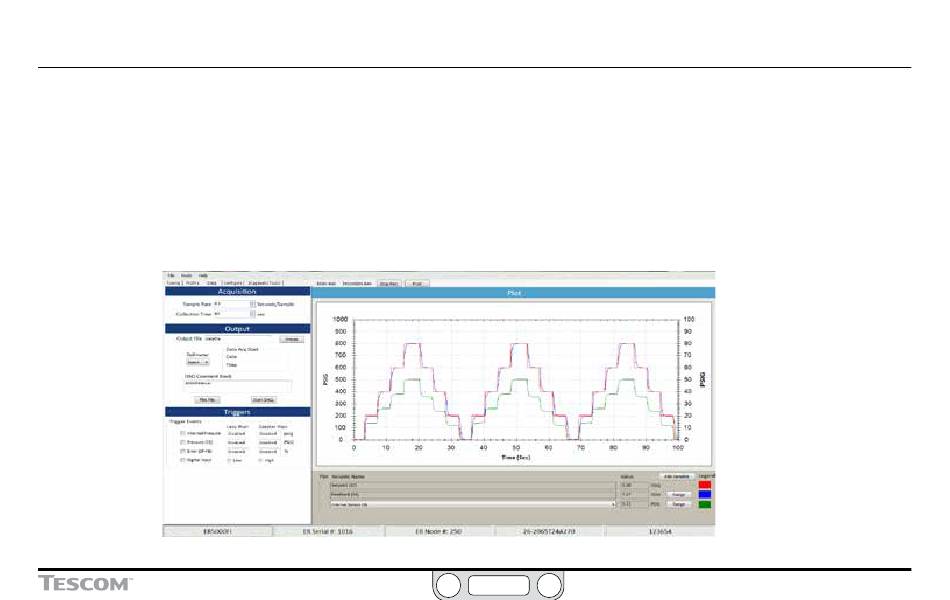

Figure 62: An Acquired Data File Opened in the Plot Screen
