ER5000 Series — Features and Specifications
3.90
[99.0]
.98
[24.9]
1/2-14 NPTF
Conduit
Connection for
USB Wiring
[13.77]

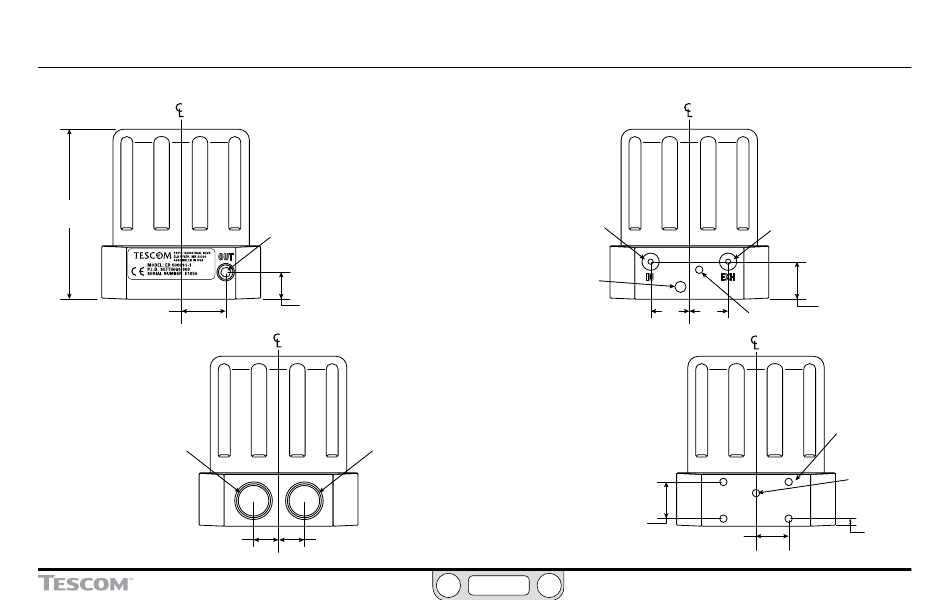

Dimensions – Side Views
Contact the factory for dimensions and specifications
of models ER5020, ER5040, ER5100 and ER5110.
Refer to the ER5000 Series Part Numbering System.
Gauge Port
1/8–27 NPTF
.63
[16.0]
1/2-14 NPTF
Conduit
Connection for
Internal Wiring
.54 .54
[13.77]
ER5000
Inlet Port
1/8–27 NPTF
Atmospheric
Reference for
Internal Sensor
All dimensions are called out in
inches [millimeters]
Exhaust Port
1/8–27 NPTF
.93 .93
Not Used
[23.7] [23.7]
.75
[19.0]
.75
[19.0]
4x
.87
[22.1]
Mounting
Holes
#10-32 UNF
.50 FULL THREAD
[M5 X 0.8
12.7 FULL THREAD]
(4 Places)
Not Used
.20
[5.1]
