ER5000 — The ERTune™ Program: Basic Features

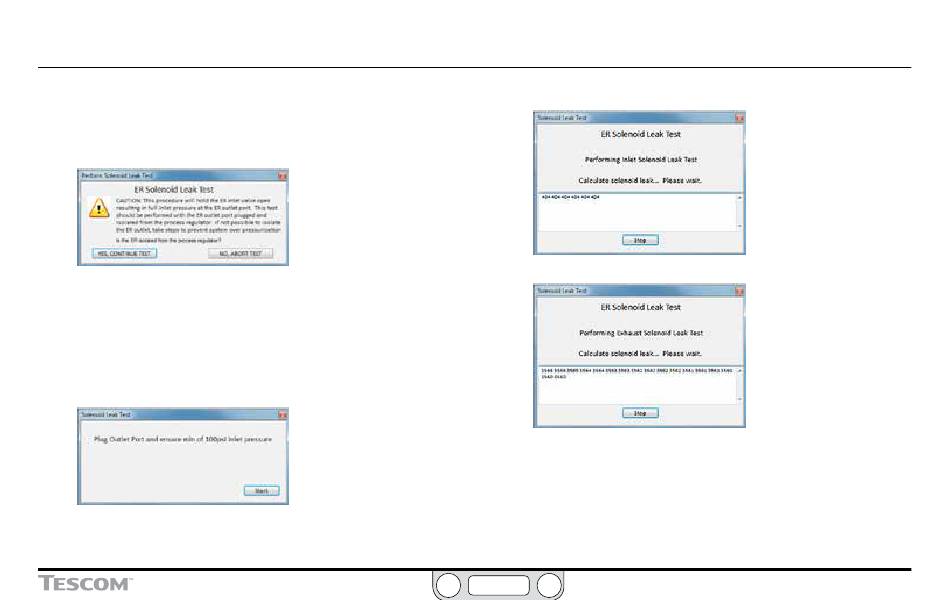

2. To continue to the test, click the
To abort the test so you can institute safety procedures, click
NO, ABORT TEST
the button.
3. The second screen opens. This is an additional caution screen.
4. To continue to the test, click the
To abort the test so you can institute safety procedures, click
NO, ABORT TEST
the button.
5. The third screen opens. Verify that the Outlet Port of the
ER5000 is plugged and a minimum of 100 psig / 6.9 bar inlet
pressure is being applied to the Inlet Port of the controller.
Start
6. Click the button to start the test.
YES, CONTINUE TEST
button.
YES, CONTINUE TEST
button.
7. The test begins. The program first tests the Inlet Valve.
8. The program then tests the Outlet (Exhaust) Valve.
The Solenoid Leak Test reads variable #44 (ID_FEEDBACK),
which during the test is the feedback from the ER5000's
0–100 psig / 0–6.9 bar internal sensor. The feedback is
measured in "counts," which are units of 0.03 psig / 0.002 bar
between a minimum value of 400 (0%) and a maximum value
of 3700 (100%).
(continued next page)
