Getting Started
8
Connect the USB cable
WARNING
The controller must be disconnected from the power
supply before any additional wiring or change to jumper
configuration is performed. Do not reconnect the power
supply until all additional wiring connections have been
made and are properly installed.
WARNING
Refer to
Installing a Hazardous Location
Model (ER5050)
on
a Hazardous Location application. Refer to
page 93
for correct wiring variations using RS485.
The cable included with the ER5000 has a standard USB A
connector on one end and a 90° Mini-B connector on the other.
1. Slide the Mini-B connector into the left conduit port in the
base of the ER5000 as shown in Figure 13.
2. Thread the cable over the control board and plug it into
the Mini-B USB port.
3. Remove any excess slack in the cable and secure the
integrated strain relief into the conduit port.
4. Plug the cable's USB A connector into the computer that
will run the ERTune™ program.
5. Screw the cover back onto the ER5000 until you have a
tight fit and plug in the power supply.
(not supplied with ER5050)
page 110
for more information on wiring in
page 89 through
Mini-B Port
90° Mini-B Connector
Integrated USB
Strain Relief

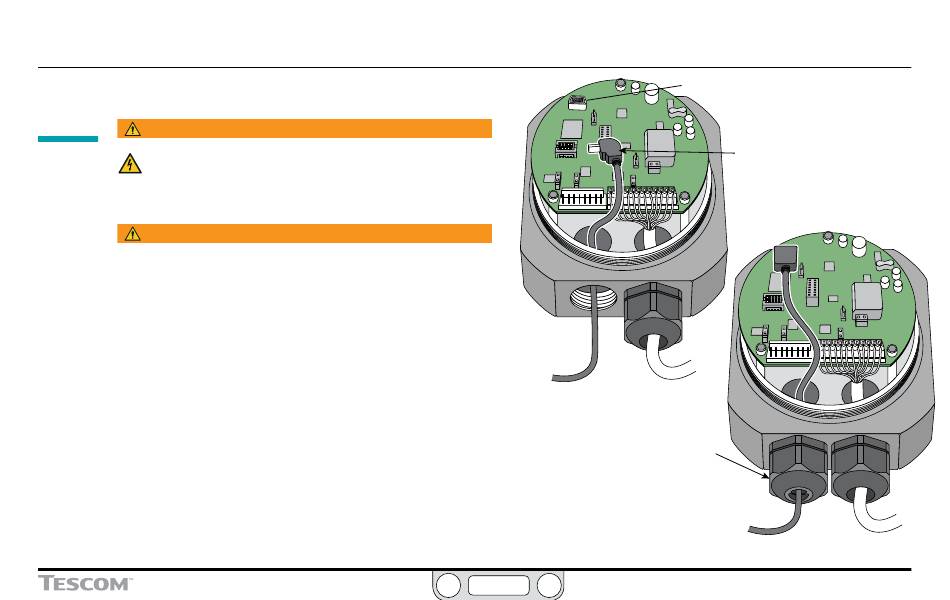

Figure 13: Connect the USB Cable
71
