ER5000 — Getting Started

Verify the Jumper J6 configuration

6
WARNING
The controller must be disconnected from the power
supply before any additional wiring or change to jumper
configuration is performed. Do not reconnect the power
supply until all additional wiring connections have been
made and are properly installed.
WARNING
DO NOT open cover when an explosive atmosphere is present.
Doing so can result in property damage, serious injury or death.
Refer to Installing a Hazardous Location
Model (ER5050) on
NOTE NOTE
If you are replacing an ER3000 in an existing application
and wish to continue using your current software such as the
CAUTION CAUTION
Windows Tune program, you will need to install Jumper J9. The
default configuration for Jumper J9 is NOT installed.
WARNING WARNING
With the cover still removed, inspect Jumper J6. Refer to
Figure 11.
• For connection to a 4–20 mA transducer, the jumper should
be installed.
• For connection to a 1–5V transducer, the jumper should
NOT be installed.
page 110 for more information.
Jumper J6
External Feedback
ON = 4–20 mA
OFF = 1–5V
Jumper shown
installed
for 4–20 mA
feedback source.
Jumper J9
ER3000 / ER5000
Mode Select
Configure to ON if you are
replacing an ER3000 and you
wish to continue using your
current software. Jumper is
OFF by default.

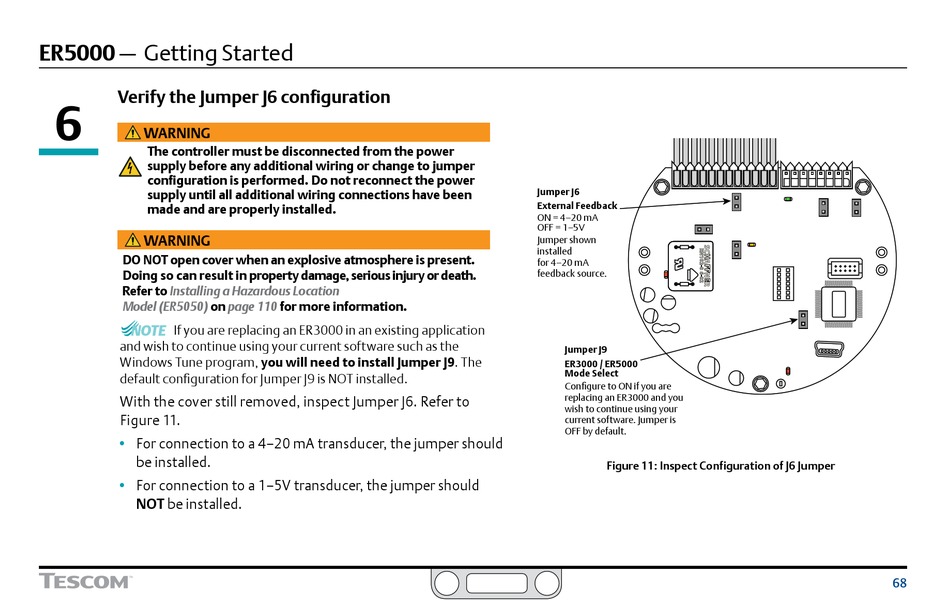

Figure 11: Inspect Configuration of J6 Jumper
