ER5000 — The ERTune™ Program: Basic Features

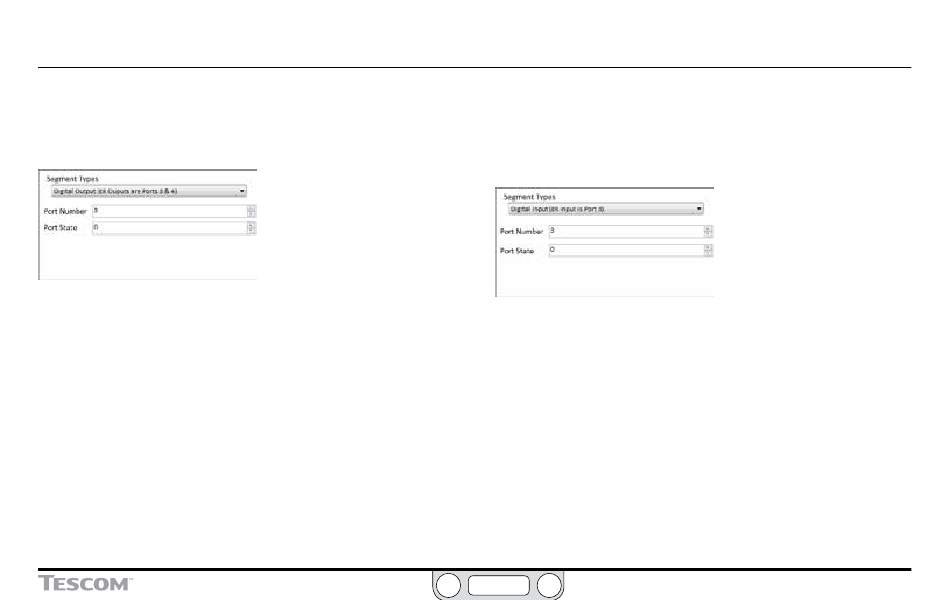

Digital Output (ER Outputs are Ports 3 & 4)
Sends a signal to trigger a process in another part of the system.
Refer to the Digital Outputs wiring configuration for an example
of an ER5000 with digital outputs.
Enter the ER5000 port number for the digital output in the
Number
field and the ER5000 port state (0 => open circuit, 1=>
Port State
closed circuit) in the entry field.
Digital Input (ER Input is Port 3)
Pauses the Profile until the specified input is set to the specified
state. Refer to the
wiring configuration for an example of an ER5000 with
digital inputs.
Port
Enter the ER5000 port number for the digital input in the
Number
field and the ER5000 port state (0 => open circuit, 1=>
closed circuit) in the
Profile with External Control/Digital Inputs
Port State
entry field.
Port
