ER5000 Series — Features and Specifications
4.09
[103.8]
.98
[24.9]
1/8" NPTF Plug
Not Used
DO NOT REMOVE
1/2-14 NPTF
Conduit
Connection for
USB Wiring
.54 [13.77]

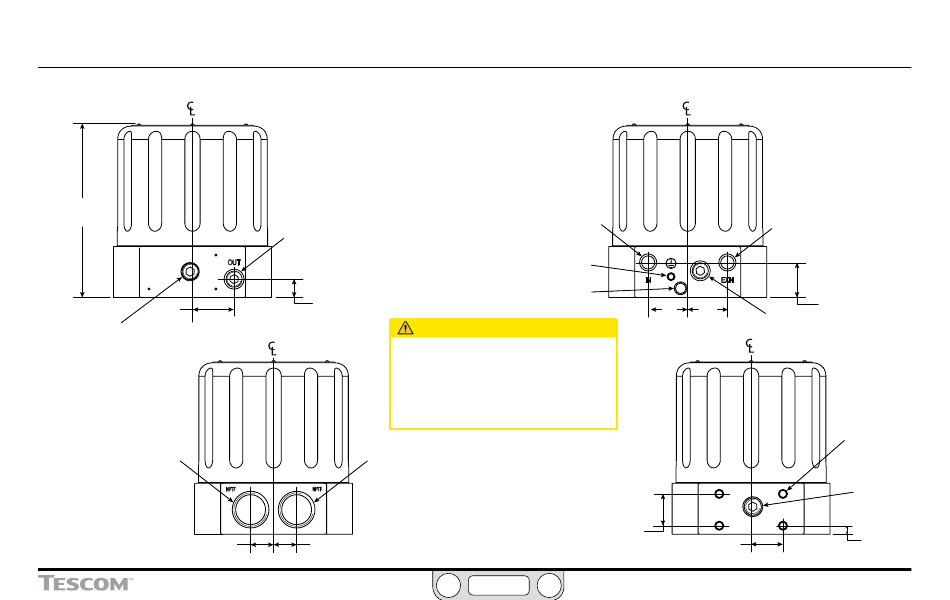

ER5050 Hazardous Location Model

Dimensions – Side Views
Contact the factory for dimensions and specifications
of models ER5020, ER5040, ER5100 and ER5110.
Refer to the ER5000 Series Part Numbering System.
Gauge Port
1/8–27 NPTF
.43
[11.0]
CAUTION
Removal of ANY of the 1/8" NPTF
plugs called out on this page, other
than the Gauge Port plug, will
invalidate the Hazardous Location
certification for the ER5050.
1/2-14 NPTF
Conduit
Connection for
Internal Wiring
All dimensions are called out in
inches [millimeters]
.54 [13.77]
Inlet Port
1/8–27 NPTF
External Ground
Atmospheric Reference
for Internal Sensor
.93
[23.7]
.75
[19.0]
Exhaust Port
1/8–27 NPTF
.83
[22.0]
.93
[23.7] 1/8" NPTF Plug – Not Used
DO NOT REMOVE
Mounting
#10-32 UNF
.50 FULL THREAD
[M5 X 0.8
12.7 FULL THREAD]
(4 Places)
1/8" NPTF Plug
DO NOT REMOVE
.75 [19.0] (4x)
Holes
Not Used
.20
[5.1]
