ER5000 Series — Features and Specifications

ER5050 Hazardous Location Model

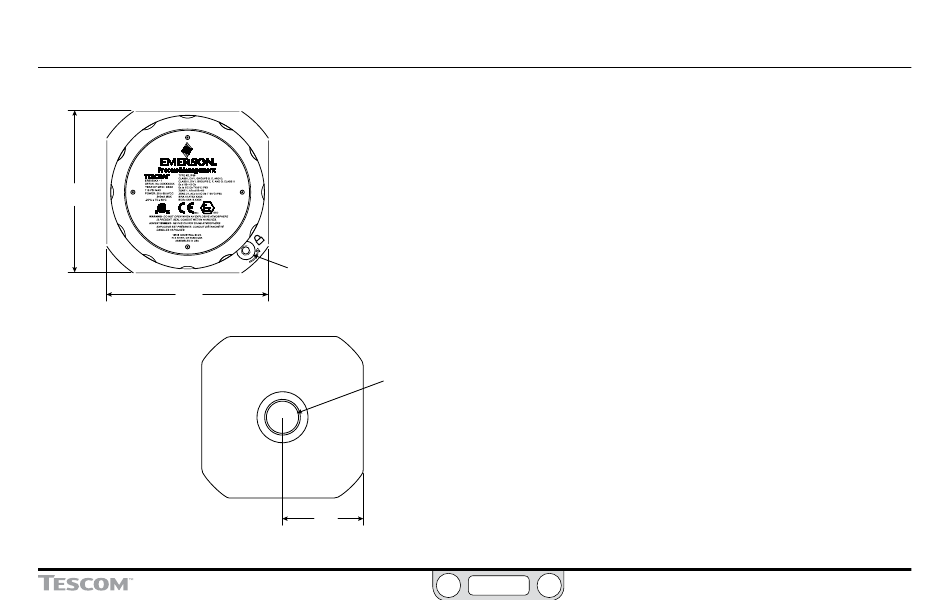

Dimensions – Top and Bottom View
Contact the factory for dimensions and specifications
of models ER5020, ER5040, ER5100 and ER5110.
Refer to the ER5000 Series Part Numbering System.
Top View
3.72
[94.5]
Cover Lock Screw
All dimensions are called out in
inches [millimeters]
3.72
[94.5]
Outlet Port
1/2 SAE (3/4-16 UNF)
Bottom View
1.86
[47.2]
19
