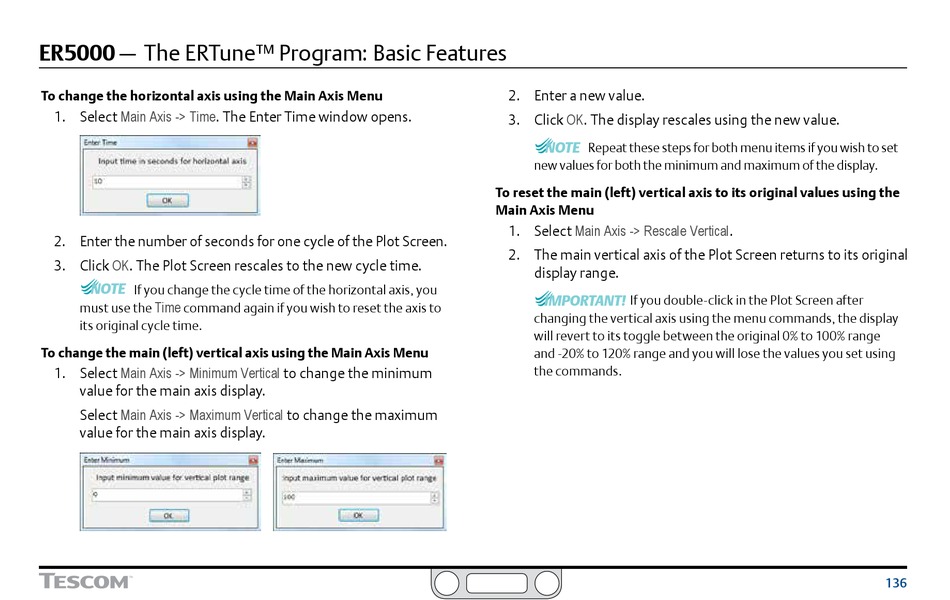

Emerson Tescom ER5000 Series User Manual page 136

ER5000 — The ERTune™ Program: Basic Features
To change the horizontal axis using the Main Axis Menu
Main Axis -> Time. The Enter Time window opens.
1. Select
2. Enter the number of seconds for one cycle of the Plot Screen.
3. Click OK. The Plot Screen rescales to the new cycle time.
NOTE NOTE
If you change the cycle time of the horizontal axis, you
Time
must use the command again if you wish to reset the axis to
CAUTION CAUTION
its original cycle time.
WARNING WARNING
To change the main (left) vertical axis using the Main Axis Menu
Main Axis -> Minimum Vertical
1. Select
value for the main axis display.
Main Axis -> Maximum Vertical
Select
value for the main axis display.
to change the minimum
to change the maximum
2. Enter a new value.
3. Click OK. The display rescales using the new value.
NOTE NOTE
Repeat these steps for both menu items if you wish to set
new values for both the minimum and maximum of the display.
CAUTION CAUTION
To reset the main (left) vertical axis to its original values using the
WARNING WARNING
Main Axis Menu
Main Axis -> Rescale
1. Select
2. The main vertical axis of the Plot Screen returns to its original
display range.
IMPORTANT! IMPORTANT!
If you double-click in the Plot Screen after
changing the vertical axis using the menu commands, the display
will revert to its toggle between the original 0% to 100% range
and -20% to 120% range and you will lose the values you set using
the commands.
Vertical.
