ER5000 — The ERTune™ Program: Basic Features
Profile Setpoint Source
When this is selected, the ER5000 uses a Profile to control
setpoint changes. The Profile must be loaded in the controller.
By default, the Profile that is currently saved on the controller's
control board is uploaded to the ERTune™ program when the
program opens.
• To ensure that the Profile displayed in
matches the Profile in the controller, click the
in The Profile Panel.
• To load a Profile that was previously saved to the PC, click the
Open button in The Profile
to use, then click the Download
• You may also build a Profile using
then click the Download
The Profile Window
Upload button
Panel, locate the Profile you wish
button.
The Profile Builder Panel,
button.

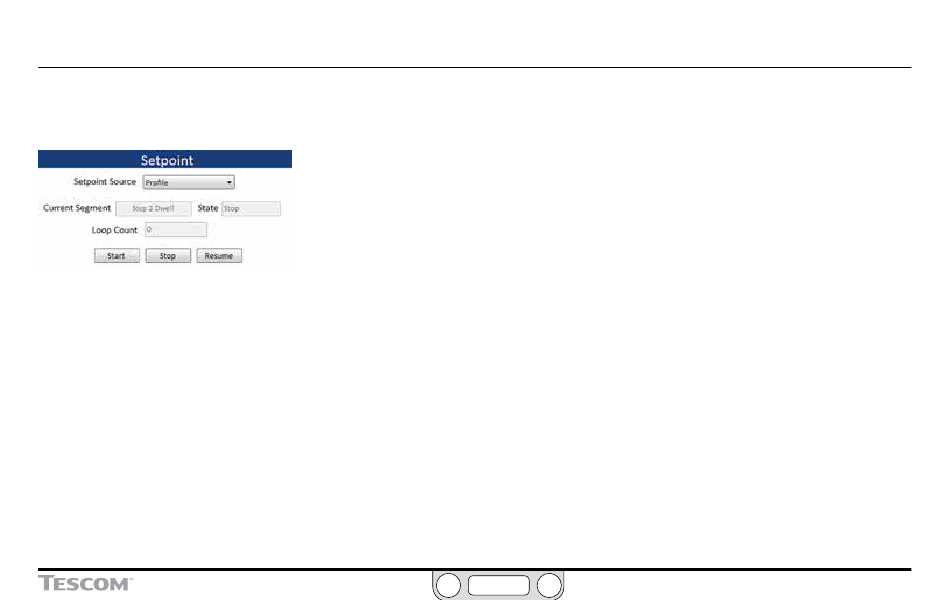

To tune the ER5000 using a Profile
1. Click the Profile Tab.
2. Load a Profile into the Profile Tab. You may upload it from
the ER5000, create it using the Profile Builder or open a
previously saved Profile.
3. Click the Tuning Tab.
Start
4. Click the button.
5. The Profile loads and the Tuning Tab displays the current
segment, the current state and the current loop count of the
Profile as it progresses through the commands.
The Profile will run until it reaches the End command.
You can view the entire Profile in
To pause the Profile
Stop
1. Click the Button.
To resume running the Profile
Resume
1. Click the Button.
The Profile Window.
