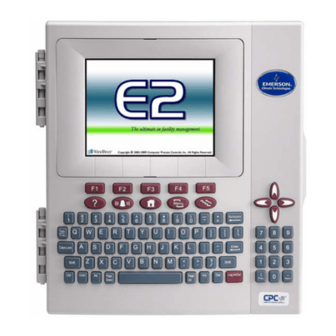

Emerson E2 Quick Start Manual
  1. Manuals
  2. Brands
  3. Emerson Manuals
  4. Controller
  5. E2
  6. Quick start manual

Emerson E2 Quick Start Manual

Setup with veeder-root tls-350 modbus device for 527-0370
Hide thumbs Also See for E2:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
quick start guide
E2 Setup with Veeder-Root TLS-350
MODBUS Device for 527-0370
This document will guide you through setting up and commissioning the Veeder-Root
TLS-350 (Automatic Tank Gauging System) MODBUS Device in the E2 controller.
Note that this device requires E2 firmware version 3.01 or higher.
STEP 1: Upload the description file to the E2 controller.
1. From UltraSite, connect to your E2 controller.
2. Right-click the E2 icon and select Description File Upload.
3. Browse to the location of the description file and click Upload.
4. After uploading, you will need to reboot the E2 controller.
Figure 1 - Description File Upload
Document Part # 026-4922 Rev 0 29-JUN-2012
©2012 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use.
Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

Advertisement

loading

Related Manuals for Emerson E2

Summary of Contents for Emerson E2

  • Page 1 Figure 1 - Description File Upload Document Part # 026-4922 Rev 0 29-JUN-2012 ©2012 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.
  • Page 2 8. Ensure that communication polarity is reversed when connecting to the E2. Document Part # 026-4922 Rev 0 29-JUN-2012 Page 2 of 8 ©2012 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.
  • Page 3 F2 key to C3: Serial tab and set up as shown. Document Part # 026-4922 Rev 0 29-JUN-2012 Page 3 of 8 ©2012 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.
  • Page 4 • COM4 Connection: MODBUS-1 • COM4 Baud: 9600 baud • COM4 Data Size: 8 • COM4 Parity: None • COM4 Stop Bits: 1 STEP 5: Once the license is activated, add the device to the E2 controller.    ...

  • Page 5: Key Points

    MODBUS device address. Document Part # 026-4922 Rev 0 29-JUN-2012 Page 5 of 8 ©2012 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.
  • Page 6 Figure 7 - MODBUS Port Assignment Document Part # 026-4922 Rev 0 29-JUN-2012 Page 6 of 8 ©2012 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.
  • Page 7 Figure 9 - Network Summary Screen Document Part # 026-4922 Rev 0 29-JUN-2012 Page 7 of 8 ©2012 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use. Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.
  • Page 8 The contents of this publication are presented for informational purposes only and they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. Emerson Climate Technologies Retail Solutions, Inc. and/or its affiliates (collectively “Emerson”), reserves the right to modify the designs or specifications of such products at any time without notice.
