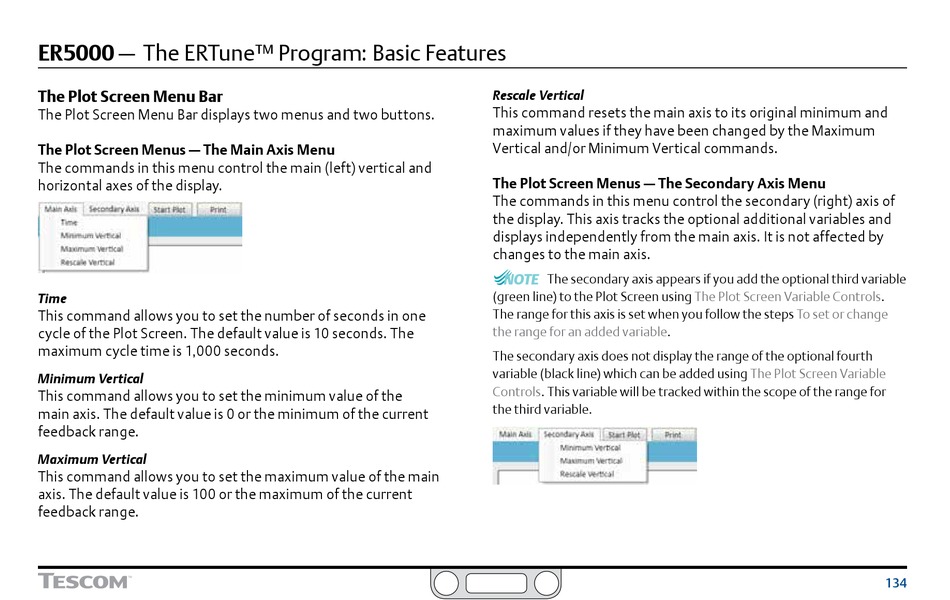

ER5000 — The ERTune™ Program: Basic Features
The Plot Screen Menu Bar
The Plot Screen Menu Bar displays two menus and two buttons.
The Plot Screen Menus — The Main Axis Menu
The commands in this menu control the main (left) vertical and
horizontal axes of the display.
Time
This command allows you to set the number of seconds in one
cycle of the Plot Screen. The default value is 10 seconds. The
maximum cycle time is 1,000 seconds.
Minimum Vertical
This command allows you to set the minimum value of the
main axis. The default value is 0 or the minimum of the current
feedback range.
Maximum Vertical
This command allows you to set the maximum value of the main
axis. The default value is 100 or the maximum of the current
feedback range.
Rescale Vertical
This command resets the main axis to its original minimum and
maximum values if they have been changed by the Maximum
Vertical and/or Minimum Vertical commands.
The Plot Screen Menus — The Secondary Axis Menu
The commands in this menu control the secondary (right) axis of
the display. This axis tracks the optional additional variables and
displays independently from the main axis. It is not affected by
changes to the main axis.
NOTE NOTE The secondary axis appears if you add the optional third variable
(green line) to the Plot Screen using
CAUTION CAUTION
The range for this axis is set when you follow the steps
the range for an added variable.
WARNING WARNING
The secondary axis does not display the range of the optional fourth
variable (black line) which can be added using
Controls. This variable will be tracked within the scope of the range for
the third variable.
The Plot Screen Variable Controls.
To set or change
The Plot Screen Variable
