ER5000 — The ERTune™ Program: Basic Features
7. The label you see for the field set in this window depends on
the Control Mode you selected in Step 6.
• If you selected External Feedback control mode, the
Feedback
range is labeled
listed in the specifications for the external transducer
you will be using for your application.
• If you selected Internal Feedback control mode, the
Internal
range is labeled
0–6.9 bar range for the ER5000's internal sensor.
• If you selected Cascade control mode, the range is
Feedback Transducer. Enter the range listed in
labeled
the specifications for the external transducer you will be
using for your application.
NOTE NOTE
As a general rule, the Internal Feedback range
should be left at default for Cascade Control Mode, so only
CAUTION CAUTION
the External Feedback range is shown in this window.
WARNING WARNING
Transducer. Enter the range
Feedback. Enter the 0–100 psig /
Next >

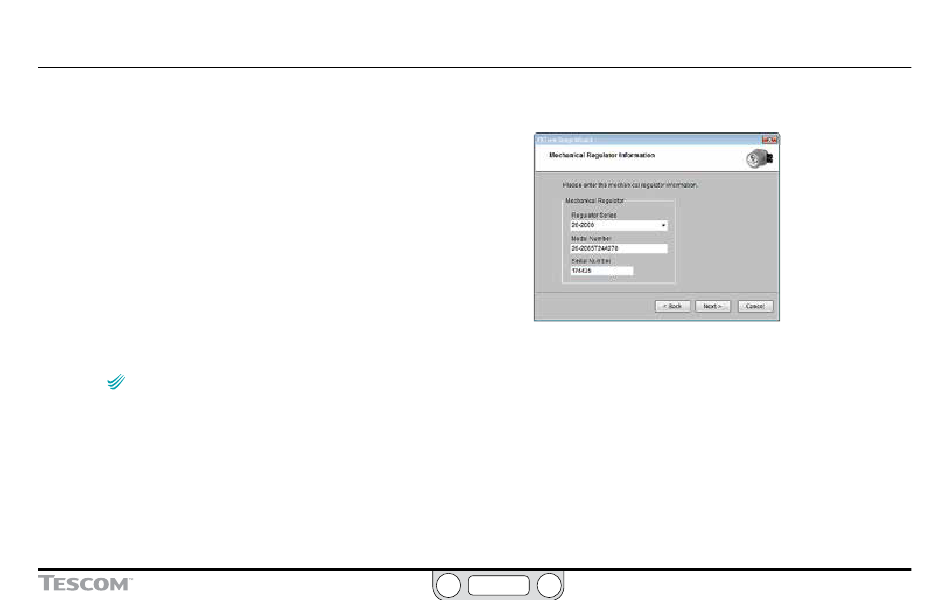

8. Click the button. The Mechanical Regulator Information
window opens.
9. Enter the information for the regulator you are using.
If you are using a TESCOM™ regulator, look for its series
•
Mechanical Regulator Series
number in the
Model Number
list. Also enter the
the regulator.
• If you are using a regulator from another manufacturer,
select Other. Also enter the
from the regulator.
• If the ER5000 will not be connected to a regulator,
select None.
drop-down
Serial Number
and from
Model Number Serial Number
and
(continued next page)
