Rtm Ip 4000 Card - Polycom RealPresence RMX 4000 Hardware Manual

Note: DC modules LED indications
On some DC modules LED indications may not be present.

RTM IP 4000 Card

A single RTM IP 4000 card provides system management based on the ATCA standard and connects to
the backplane. Through the shelf manager, it controls and monitors the system fans and regulates the AC
power supplies. This card contains an Ethernet Switch that manages the network of the system, routes
data between the cards and components of the system and provides connectivity to external IP networks.
The RTM IP 4000 card provides following ports:
▪ Six LAN ports
▪ One Serial port, for internal use
▪ One USB port
Note: Port use
LAN 4, LAN 5 and the Serial ports are only for debugging and not for customer use.
Do not remove the protective plastic caps from LAN 1, LAN 4 and LAN 5 ports.

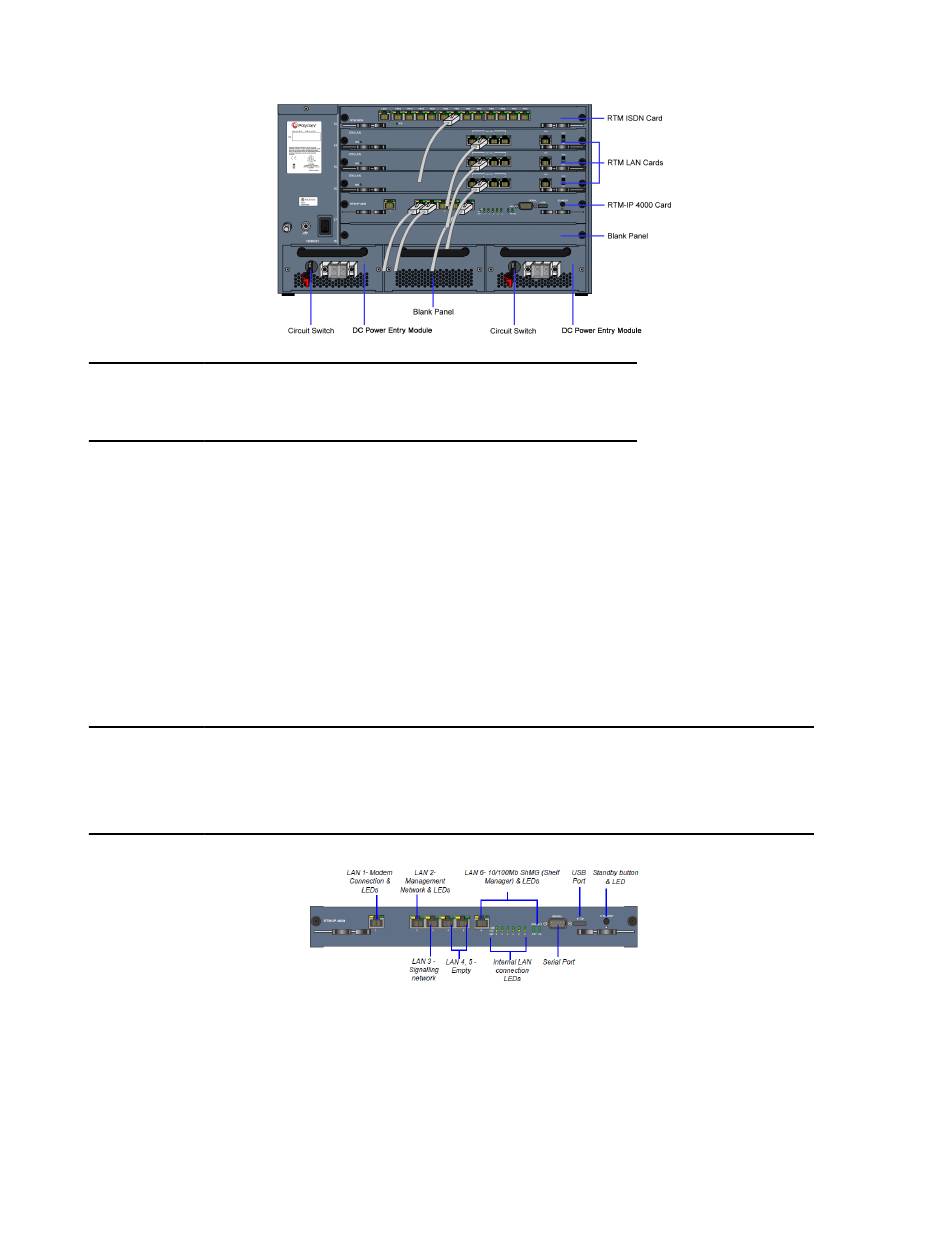

RMX 4000 RTM IP rear panel
The following table lists the components on the RTM IP 4000 card:
RTM IP 4000 Card Component Description
Polycom, Inc.
RealPresence Collaboration Server (RMX) 4000 Rear Panel
45
