Example System with DPU

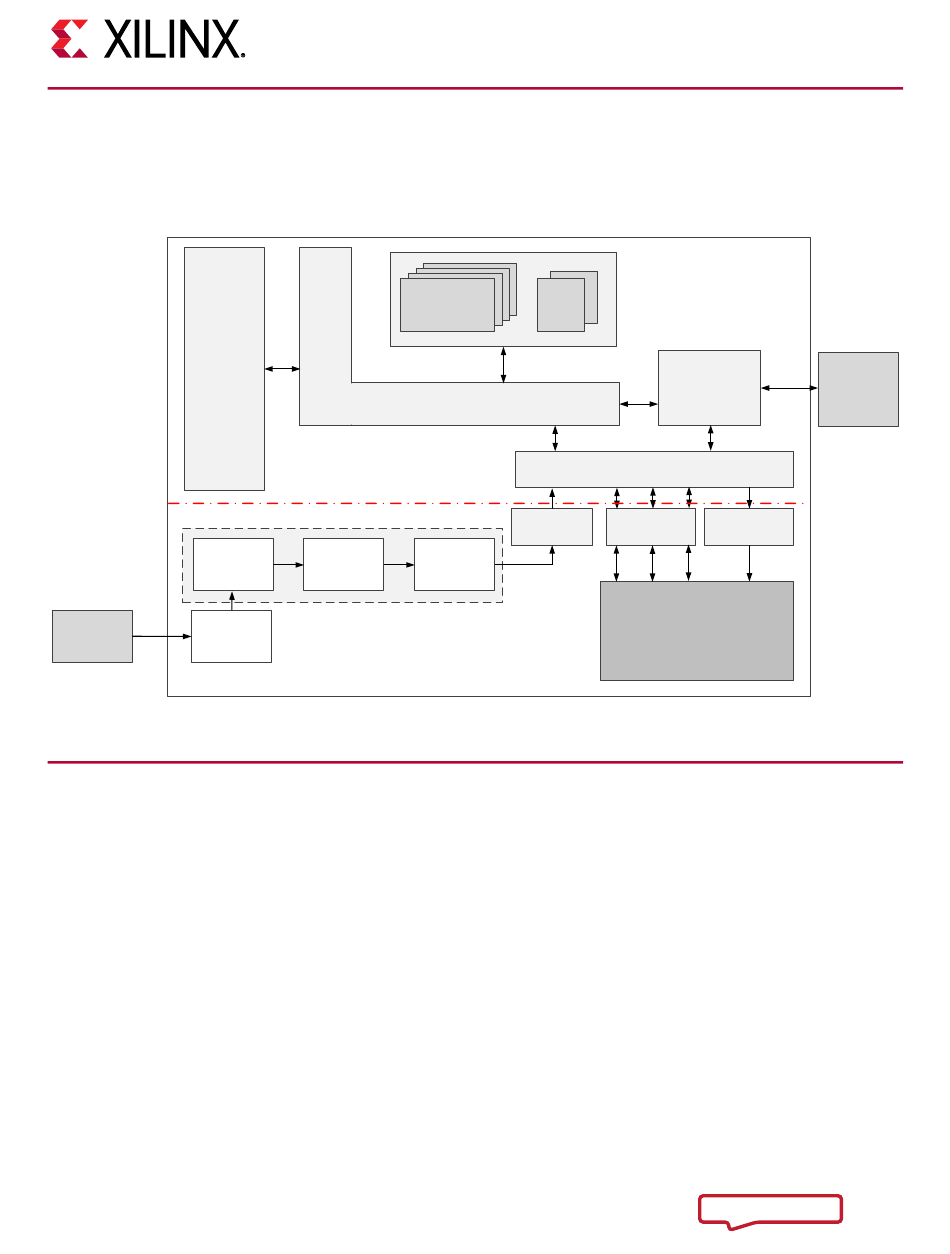

The figure below shows an example system block diagram with the Xilinx UltraScale+ MPSoC using a
camera input. DPU is integrated into the system through AXI interconnect to perform deep learning
inference tasks such as image classification, object detection, and semantic segmentation.
DisplayPort
USB3.0
SATA3.1
PCIe Gen2
GigE
USB2.0
UART
SPI
Quad SPI
NAND
SD
demosaic
MIPI
MIPI
Camera
CSI2
CSI2

DNNDK

Deep Neural Network Development Kit (DNNDK) is a full-stack deep learning toolchain for inference
with the DPU.
As shown in Figure 4, DNNDK is composed of Deep Compression Tool (DECENT), Deep Neural Network
Compiler (DNNC), Neural Network Runtime (N2Cube), and DPU Profiler.
