Chapter 6: Example Design
DPU Configuration
The version of the DPU IP integrated in the TRD is DPU_v1.3.0. The default parameters of DPU in the
reference design project is shown in the following figure.

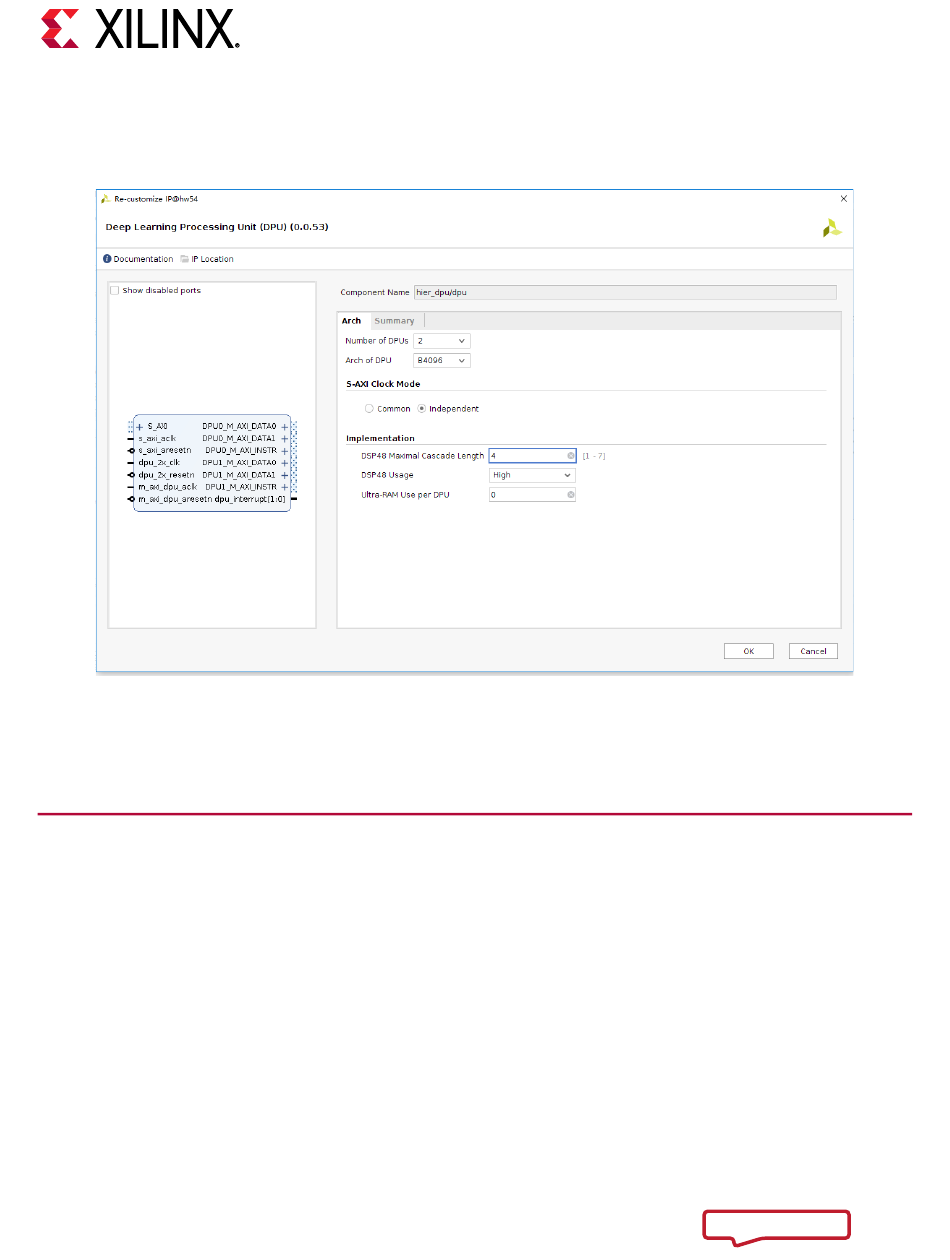

Figure 31: DPU Configuration Page
Those parameters of DPU can be configured in case of different resource requirements. For more
information about DPU and its parameters, refer to Chapter 3: DPU Configuration.

Software Design Flow

This section shows how to generate BOOT.BIN using the PetaLinux build.
PetaLinux Design Flow
Install PetaLinux
Install PetaLinux as described in the PetaLinux Tools Documentation Reference Guide (UG1144).
