3.4 Initial Startup

Contact GE Intelligent
Platforms for technical
support. Refer to the section,
Support, Service, and
Warranty.
22 GFK-2896
For public disclosure

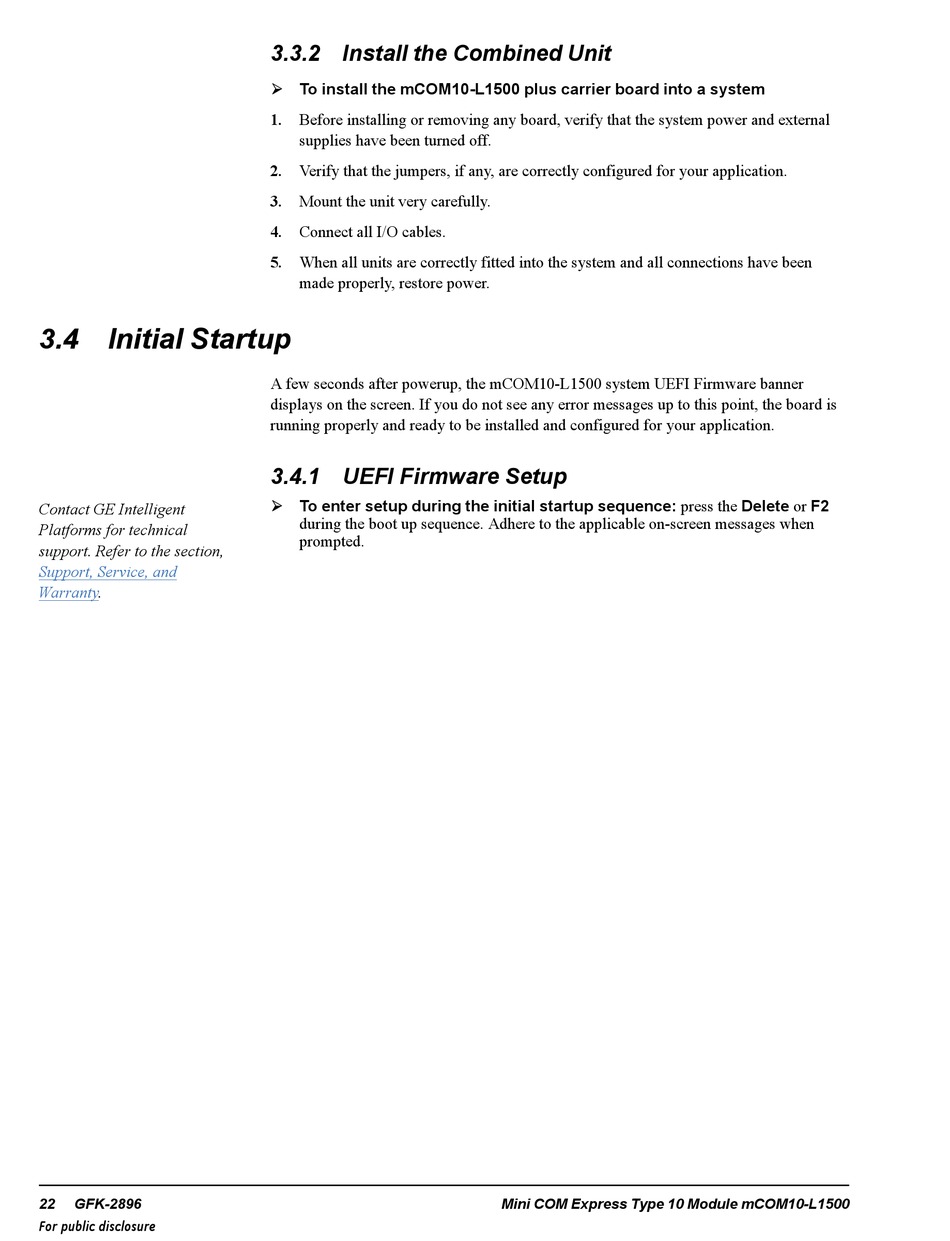

3.3.2 Install the Combined Unit

� � To install the mCOM10-L1500 plus carrier board into a system
Before installing or removing any board, verify that the system power and external
1.
supplies have been turned off.
2. Verify that the jumpers, if any, are correctly configured for your application.
3. Mount the unit very carefully.
4. Connect all I/O cables.
5. When all units are correctly fitted into the system and all connections have been
made properly, restore power.
A few seconds after powerup, the mCOM10-L1500 system UEFI Firmware banner
displays on the screen. If you do not see any error messages up to this point, the board is
running properly and ready to be installed and configured for your application.

3.4.1 UEFI Firmware Setup

� � To enter setup during the initial startup sequence: press the Delete or F2
during the boot up sequence. Adhere to the applicable on-screen messages when
prompted.
