3.3 Installation Procedures

Installation and Startup

For public disclosure

3.3.1 Install the mCOM10-L1500 onto the Carrier

Board

A carrier board with a matching connector is required. Refer to the carrier board manual.

� � To install the mCOM10-L1500 onto the carrier board

Carefully slide the mCOM10-L1500 board onto the connector on the carrier board.

Fasten the mCOM10-L1500 to the board using four M2.5 screws. Tighten the screws

with a torque of 0.6 N-m (5 in-lb).

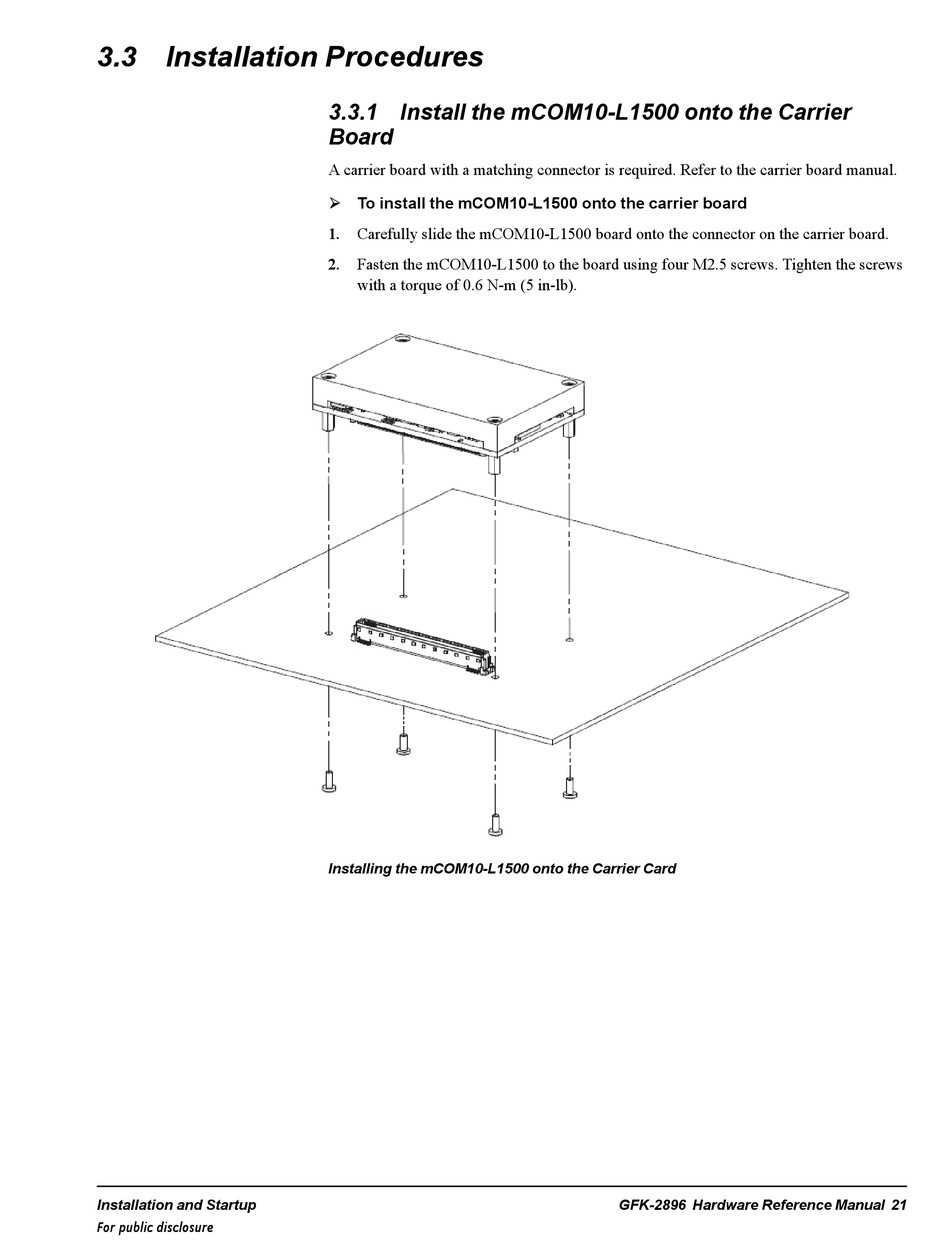

Installing the mCOM10-L1500 onto the Carrier Card

GFK-2896 Hardware Reference Manual 21
