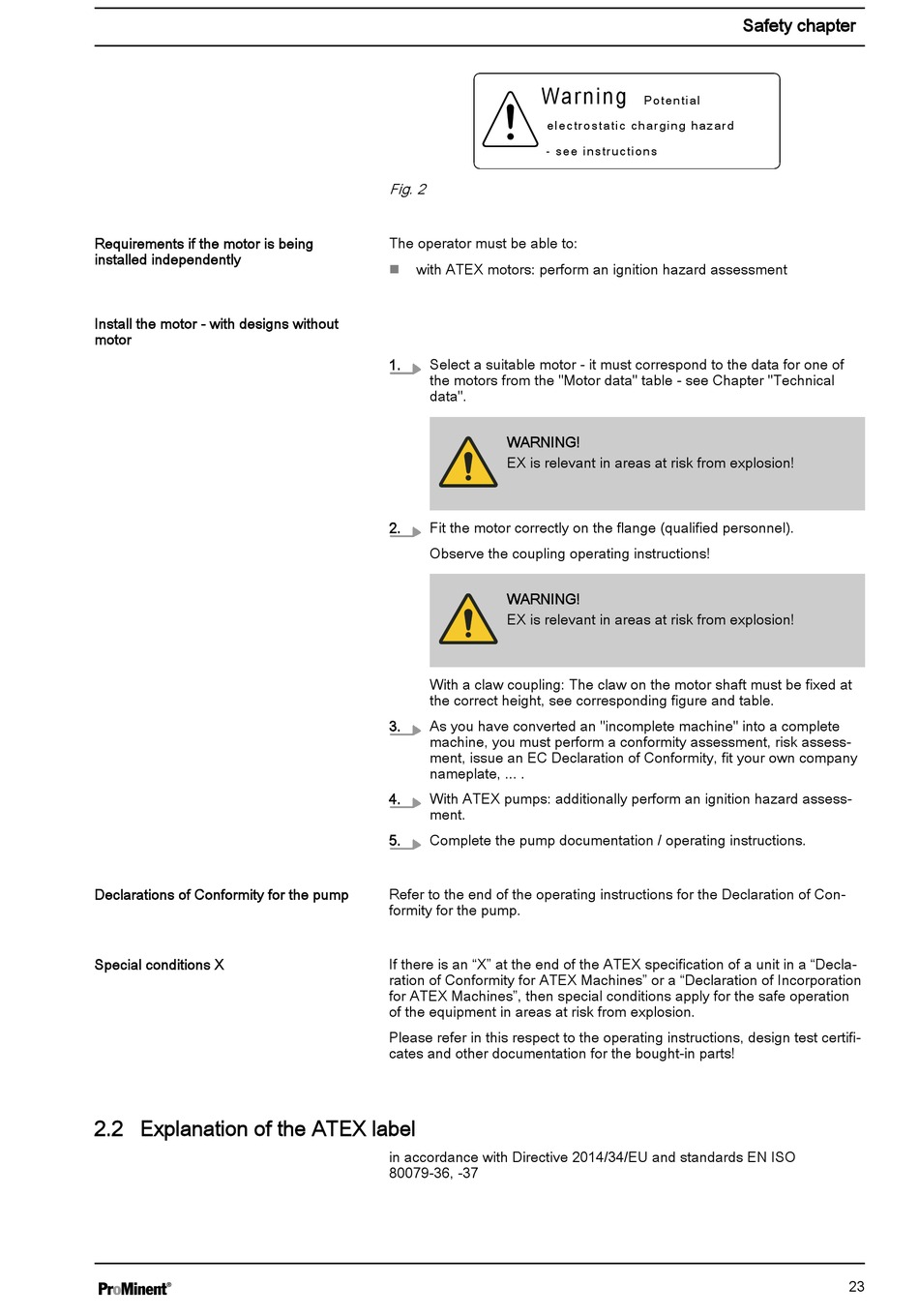

Requirements if the motor is being
installed independently
Install the motor - with designs without
motor
Declarations of Conformity for the pump
Special conditions X

2.2 Explanation of the ATEX label

W a r n i n g
e l e ct r o st a t i c c h a r g i n g h a za r d
- se e i n s t ru c t i o n s
Fig. 2
The operator must be able to:
with ATEX motors: perform an ignition hazard assessment
n
1. Select a suitable motor - it must correspond to the data for one of
the motors from the "Motor data" table - see Chapter "Technical
data".
WARNING!
EX is relevant in areas at risk from explosion!
2. Fit the motor correctly on the flange (qualified personnel).
Observe the coupling operating instructions!
WARNING!
EX is relevant in areas at risk from explosion!
With a claw coupling: The claw on the motor shaft must be fixed at
the correct height, see corresponding figure and table.
3. As you have converted an "incomplete machine" into a complete
machine, you must perform a conformity assessment, risk assess‐
ment, issue an EC Declaration of Conformity, fit your own company
nameplate, ... .
4. With ATEX pumps: additionally perform an ignition hazard assess‐
ment.
5. Complete the pump documentation / operating instructions.
Refer to the end of the operating instructions for the Declaration of Con‐
formity for the pump.
If there is an "X" at the end of the ATEX specification of a unit in a "Decla‐
ration of Conformity for ATEX Machines" or a "Declaration of Incorporation
for ATEX Machines", then special conditions apply for the safe operation
of the equipment in areas at risk from explosion.
Please refer in this respect to the operating instructions, design test certifi‐
cates and other documentation for the bought-in parts!
in accordance with Directive 2014/34/EU and standards EN ISO
80079-36, -37
Safety chapter
P o t e n t i a l
23
