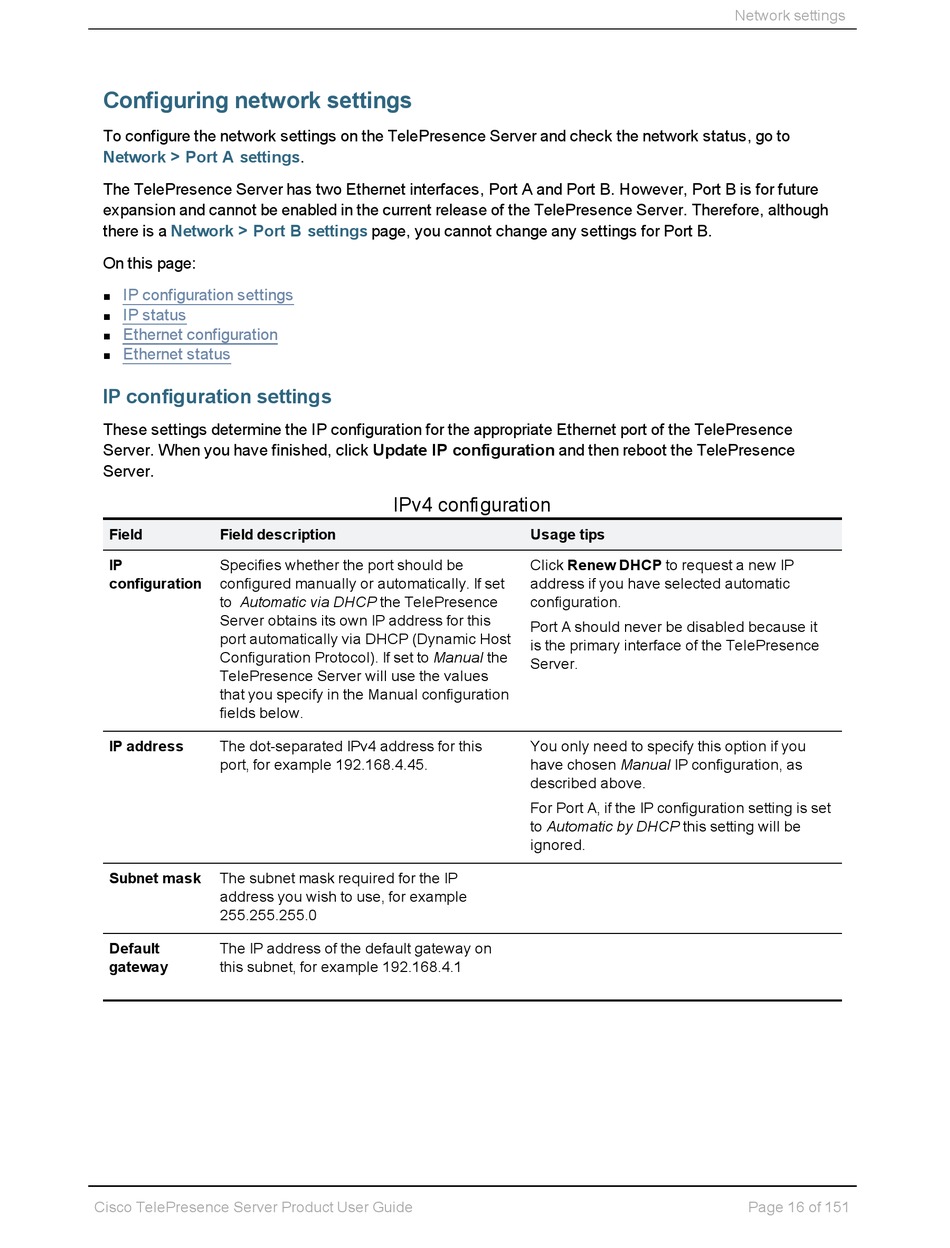

Configuring network settings

To configure the network settings on the TelePresence Server and check the network status, go to
Network > Port A settings.
The TelePresence Server has two Ethernet interfaces, Port A and Port B. However, Port B is for future
expansion and cannot be enabled in the current release of the TelePresence Server. Therefore, although
there is a Network > Port B settings
On this page:
IP configuration settings
n
IP status
n
Ethernet configuration
n
Ethernet status
n
IP configuration settings
These settings determine the IP configuration for the appropriate Ethernet port of the TelePresence
Server. When you have finished, click Update IP configuration and then reboot the TelePresence
Server.
Field Field description
IP Specifies whether the port should be
configuration configured manually or automatically. If set
to Automatic via DHCP the TelePresence
Server obtains its own IP address for this
port automatically via DHCP (Dynamic Host
Configuration Protocol). If set to Manual the
TelePresence Server will use the values
that you specify in the Manual configuration
fields below.
IP address The dot-separated IPv4 address for this
port, for example 192.168.4.45.
Subnet mask The subnet mask required for the IP
address you wish to use, for example
255.255.255.0
Default The IP address of the default gateway on
gateway this subnet, for example 192.168.4.1
Cisco TelePresence Server Product User Guide
page, you cannot change any settings for Port B.
IPv4 configuration
Usage tips
Click Renew DHCP to request a new IP
address if you have selected automatic
configuration.
Port A should never be disabled because it
is the primary interface of the TelePresence
Server.
You only need to specify this option if you
have chosen Manual IP configuration, as
described above.
For Port A, if the IP configuration setting is set
to Automatic by DHCP this setting will be
ignored.
Network settings
Page 16 of 151
