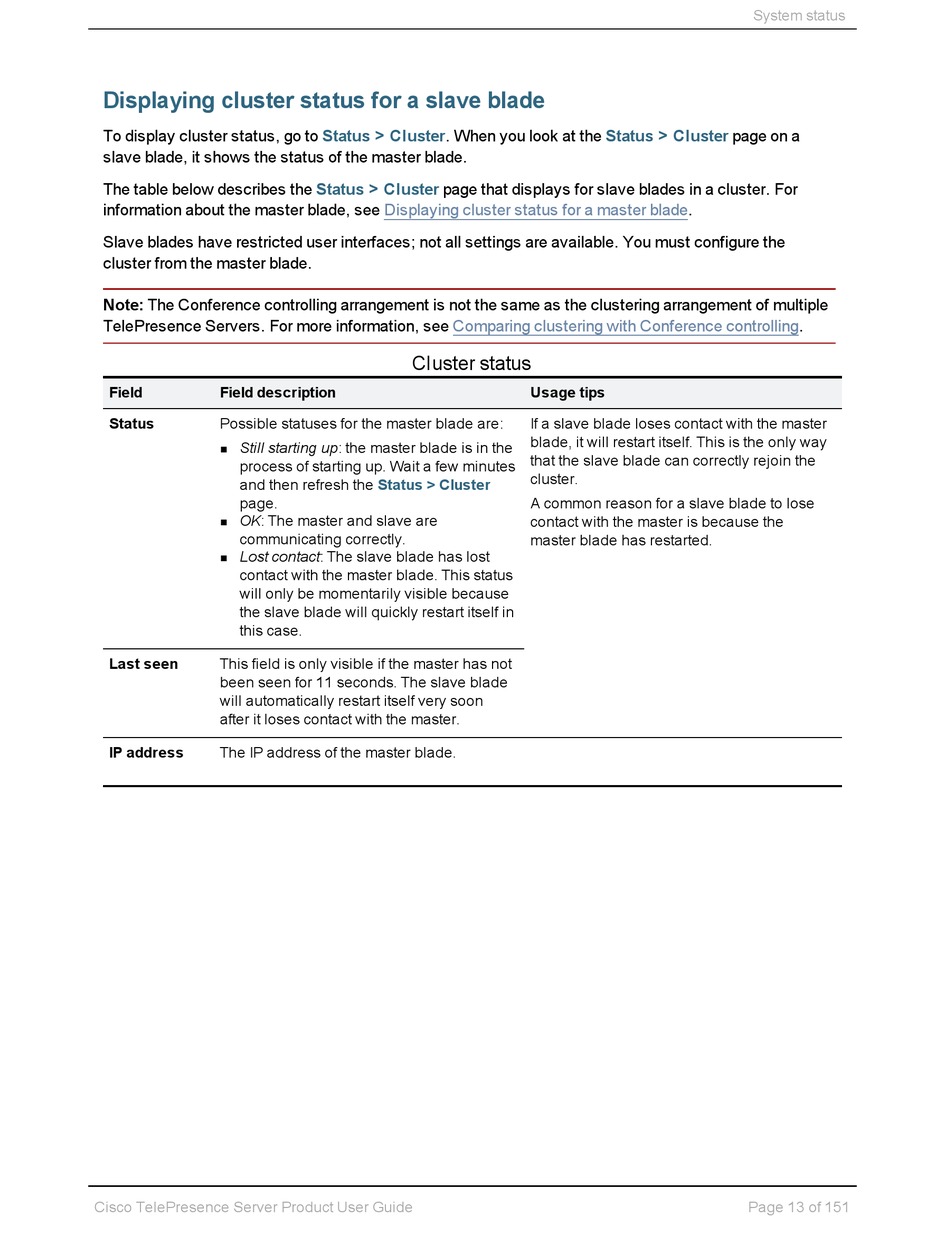

Displaying cluster status for a slave blade

To display cluster status, go to
slave blade, it shows the status of the master blade.
The table below describes the
information about the master blade, see
Slave blades have restricted user interfaces; not all settings are available. You must configure the
cluster from the master blade.
Note: The Conference controlling arrangement is not the same as the clustering arrangement of multiple
TelePresence Servers. For more information, see
Field Field description
Status Possible statuses for the master blade are:
Still starting up: the master blade is in the
n
process of starting up. Wait a few minutes
and then refresh the
page.
OK: The master and slave are
n
communicating correctly.
Lost contact: The slave blade has lost
n
contact with the master blade. This status
will only be momentarily visible because
the slave blade will quickly restart itself in
this case.
Last seen This field is only visible if the master has not
been seen for 11 seconds. The slave blade
will automatically restart itself very soon
after it loses contact with the master.
IP address The IP address of the master blade.
Cisco TelePresence Server Product User Guide
Status > Cluster. When you look at the
Status > Cluster page that displays for slave blades in a cluster. For
Displaying cluster status for a master
Comparing clustering with Conference
Cluster status
Status > Cluster
Status > Cluster
blade.
Usage tips
If a slave blade loses contact with the master
blade, it will restart itself. This is the only way
that the slave blade can correctly rejoin the
cluster.
A common reason for a slave blade to lose
contact with the master is because the
master blade has restarted.
System status
page on a
controlling.
