DC750 (Rev 1)

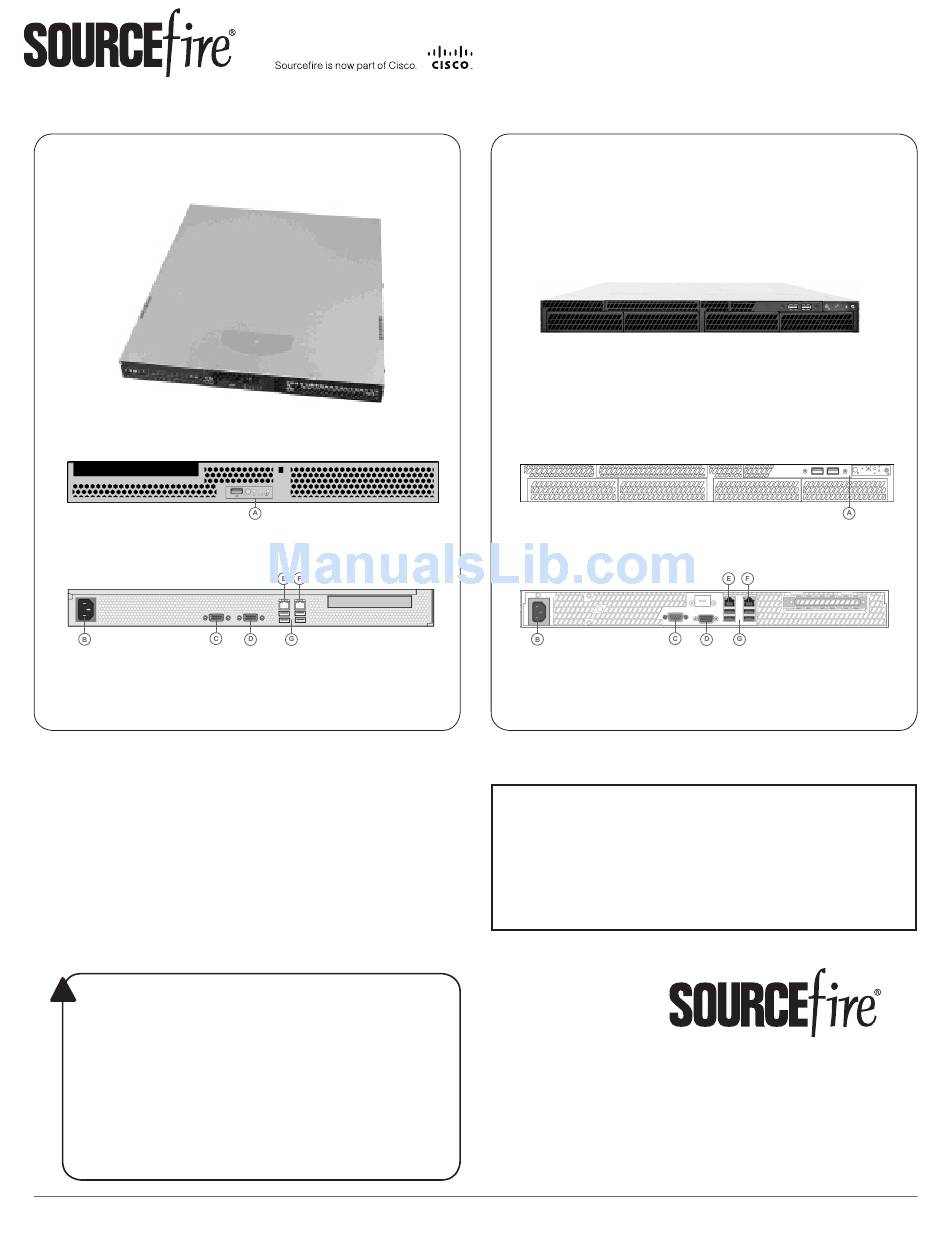

Front
(A) Front Panel Controls and USB Port
Back
B) Power Supply
(
(C) Serial Port
(D) VGA Port
Included items:
•
Sourcefire DC750 (Rev 1) or DC750 (Rev 2)
•
one power cord
•
one straight-through Cat 5e Ethernet cable
•
rack-mounting kit
Required items:
•
flathead and Phillips screwdrivers for the
rack-mounting kit
•
laptop or monitor and keyboard to connect
directly to the Defense Center
!
WARNING!
This Sourcefire Defense Center should be installed and maintained
by qualified personnel only. Keep in mind the following safety
information to avoid system damage or personal injury:
•
Remove all factory packaging before using the Defense Center.
•
Provide adequate ventilation to prevent overheating. Do not
cover or block vents, or otherwise enclose the Defense Center.
•
The Defense Center must be properly grounded when
connecting power to the power outlet.
•
At all times, keep the chassis area free from dust.
•
Lifting the chassis for rack installation may require two people,
as the unit is heavy.
•
To avoid electrical shock, do not open or remove the chassis
covers or metal parts without proper instruction.
©2014 Cisco and/or its affiliates. All rights reserved.
(E) Management Interface
(F) Alternate eStreamer Interface
(G) USB Ports
QUICK START GUIDE
Defense Center 750
DC750 (Rev 2)
Front
(A) Front Panel Controls and USB Ports
Back
B) Power Supply
(
(C) Serial Port
(D) VGA Port
Thank you for choosing Sourcefire.
Before installing this Defense Center, download and
follow the instructions in the Sourcefire Support
Welcome Kit (https://support.sourcefire.com)
to get started with Sourcefire Support, and to set up
your Customer Center account.
Page 1 of 4
(E) Management Interface
(F) Alternate eStreamer Interface
(G) USB Ports
