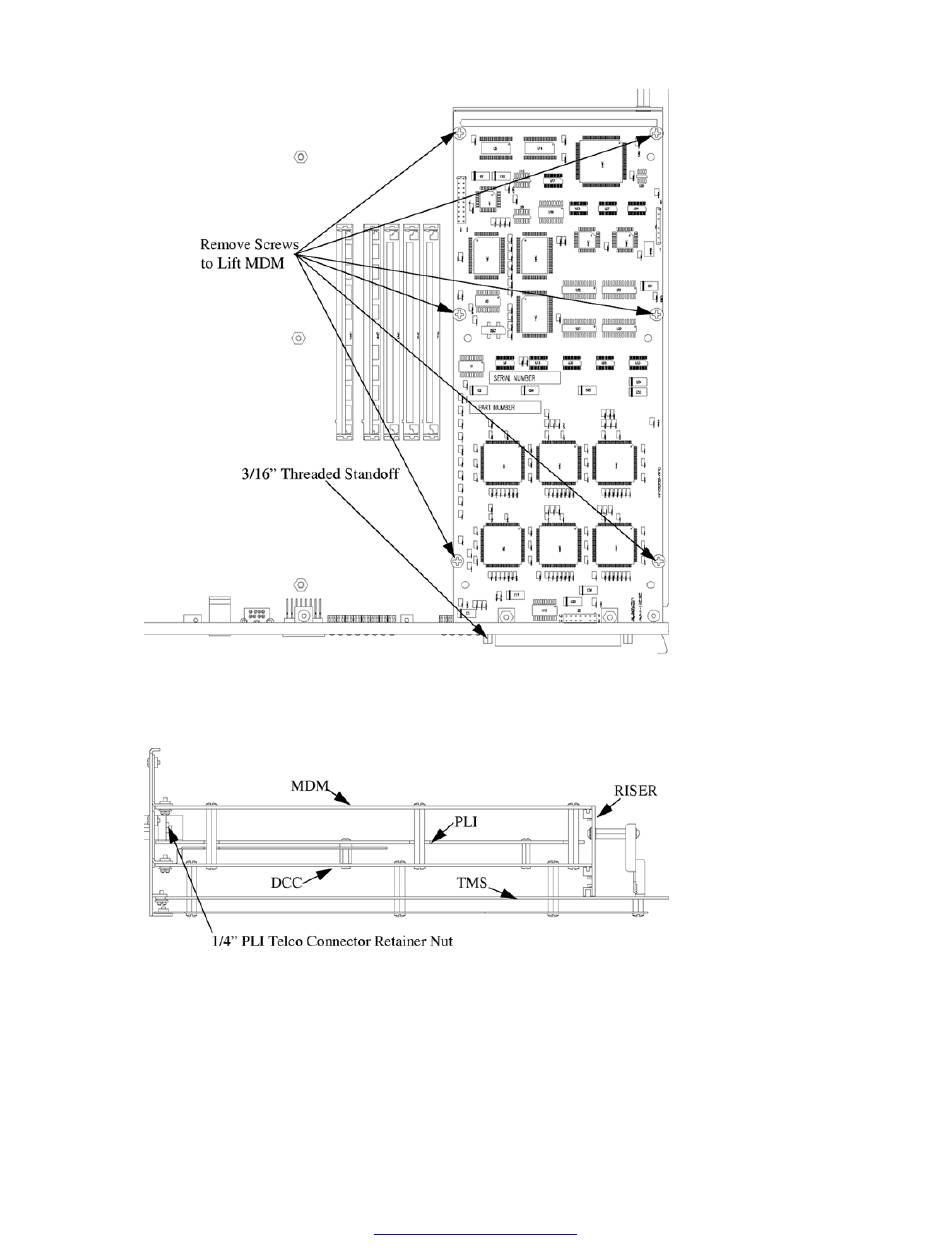

Figure 56: MDM Mounting Screws
3. After removing the screws, carefully lift the MDM module connector from the mating
connector in the TMS riser board.
Figure 57: Side View of Module Assembly.
4. Remove the screws and Connector Retainers.
October 2014
Avaya Media Processing Server 1000 Hardware Installation and Maintenance
Comments? infodev@avaya.com
Removing and Replacing a TMS or MDM
219
