• Place the oscilloscope in infinite persistence mode to acquire all noise over a long time
period (many seconds or minutes). If the design operates in many different modes,
using different resources in different amounts, these various conditions and modes
should be in operation while the oscilloscope is acquiring the noise measurement.
• Place the oscilloscope in averaging mode and trigger on a known aggressor event. This
can show the amount of noise correlated with the aggressor event (any events
asynchronous to the aggressor are removed through averaging).
Power system noise measurements should be made at a few different AP SoC locations to
ensure that any local noise phenomena are captured.
Figure 3-8 shows an averaged noise measurement taken at the V
design. In this case, the trigger was the clock for an I/O bus interface sending a 1-0-1-0
pattern at 250 Mb/s.
X-Ref Target - Figure 3-8

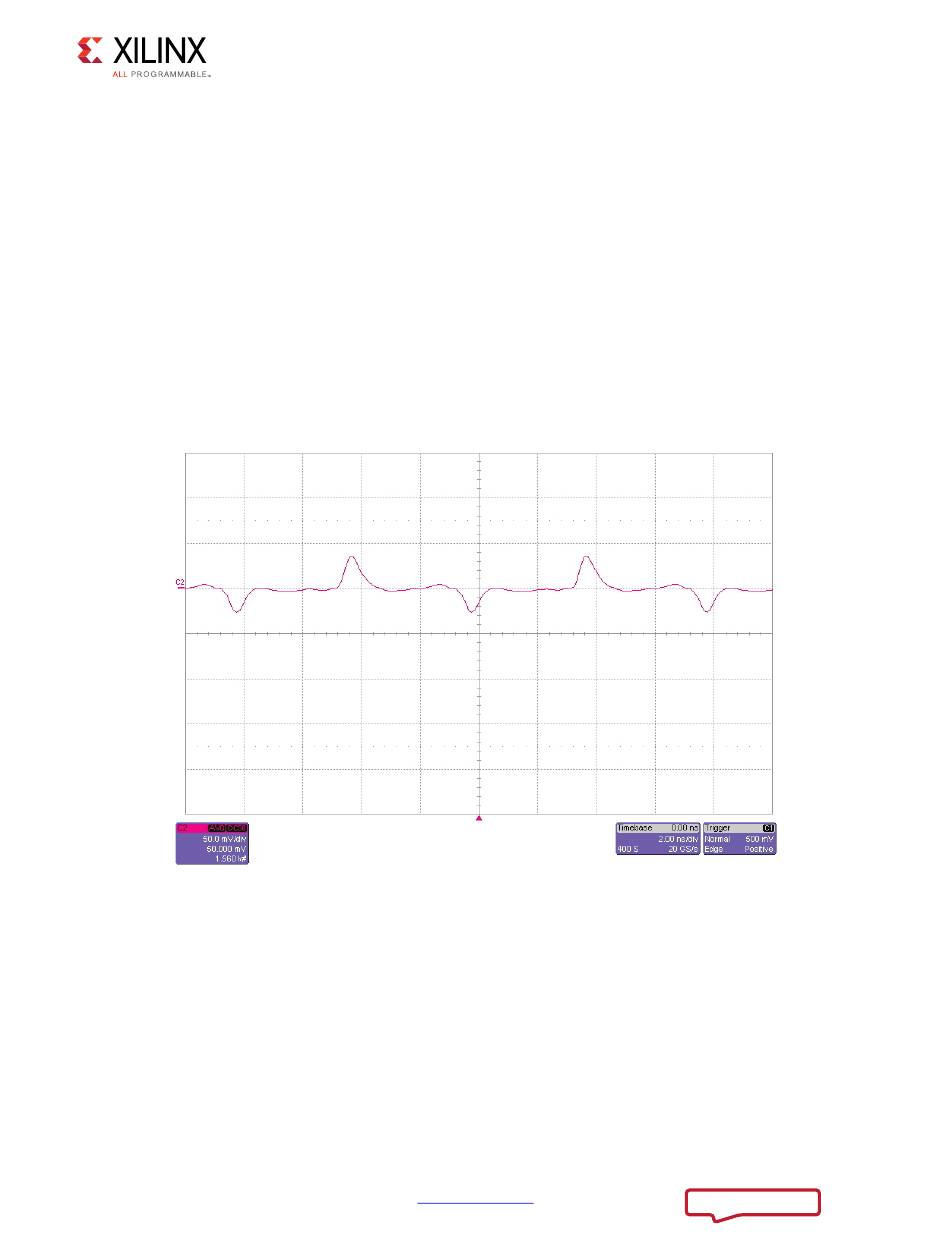

Figure 3-8: Averaged Measurement of V
Figure 3-9 shows an infinite persistence noise measurement of the same design with a
wider variety of I/O activity. Because the infinite persistence measurement catches all noise
events over a long period, both correlated and non-correlated with the primary aggressor,
all power system excursions are shown.
