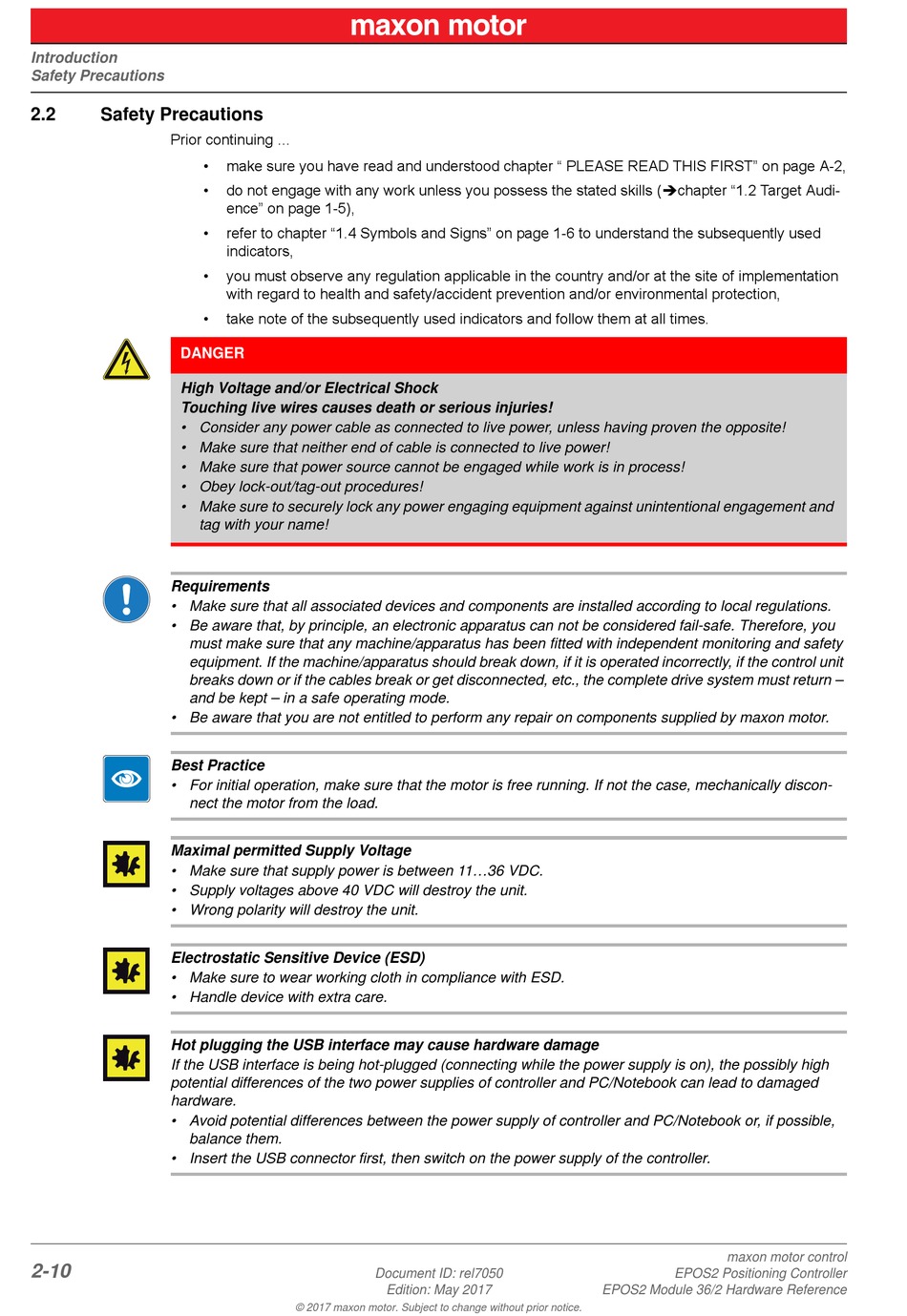

2.2 Safety Precautions
Prior continuing ...
DANGER
High Voltage and/or Electrical Shock
Touching live wires causes death or serious injuries!
• Consider any power cable as connected to live power, unless having proven the opposite!
• Make sure that neither end of cable is connected to live power!
• Make sure that power source cannot be engaged while work is in process!
• Obey lock-out/tag-out procedures!
• Make sure to securely lock any power engaging equipment against unintentional engagement and
tag with your name!
Requirements
• Make sure that all associated devices and components are installed according to local regulations.
• Be aware that, by principle, an electronic apparatus can not be considered fail-safe. Therefore, you
must make sure that any machine/apparatus has been fitted with independent monitoring and safety
equipment. If the machine/apparatus should break down, if it is operated incorrectly, if the control unit
breaks down or if the cables break or get disconnected, etc., the complete drive system must return –
and be kept – in a safe operating mode.
• Be aware that you are not entitled to perform any repair on components supplied by maxon motor.
Best Practice
• For initial operation, make sure that the motor is free running. If not the case, mechanically discon-
nect the motor from the load.
Maximal permitted Supply Voltage
• Make sure that supply power is between 11...36 VDC.
• Supply voltages above 40 VDC will destroy the unit.
• Wrong polarity will destroy the unit.
Electrostatic Sensitive Device (ESD)
• Make sure to wear working cloth in compliance with ESD.
• Handle device with extra care.
Hot plugging the USB interface may cause hardware damage
If the USB interface is being hot-plugged (connecting while the power supply is on), the possibly high
potential differences of the two power supplies of controller and PC/Notebook can lead to damaged
hardware.
• Avoid potential differences between the power supply of controller and PC/Notebook or, if possible,
balance them.
• Insert the USB connector first, then switch on the power supply of the controller.
