Pin
B27
B28
B29
B30
B31
B32
Table 4-18

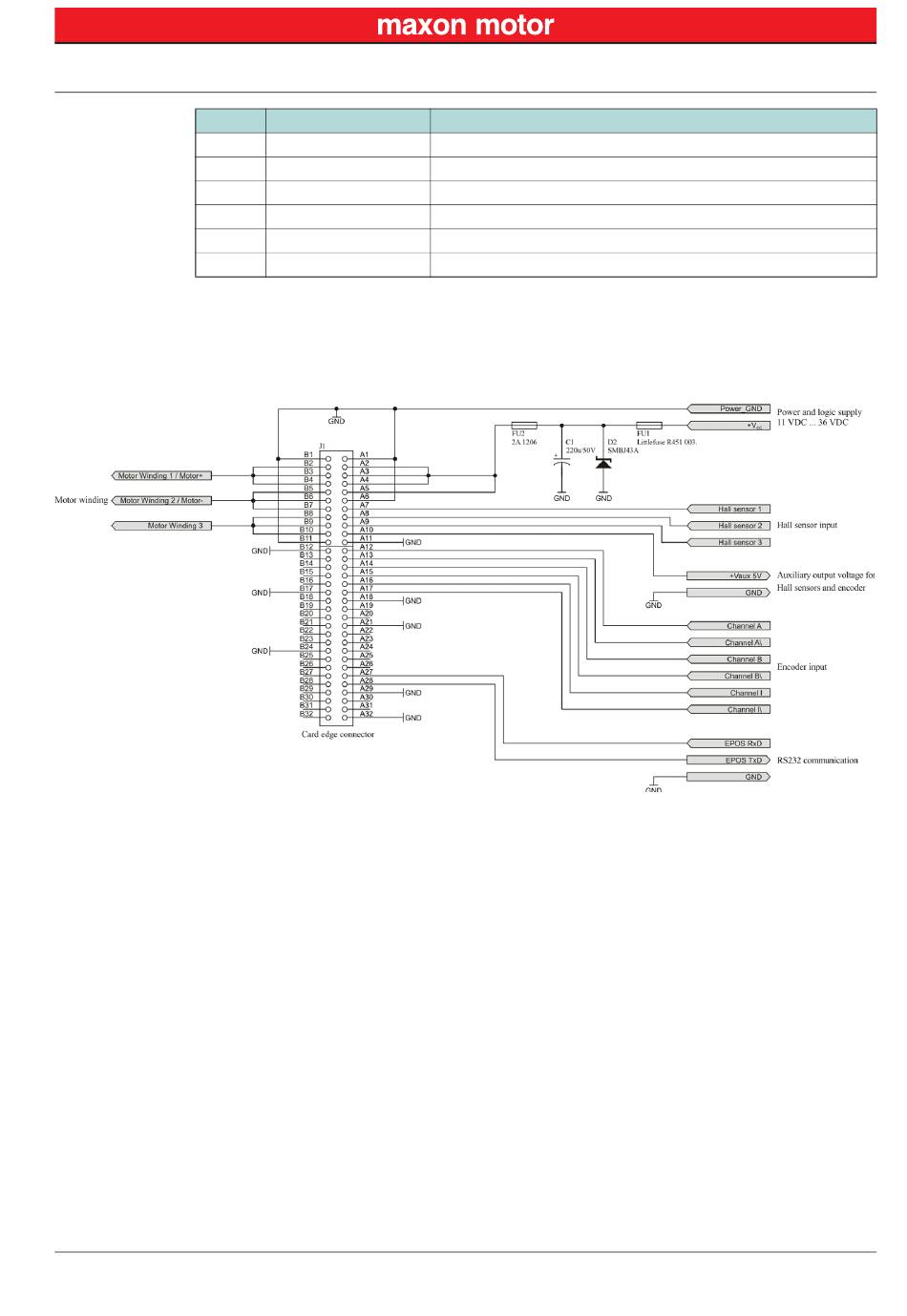

4.2

Minimum external Wiring

Figure 4-7
maxon motor control
EPOS2 Positioning Controller
EPOS2 Module 36/2 Hardware Reference
Signal
CAN ID 3 CAN ID 3 (valence = 4)
CAN ID 4 CAN ID 4 (valence = 8)
CAN ID 5 CAN ID 5 (valence = 16)
CAN ID 6 CAN ID 6 (valence = 32)
CAN ID 7 CAN ID 7 (valence = 64)
Auto bit rate Automatic bit rate detection of CAN bus
EPOS2 Module 36/2 – Pin Assignment Array B
Minimum external Wiring
Document ID: rel7050
Edition: May 2017
© 2017 maxon motor. Subject to change without prior notice.
Description
4-19
