3.3

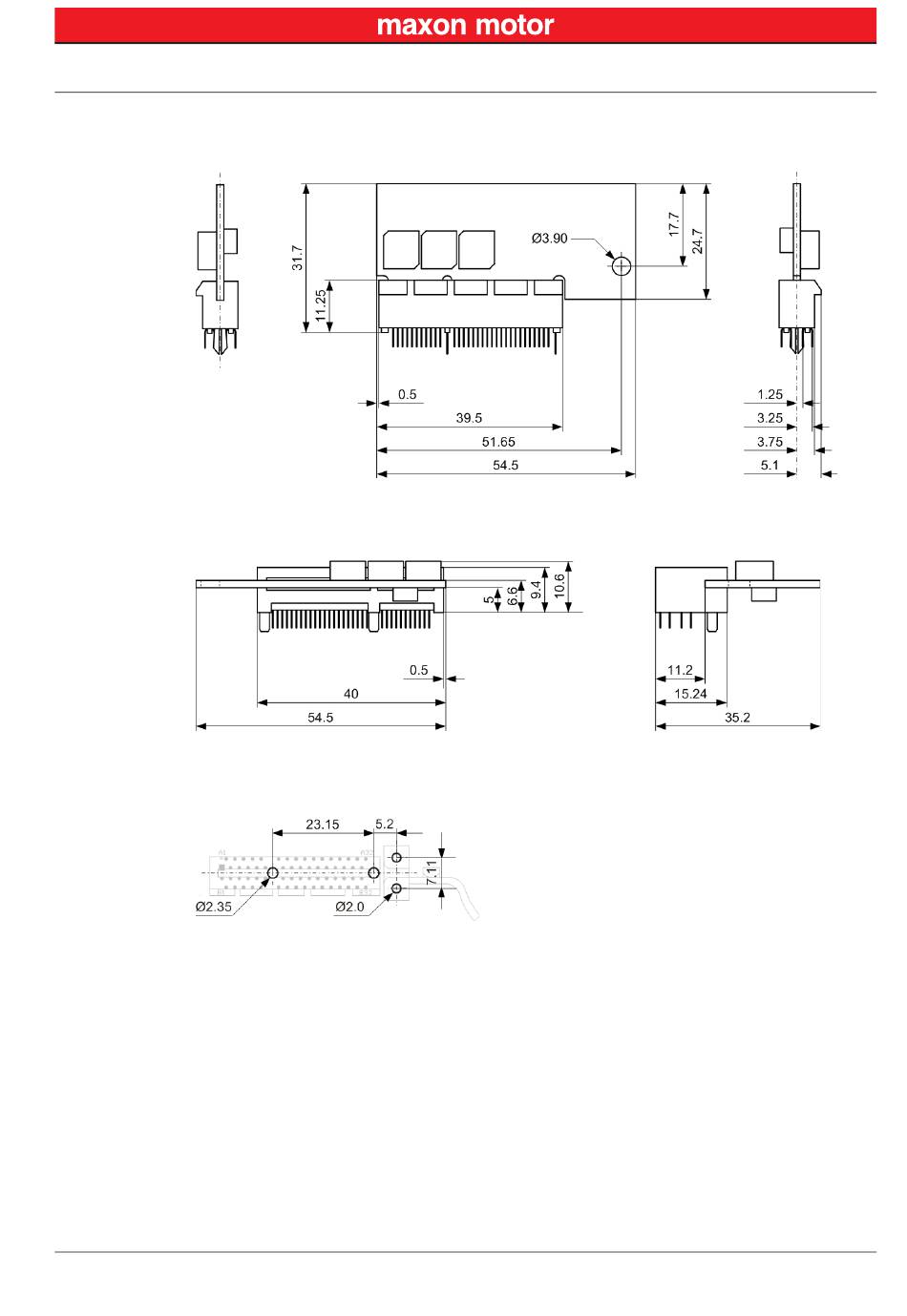

Dimensional Drawings

V
ERTICAL
Figure 3-2
H
ORIZONTAL
Figure 3-3
R
ETAINER
Figure 3-4
maxon motor control
EPOS2 Positioning Controller
EPOS2 Module 36/2 Hardware Reference
C
ONNECTOR
Dimensional Drawing (with vertical Connector) [mm]
C
ONNECTOR
Dimensional Drawing (with horizontal connector Meritec 983172-064-2MMF) [mm]
Footprint of Retainer (Meritec 983172-064-2MMF connector) [mm]
Document ID: rel7050
Edition: May 2017
© 2017 maxon motor. Subject to change without prior notice.
3-13
