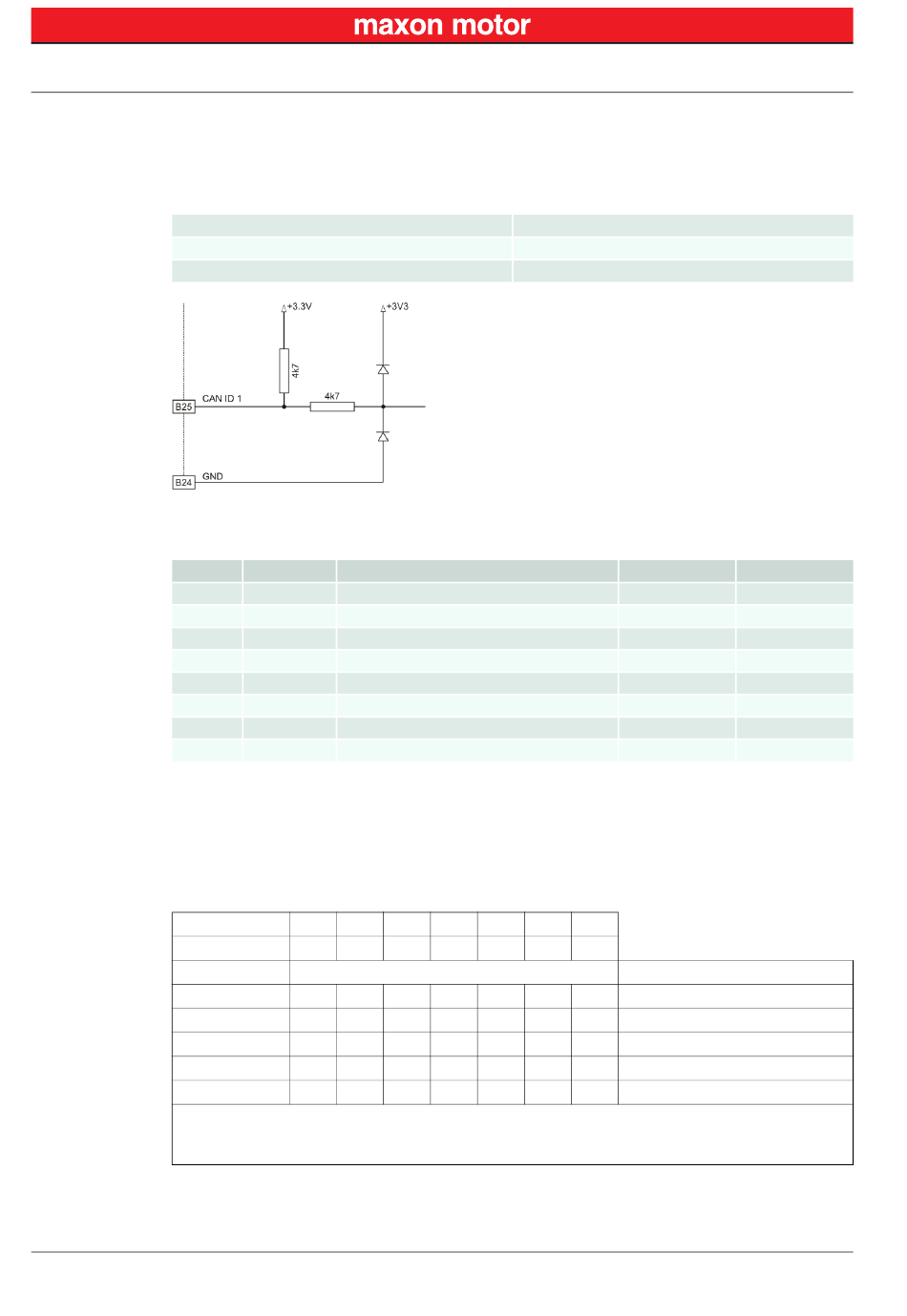

4.13 CAN Configuration

4.13.1 CAN ID (Node Address)

The CAN ID is set with input lines CAN ID1...CAN ID7. Addresses (1...127) may be coded using binary
code.
Logic 1
Logic 0
Internal pull-up resistor
Figure 4-22
Pin
B24
B25
B26
B27
B28
B29
B30
B31
Table 4-19
The set CAN ID (node address) can be observed by adding the valences of all inputs connected exter-
nally to GND.
E
XAMPLES
Use following table as a (non-concluding) guide:
CAN ID/Switch
Legend:
* 1 = CAN ID input line externally connected to GND
** 0 = CAN ID input line open or externally connected to +3.3 VDC
Table 4-20
4-34
CAN ID Input Circuit
Signal Description
GND Ground for CAN ID settings
CANID1 CAN ID 1
CANID2 CAN ID 2
CANID3 CAN ID 3
CANID4 CAN ID 4
CANID5 CAN ID 5
CANID6 CAN ID 6
CANID7 CAN ID 7
CAN ID – Binary Code Values
:
1 2
1 2
Valence
CAN ID
1 1* 0**
2 0 1
32 0 0
35 1 1
127 1 1
CAN ID – Examples
