Connections

Status LEDs

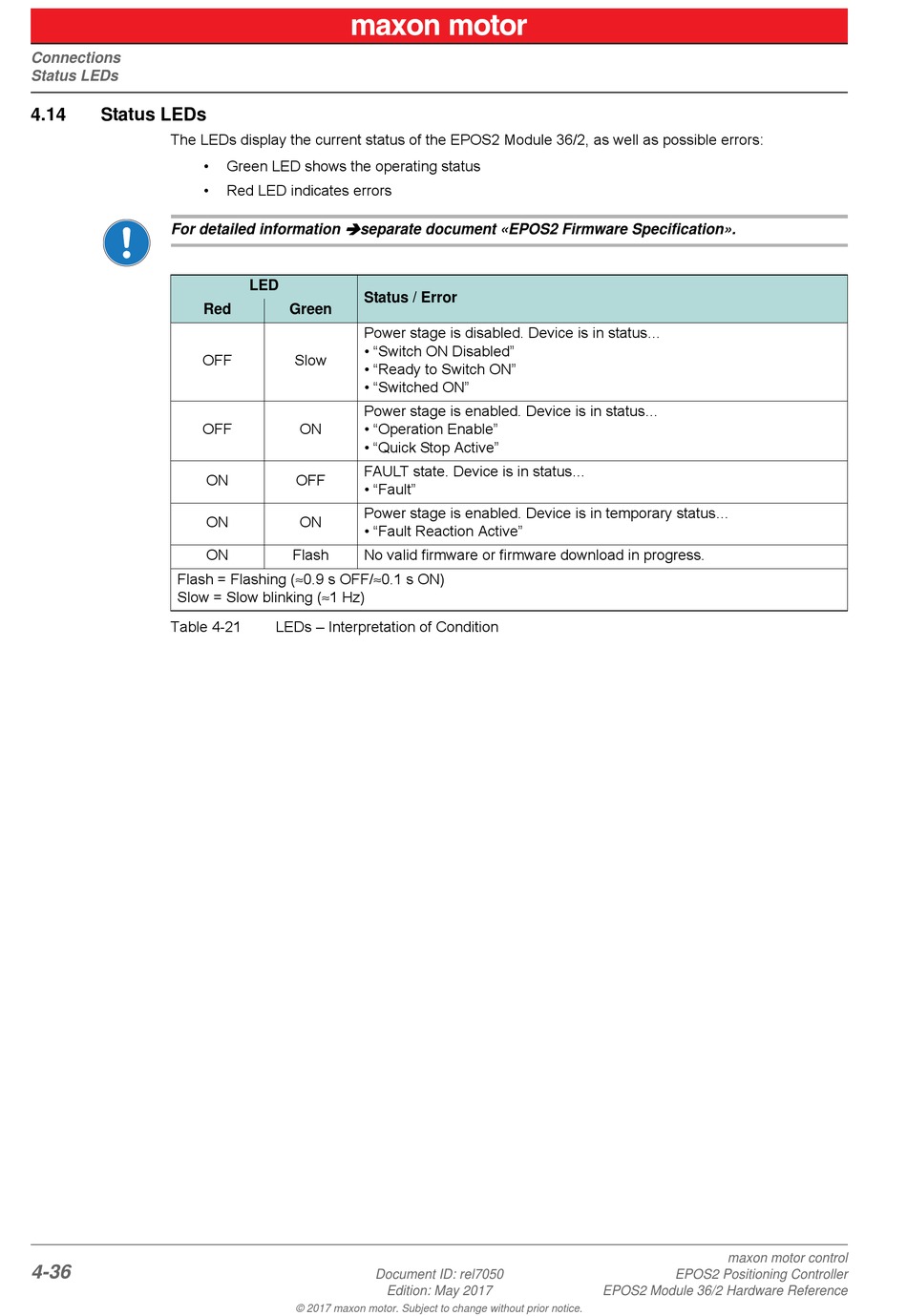

4.14 Status LEDs
The LEDs display the current status of the EPOS2 Module 36/2, as well as possible errors:
For detailed information
Flash = Flashing (≈0.9 s OFF/≈0.1 s ON)
Slow = Slow blinking (≈1 Hz)
Table 4-21
4-36
• Green LED shows the operating status
• Red LED indicates errors

separate document «EPOS2 Firmware Specification».
LED
Status / Error
Red Green
Power stage is disabled. Device is in status...
• "Switch ON Disabled"
OFF Slow
• "Ready to Switch ON"
• "Switched ON"
Power stage is enabled. Device is in status...
OFF ON • "Operation Enable"
• "Quick Stop Active"
FAULT state. Device is in status...
ON OFF
• "Fault"
Power stage is enabled. Device is in temporary status...
ON ON
• "Fault Reaction Active"
ON Flash No valid firmware or firmware download in progress.
LEDs – Interpretation of Condition
© 2017 maxon motor. Subject to change without prior notice.
Document ID: rel7050
Edition: May 2017
maxon motor control
EPOS2 Positioning Controller
EPOS2 Module 36/2 Hardware Reference
