This initial configuration allows you to access the device configuration console through the Telnet IP protocol. To do
this, follow these steps:

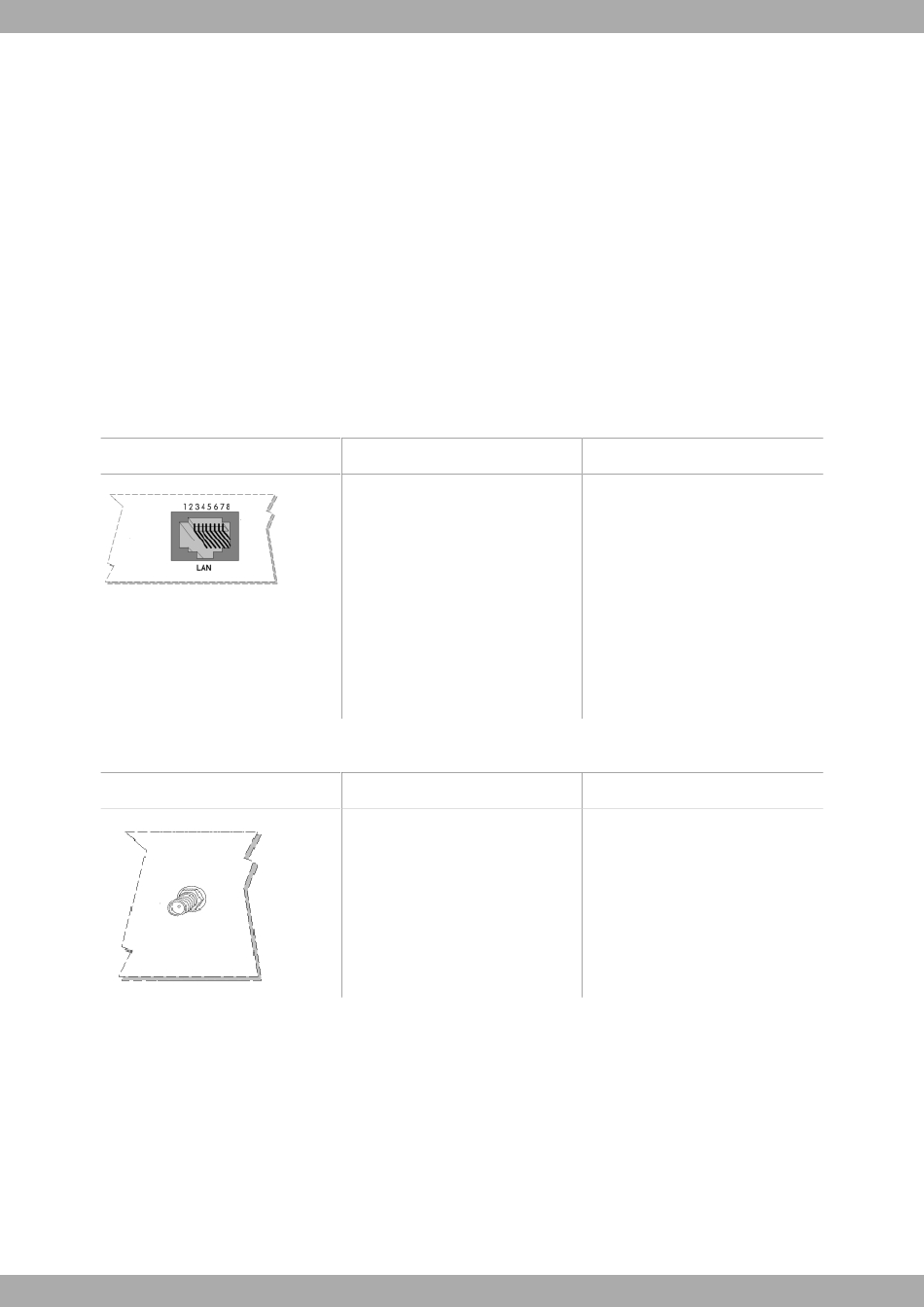

A.3 Connectors

A.3.1 LAN Connector
RJ45 LAN
A.3.2 WWAN/Cell Connector (female)
RF
Regesta Lite AU
• Configure the IP terminal (normally a PC) Ethernet interface with an IP ad-
dress within the range [192.168.1.2, 192.168.1.254] and with mask
255.255.255.0. E.g. 192.168.1.2, 255.255.255.0.
• Connect the IP terminal Ethernet interface to any of the Regesta Lite AU Eth-
ernet Switch ports (LAN1..2) through the Ethernet cable (RJ45) provided.
• Initiate a Telnet session from the IP terminal to IP address 192.168.1.1
(Regesta Lite AU default address).
• The default configuration does not ask for credentials (user/password) to ac-
cess the console.
RJ45 PIN
1
2
3
4
5
6
7
8
PIN
Internal
External
LAN
Tx+ (input)
Tx- (input)
Rx+ (output)
--
--
Rx- (output)
--
--
ANT
RF in/out
GND
