3 Components and Power Supply
3.1.1.1 LEDs

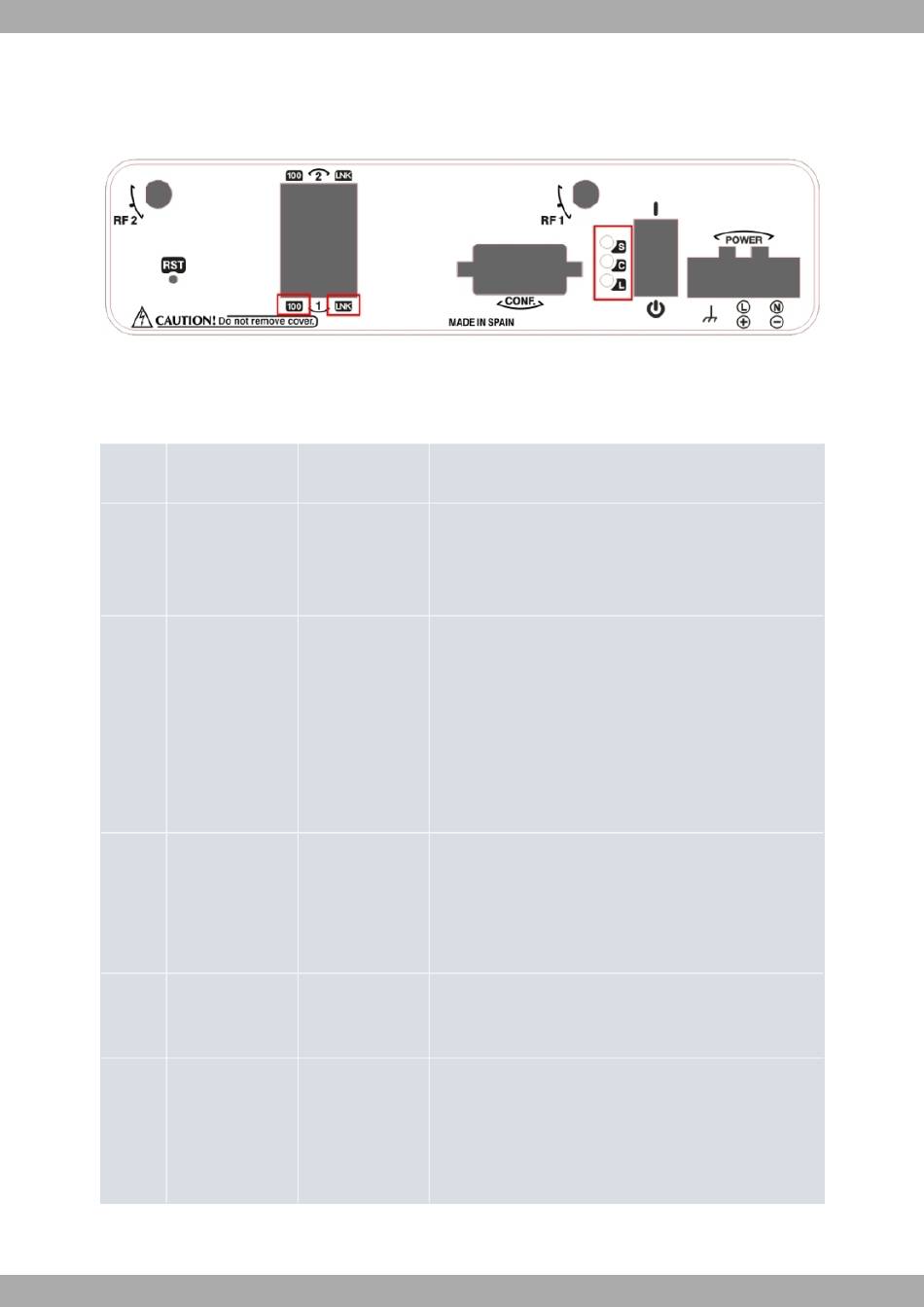

The LEDs are located, as shown in the following figure, on the router front panel:
Front Panel LEDs
Fig. 3:
While the device is in startup mode, LED "L" lights up in green. Once the device has started up, the LEDs indicate
the following:
LEDs
LED Associated Inter-
face
Cellular interface
S
Cellular interface
C
Cellular interface
L
Associated to each
100
Ethernet switch
connector
(LAN1..LAN2)
Associated to each
LNK
Ethernet switch
connector
(LAN1..LAN2)
6
Status Description
Green SK1 operating SIM. This processes traffic through the carrier
for the SIM installed in this tray.
SK2 operating SIM. This processes traffic through the carrier
Amber
for the SIM installed in this tray.
Red Cellular interface is unavailable, not installed or not registered.
The device has registered in the network and is in process of
Amber
establishing the PPP protocol.
The device is registered, PPP is established and it can send
Green
IP traffic through the PPP interface.
• Steady: Data is not being transferred.
• Flashing: Data is being transferred.
Green Coverage level above -90dBm.
Yellow Coverage level between -90dBm and -100dBm.
Red Coverage level below -100dBm.
Off Cellular interface is not active.
Amber ON -> Connection at 100Mbps.
OFF -> Connection at 10Mbps.
Green ON -> Ethernet connection (link) established:
• Steady: Data is not being transferred.
• Flashing: Data is being transferred.
OFF -> Ethernet connection is not established
