Teldat S.A.
Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the Regesta Lite AU router and its compon-
ents. This information includes:
3.1 Components
3.1.1 Front Panel

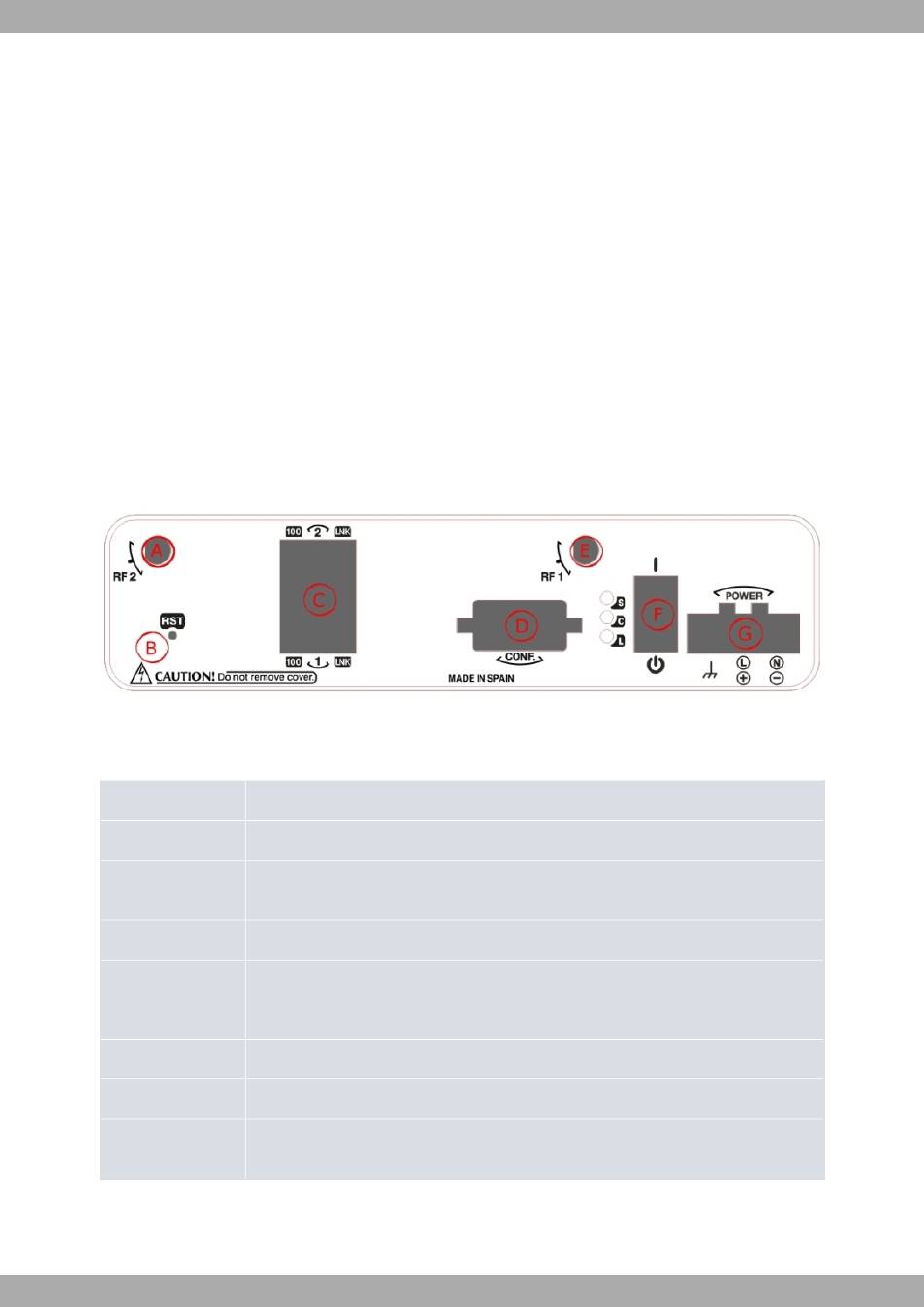

The following figure shows the front panel.
Front Panel
Fig. 2:
The front panel elements are as follows:
Front Panel Elements
Item
A
B
C
D
E
F
G
In addition to the connectors, the front panel also contains a set of LEDs that provide information on the state of the
router.
Regesta Lite AU
• Components
• Assembly instructions
• Power supply
• RST button
• Data connection
• SIM card installation
Description
RF2. WWAN antenna connector.
RST. Reset button. For further information on how the reset button works, please see
Button
on page 11
2-port Fast Ethernet Switch
CONF. DB9 connector providing access to the device local console for configuration and
monitoring purposes. (This connector can also be used as an RS-232 asynchronous DCE
serial port).
RF1. WWAN antenna connector.
I/O. ON/OFF power switch, position I for ON and position O to switch it OFF.
POWER. Power connection. For further information on the power connection, please see
section
Power Source
on page 10.
3 Components and Power Supply
RST
5
