Replacing the left AlienFX side-panel connector
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in
in
After working inside your
www.dell.com/regulatory_compliance.
Procedure

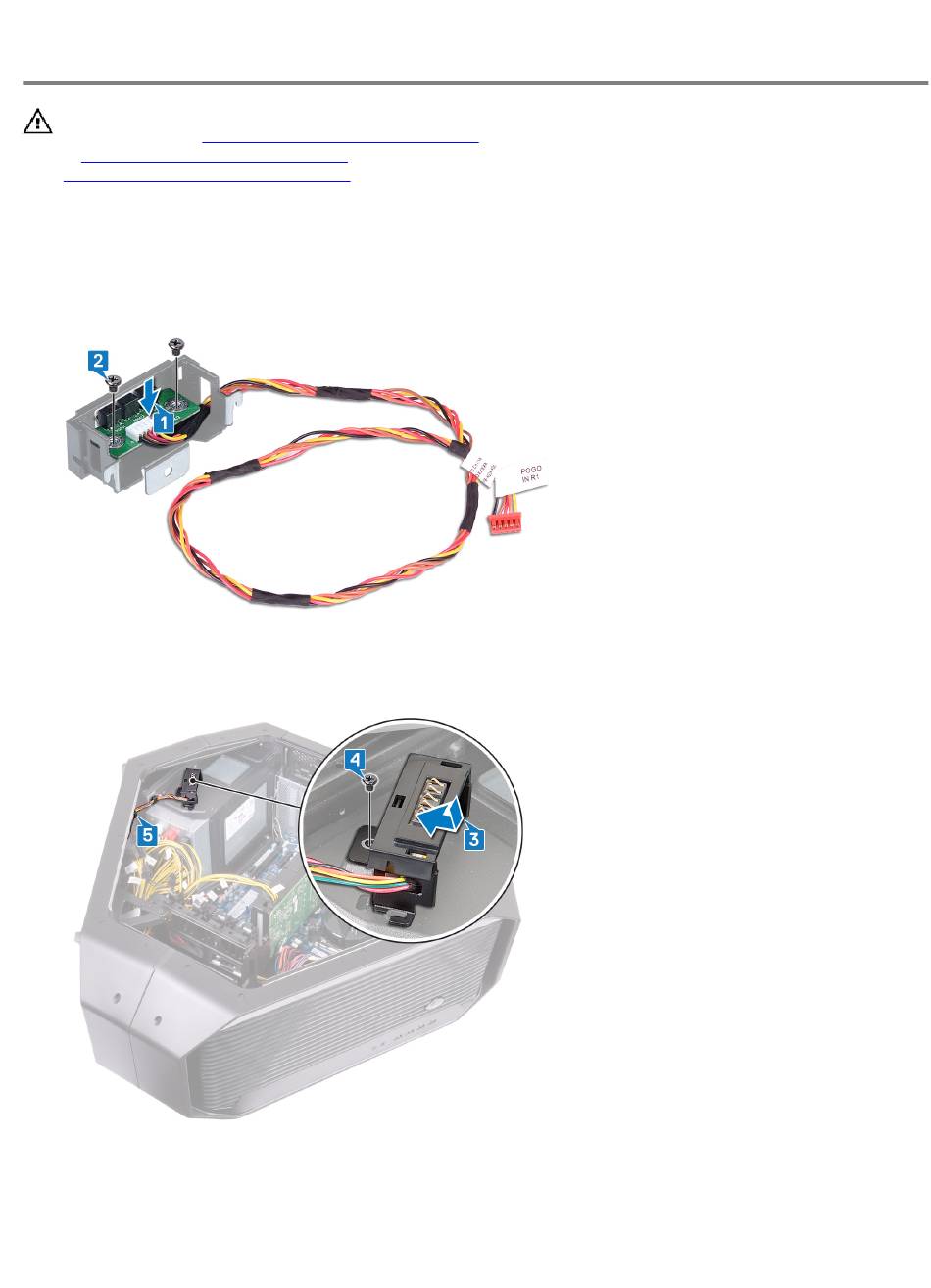

1
Route the cable through the slot on the bracket and align the screw holes on the left AlienFX side-panel connector with
the screw holes on the bracket.
2
Replace the two screws (#6-32x6) that secure the AlienFX side-panel connector to the bracket.
3
Align the screw hole on the left AlienFX side-panel connector with the screw hole on the chassis.
4
Replace the screw (#6-32x6) that secures the left AlienFX side-panel connector to the chassis.
5
Route the AlienFX side-panel cable through the routing guides on the chassis
6
Turn the chassis over.
7
Route the cable through the securing clip and through the slot on the chassis.
48
Before working inside your
computer. For more safety best practices, see the Regulatory Compliance home page at
computer. After working inside your computer, follow the instructions
