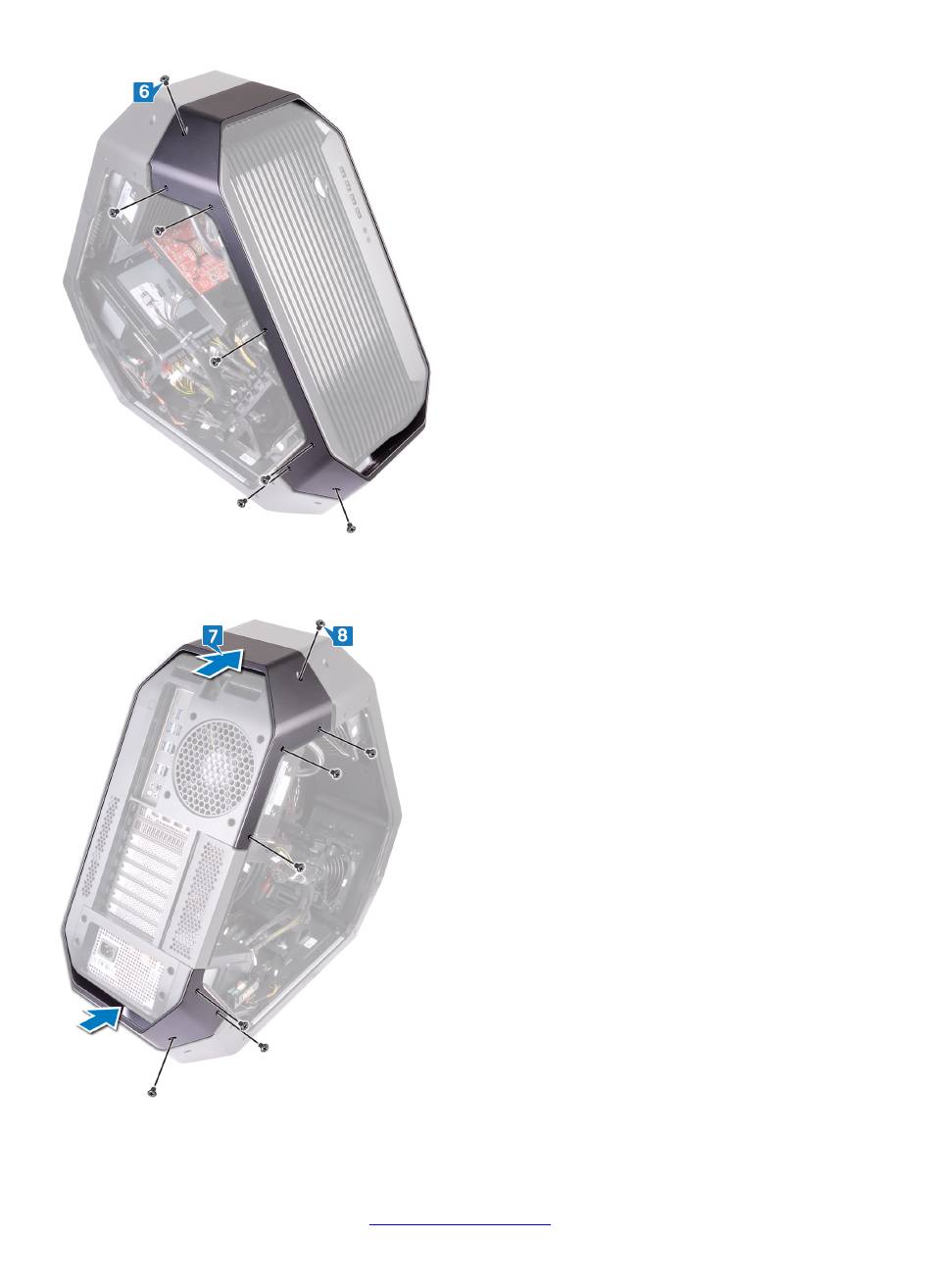

6
Replace the seven screws (#6-32x6.5) that secure the front-handle bar to the right side of the chassis.
7
Align and place the rear-handle bar on the slot and snap the rear-handle bar to the chassis.
8
Replace the seven screws (#6-32x6.5) that secure the rear-handle bar to the left side of the chassis.
9
Replace the seven screws (#6-32x6.5) that secure the rear-handle bar to the right side of the chassis.
Post-requisites
1
Replace the left and right side-panels. See
106
"Replacing the side
panels".
