7

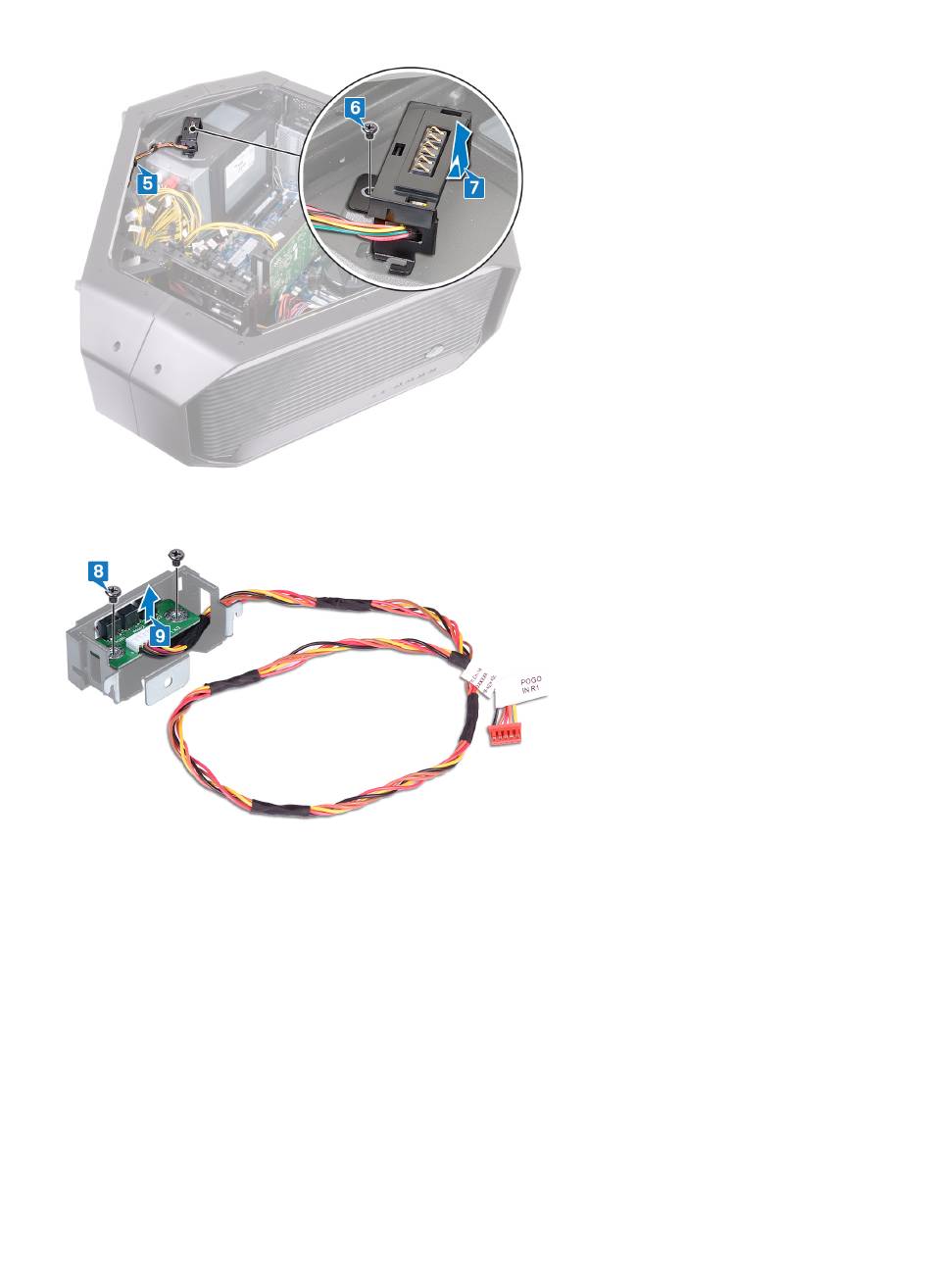

Remove the left AlienFX side-panel connector assembly from the chassis.
8
Remove the two screws (#6-32x6) that secure the AlienFX side-panel connector to the bracket.
9
Remove the cable routing through the slot on the bracket and lift the left AlienFX side-panel connector off the bracket.
47
