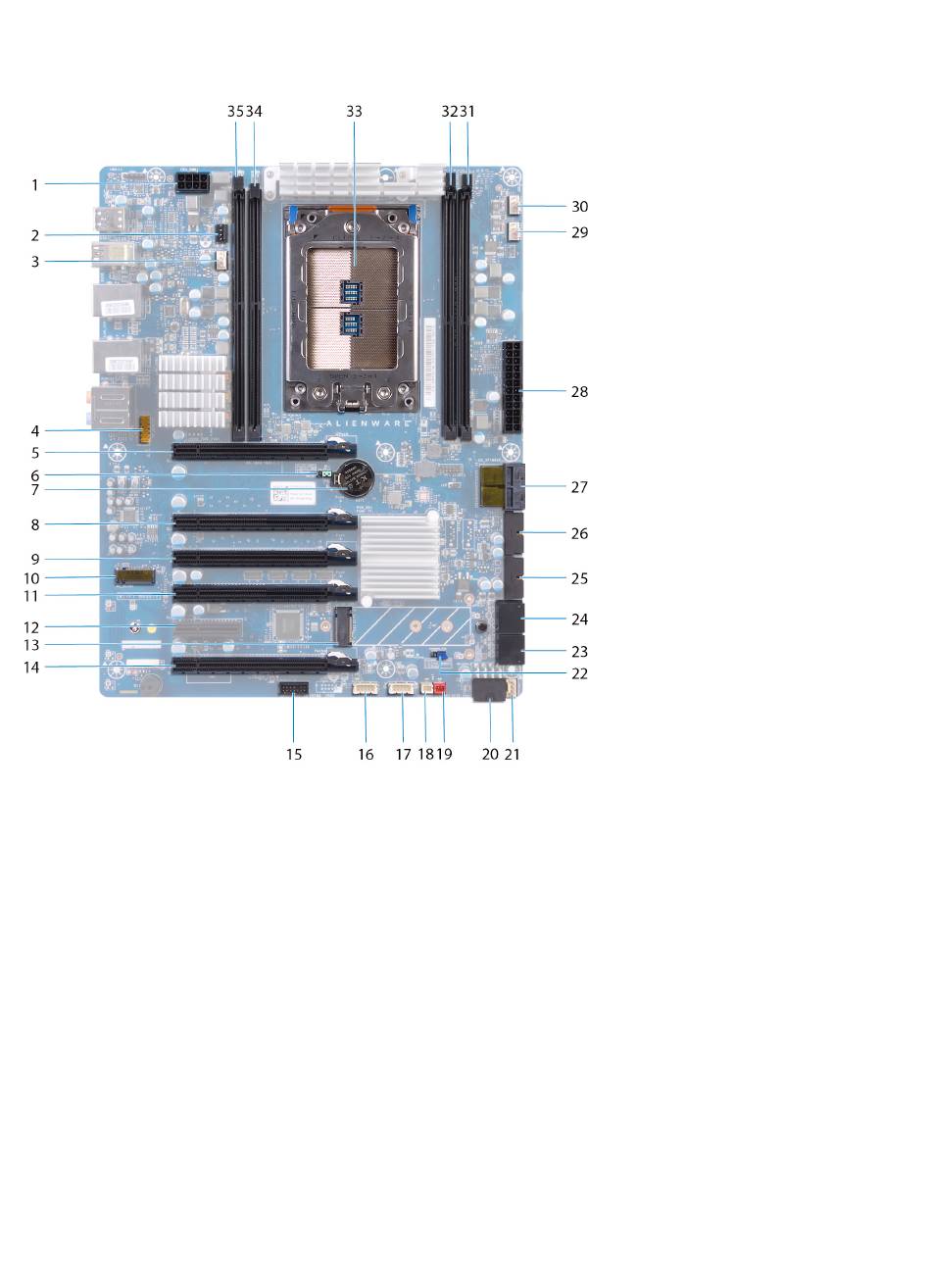

System-board components
1
processor-power connector (CPU PWR1)
3
processor liquid cooling-assembly fan (LCM_FAN1)
5
PCI-Express slot (SLOT1)
7
coin-cell battery socket (BAT1)
9
PCI-Express slot (SLOT4)
11
PCI-Express slot (SLOT5)
13
solid-state drive slot (M2_SSD1)
15
low pin count debug header (LPC1)
17
USB connector (USB1)
19
drive-bay heat-sensor connector (SENSOR1)
21
PCI-Express fan 1 connector (PCI_FAN1)
23
SATA drive connector (HDD _SATA_3_4)
25
USB connector (USB3_MB2)
2
processor liquid-cooling assembly pump-fan connector
(PUMP_FAN1)
4
audio connector (FP_AUDIO1)
6
CMOS reset jumper (CMOS_CLR)
8
PCI-Express slot (SLOT3)
10
WLAN connector (M2_WLAN1)
12
PCI-Express slot (SLOT6)
14
PCI-Express slot (SLOT7)
16
LED Power Switch (PANEL1)
18
chassis heat-sensor connector (SENSOR2)
20
PCI-Express power connector (PCIE_PWR1)
22
password reset jumper (PW_CLR)
24
SATA drive connector (HDD_SATA_1_2)
26
USB connector (USB3_MB1)
