SWG100 BIOGAS User Manual

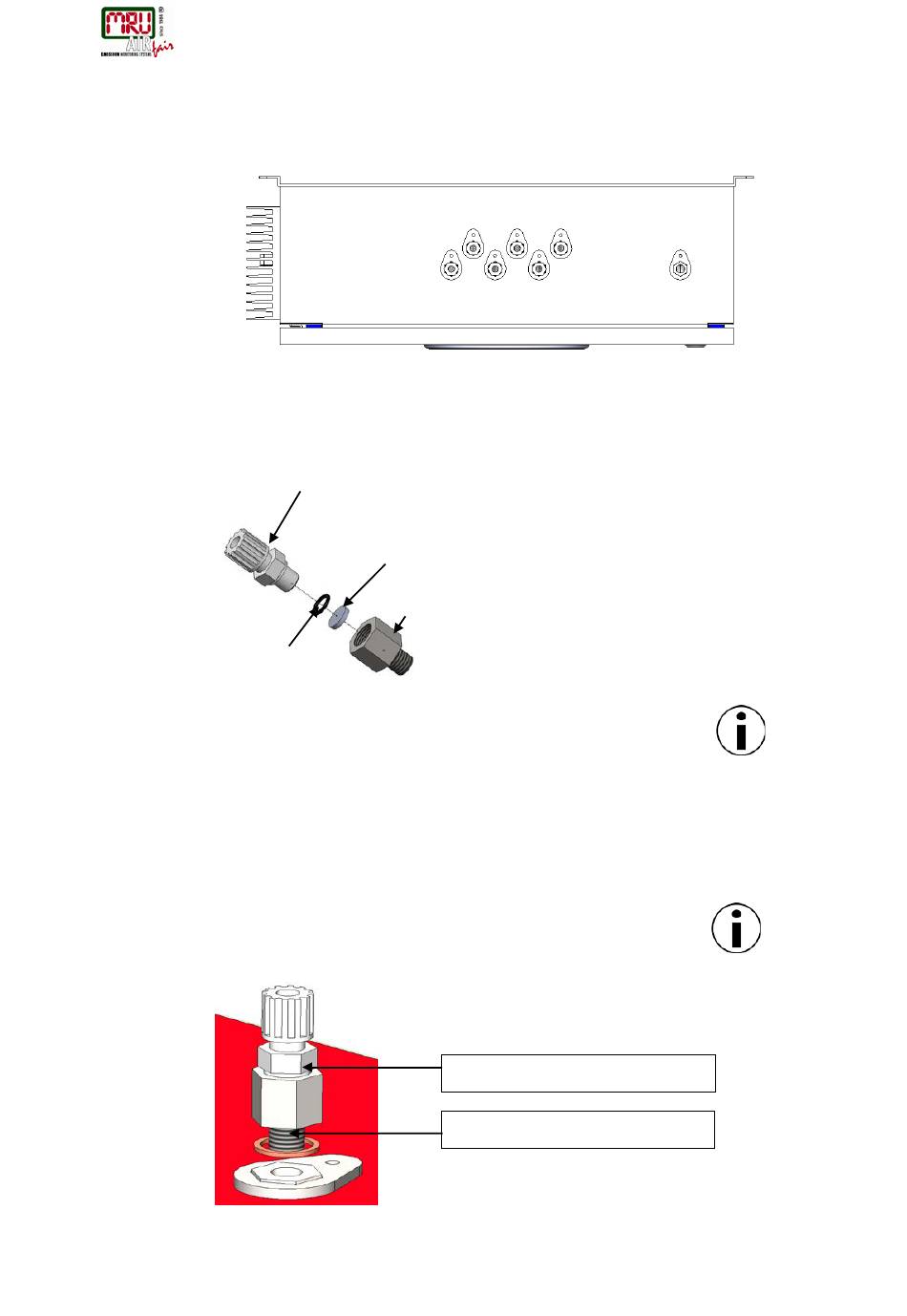

Top-side
On the top of the analyzer are the sample gas-inlets. Sample gas inlet 1 is the default gas inlet
port. The analyzer may be equipped with up to 3 additional sample gas inlet ports from different
sampling sites. The following sketch shows the position of the different sample gas inlets.
18.1.

Flow restrictor orifice (#65114)

To measure any biogas applications, the analyzer can be equipped with a flow restrictor orifice
(see picture).
Male connector G1/8"
Sinter filter
Nozzle
O-ring
Picture: Flow restrictor orifice with intern filter.
Information
The copper seal of the nozzle is intended only for single use.
Connection the flow restrictor orifice with the gas inlets
Fitting type: G 1/8 inner ISO parallel thread for tubing with 6/4 mm flexible tube.
Information
Use PTFE strips to tighten the fitting inside the thread!
G1/8" out ISO parallel thread
G1/8" ISO parallel thread
The flow restrictor orifices are installed on the sample gas inlets and on the calibration gas inlet.
38 / 108 MRU GmbH, D-74172 Neckarsulm
