For indoor installation:
Ensure that the analyzer is installed on a dry and clean place. Be sure that the room is
permanently vented with fresh air (forced ventilation).
Connect the VENT gas-outlet of the device to ambient by using adequate tube with min Ø8mm
ID.
17.6.

Correct tubing of the SWG100BIO-Ex

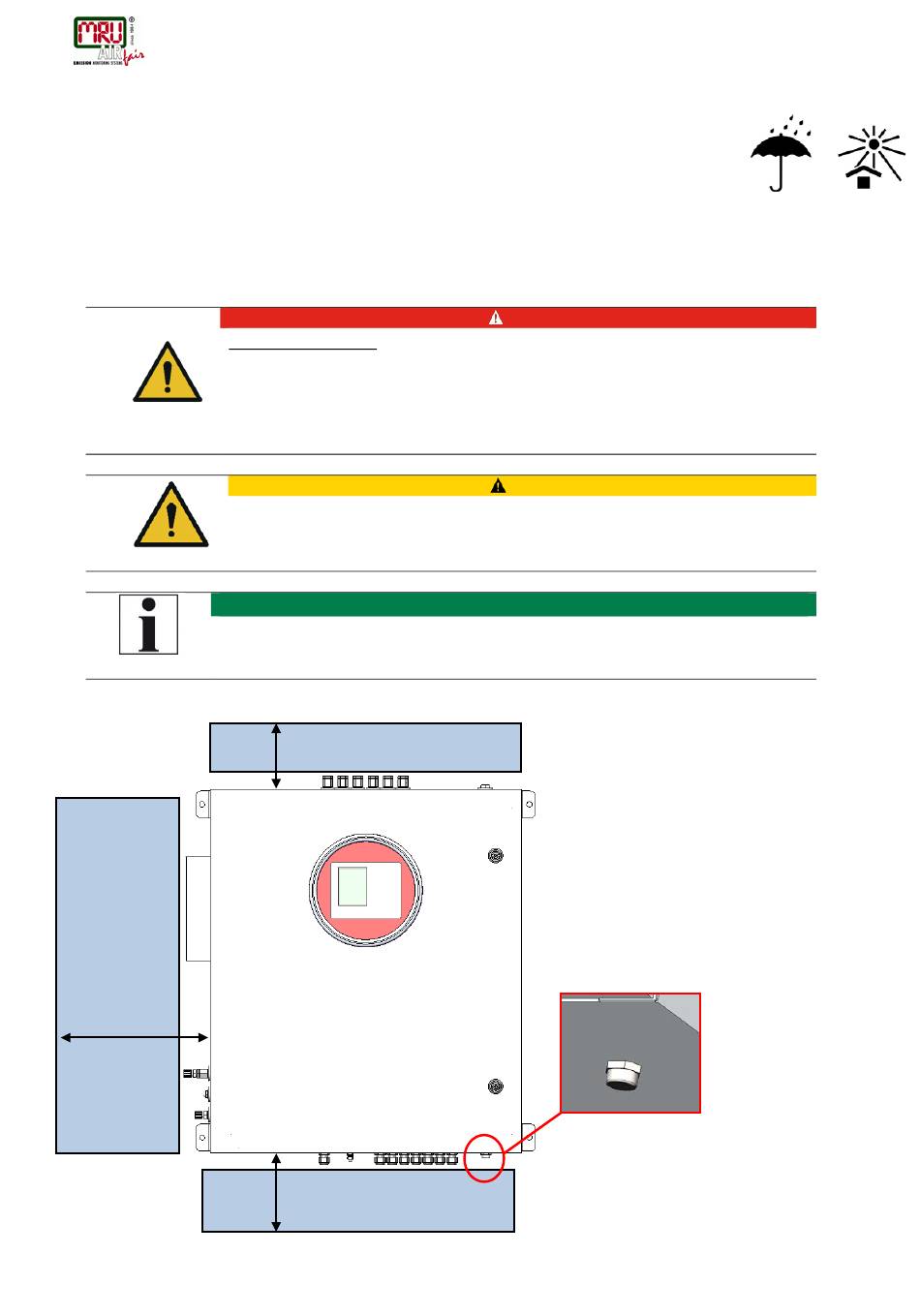

The analyzer uses two different fitting diameters. The position and the diameters of the different
connectors will be shown in the sketch below:
18.
Distance, which should be fulfilled
Min. 40 cm
MRU GmbH, D-74172 Neckarsulm
Explosion hazard
Before start the mounting and installation work, make sure to have a
"hot permit" and monitor at all time the ambient atmosphere with a
certified flammable gas detector.
Do not cover the breather drain!
All connectors of the analyzer use female threads.The analyzer may be
connected by tubing or piping.
Min. 50 cm
Min. 30 cm
SWG100BIO Ex. User Manual
DANGER
CAUTION
NOTE
Do not cover the
breather drain.
