Installation of the external switch-off circuit
The remote power supply box itself is not explosion protected at all. Therefore it must be
installed in safe area.
MRU GmbH, D-74172 Neckarsulm
Safety installation
The external electric contactor K1 is a part of the safety installation. It is
required to be installed by user when power supplying the analyser.

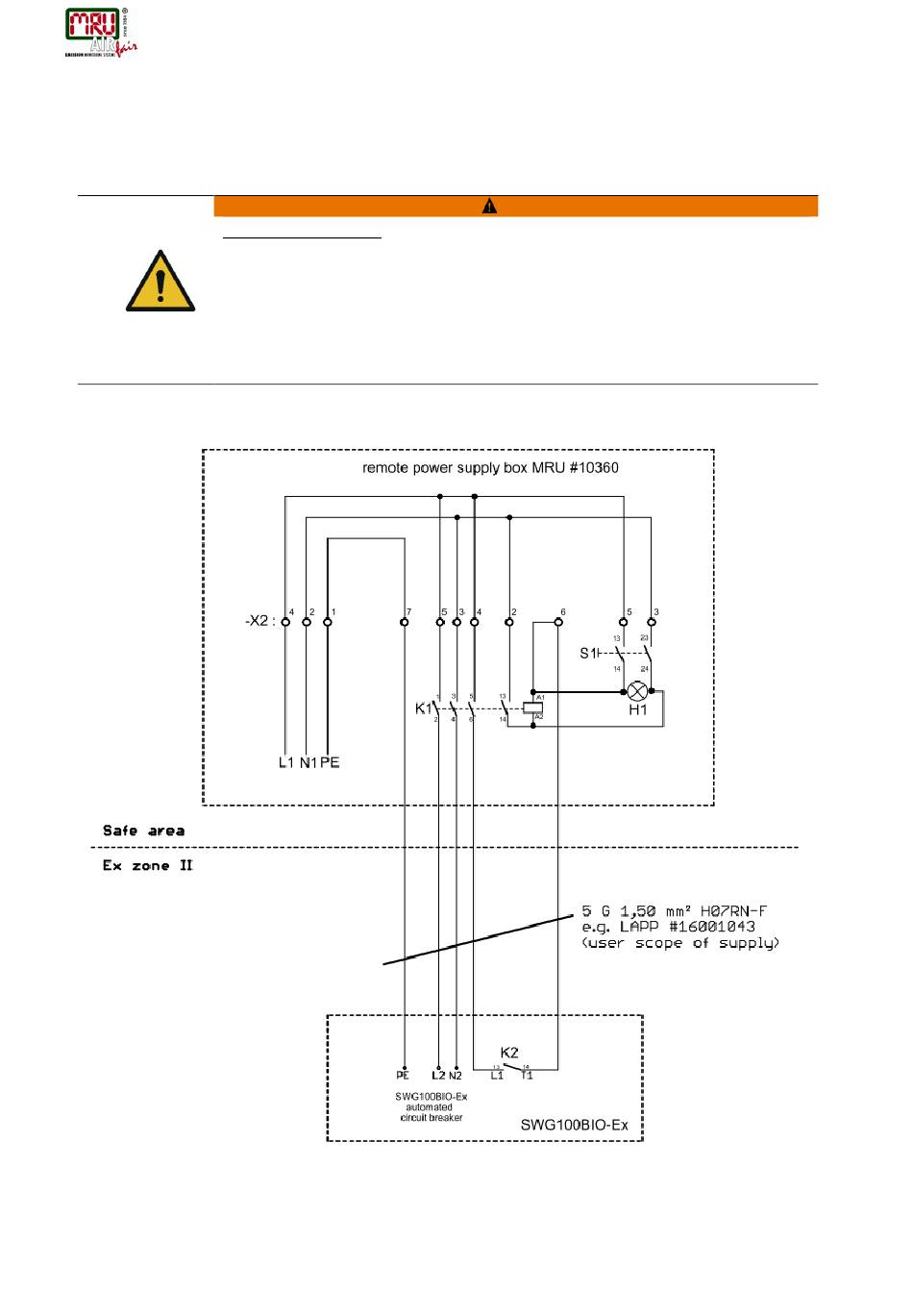

The circuit diagram below shows the correct wiring of the remote
power supply box.
SWG100BIO Ex. User Manual
WARNING
41 / 108
