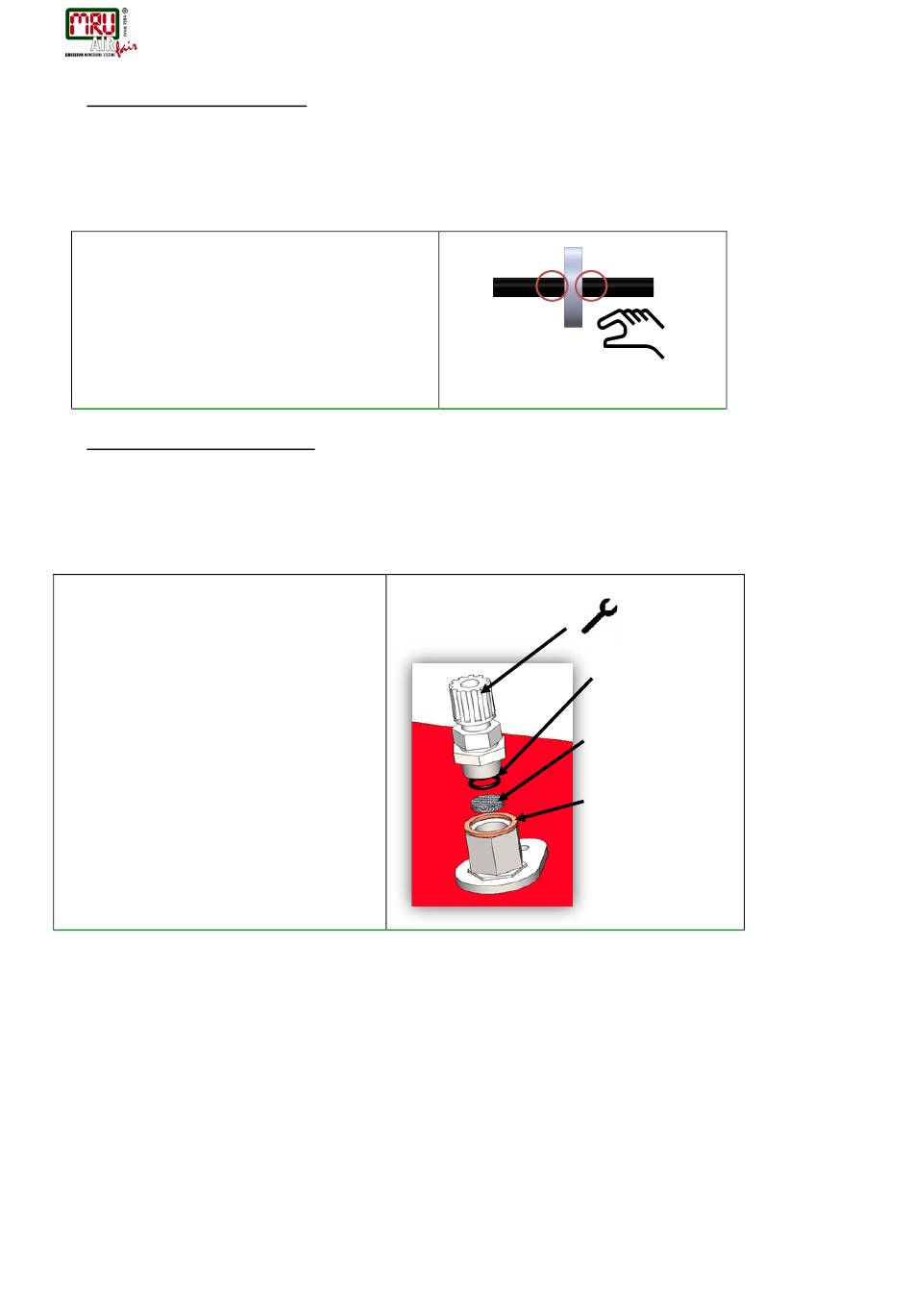

Position 4: PTFE Filter (#51513)
Required materials: PTFE filter (#51513) contained in the service set.
Required tools: needle-nose pliers.
Exchange interval: Exchange necessary, if gas flow is too low.
Steps:
Pull the exhausted filter-unit from the viton tube and
exchange it with a new one. If it necessary, the tube
can be solved from the tube with a needle-nose
pliers.
Position 5: Sinter filters (#65988)
Required materials: Sinter filters (65988), contained in the service-set.
Required tools: Spanner (range:17)
Exchange interval: Every 2 month, dependent from the dust- and pollution load.
Steps:
1. Remove the gas tube. Be sure, that no
process gas emits in the environment.
The upper part from the nozzle can be
removed with a spanner (range 17).
2. Inside of the nozzle is a sinter filter tablet
with an o-ring. Remove the exhausted
sinter filter tablet and the o-ring and
exchange both parts to a new one. The
compensation parts can be found in the
service-set.
3. The gas tube can now connect with the
nozzle again.
MRU GmbH, D-74172 Neckarsulm
SWG100BIO Ex. User Manual
O-ring (#64798)
Sinterfilter
(#65988)
Copper seal
(#61947)
75 / 108
