13.3.

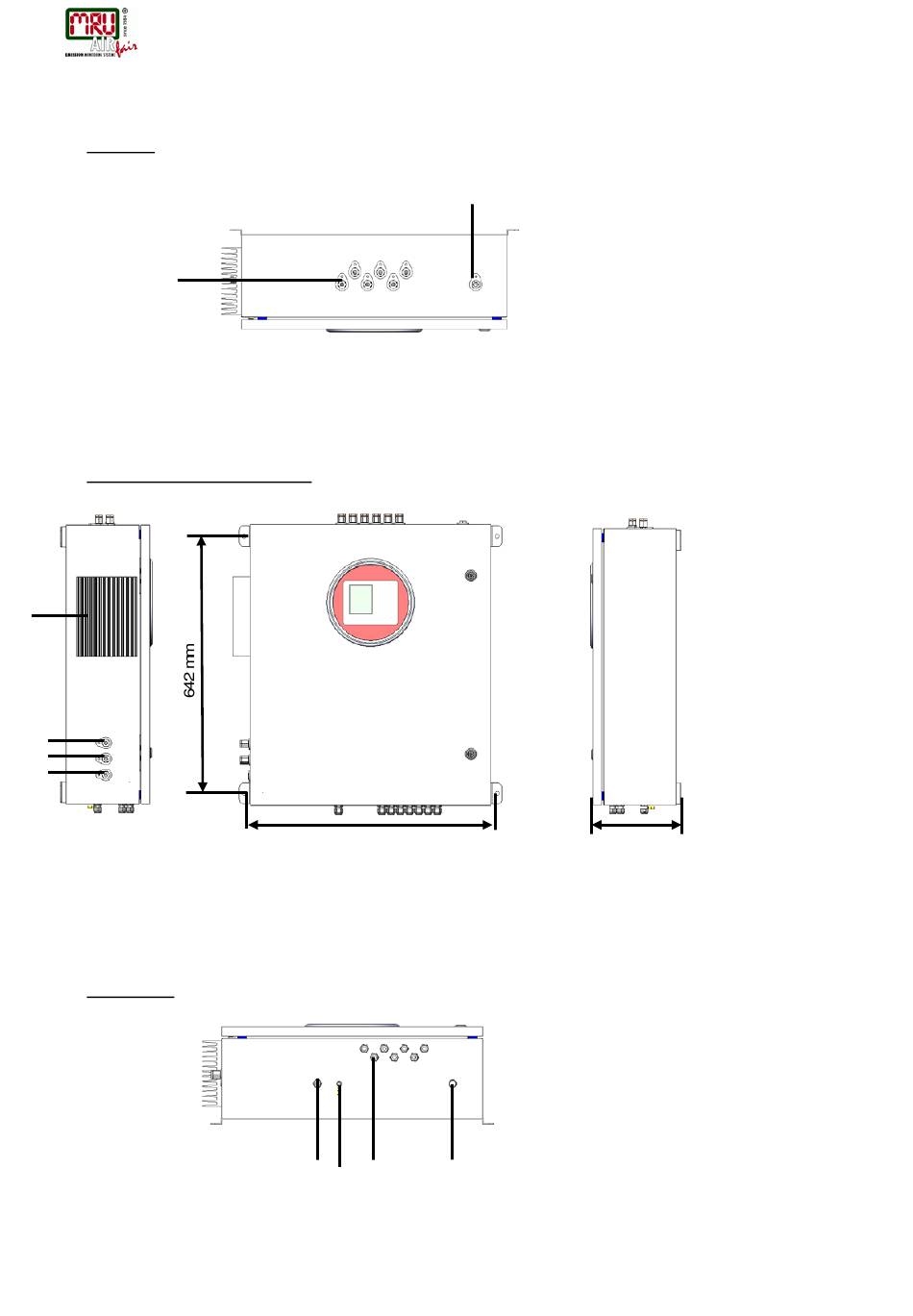

Dimensions and views of the analyser

Top view:
1
Reference:
1. Sample gas inlets G1/8 inch female thread.
2. Sample gas outlet G1/4 inch female thread
Front view / left view / right view
1
2
3
4
Reference:
1. Heat sink of gas cooler unit
2. Calibration gas inlet G1/8 inch female thread
3. Zero gas inlet G1/8 inch female thread
4. Condensate outlet G1/8 inch female thread
Bottom view
MRU GmbH, D-74172 Neckarsulm
SWG100BIO Ex. User Manual
630 mm
4
3
1 2
2
223 mm
Reference:
1. Cable gland M16 for power supply
2. PE bolt for earthing cable
3. Cable gland M16 for I/O modules
4. Breather drain
15 / 108
