SWG100 BIOGAS User Manual
Manual zeroing and selection of measurement points
For analyzers with just one measuring point, the status of "measuring" by pressing the F1 key =
"zero" will be canceled and the next manual zeroing be initiated.
For analyzers with several sampling points can by pressing the F1 key = "number" manually the
next sampling point can be selected. This is then measured as soon as possible.

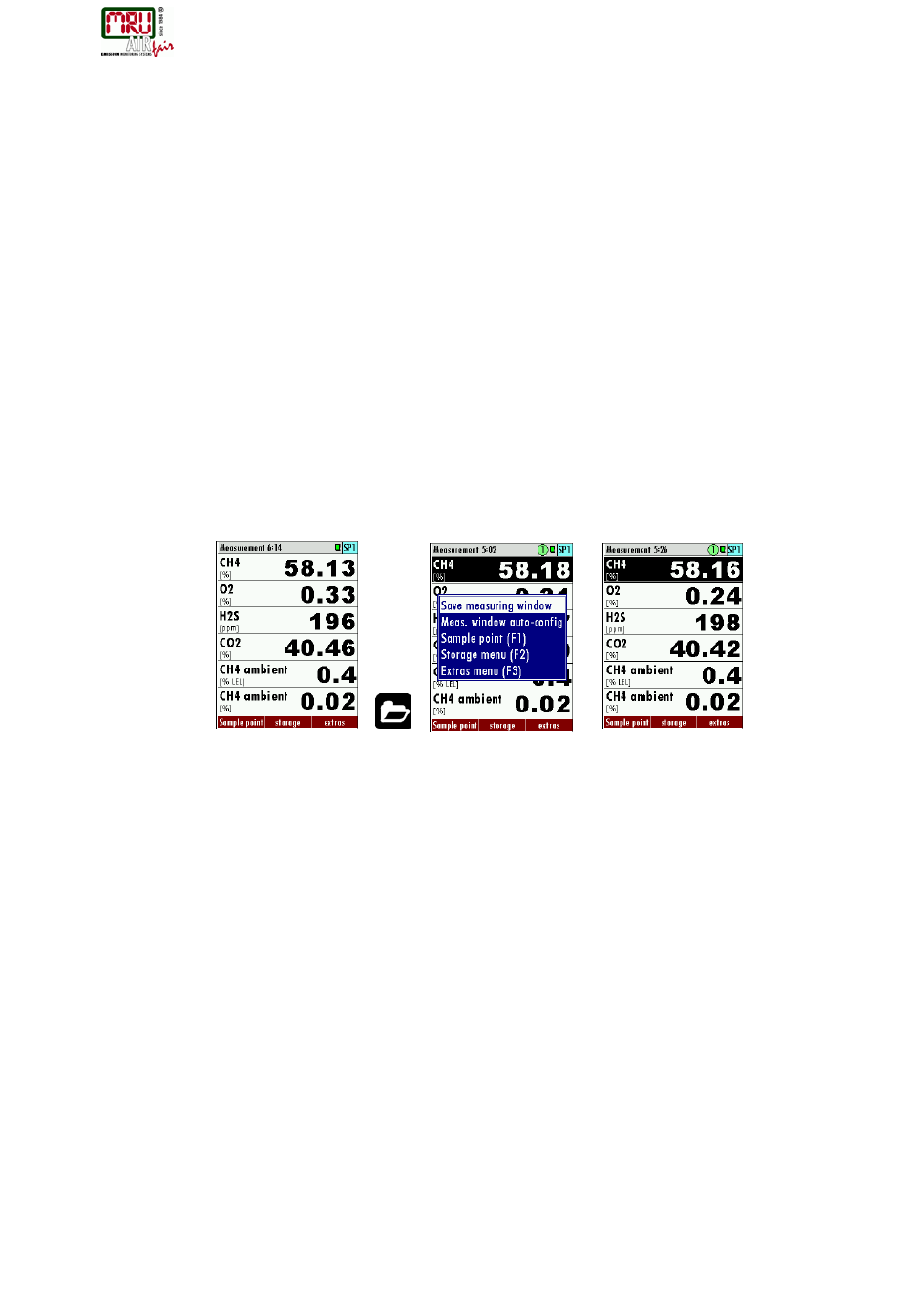

Configuration of the measurement window (display content)
The measuring values selection and arrangement is user free configurable in both display
modes.
Press the content menu key and select the function 'Define measuring window'. A cursor
(inverted line) will appear. The cursor can be moved with the arrow keys up and down. The
arrow keys left and right will change the measuring value in the selected line. When the cursor
is moved over the top or under the bottom line, then the next definable page will show up.
As soon as you have finished the configuration, press the ESC key (or press again the menu
key and select the function 'Save measuring window'). You will be asked, whether the changed
settings shall be stored or discarded. Select 'keep them' in order to store your changes.
