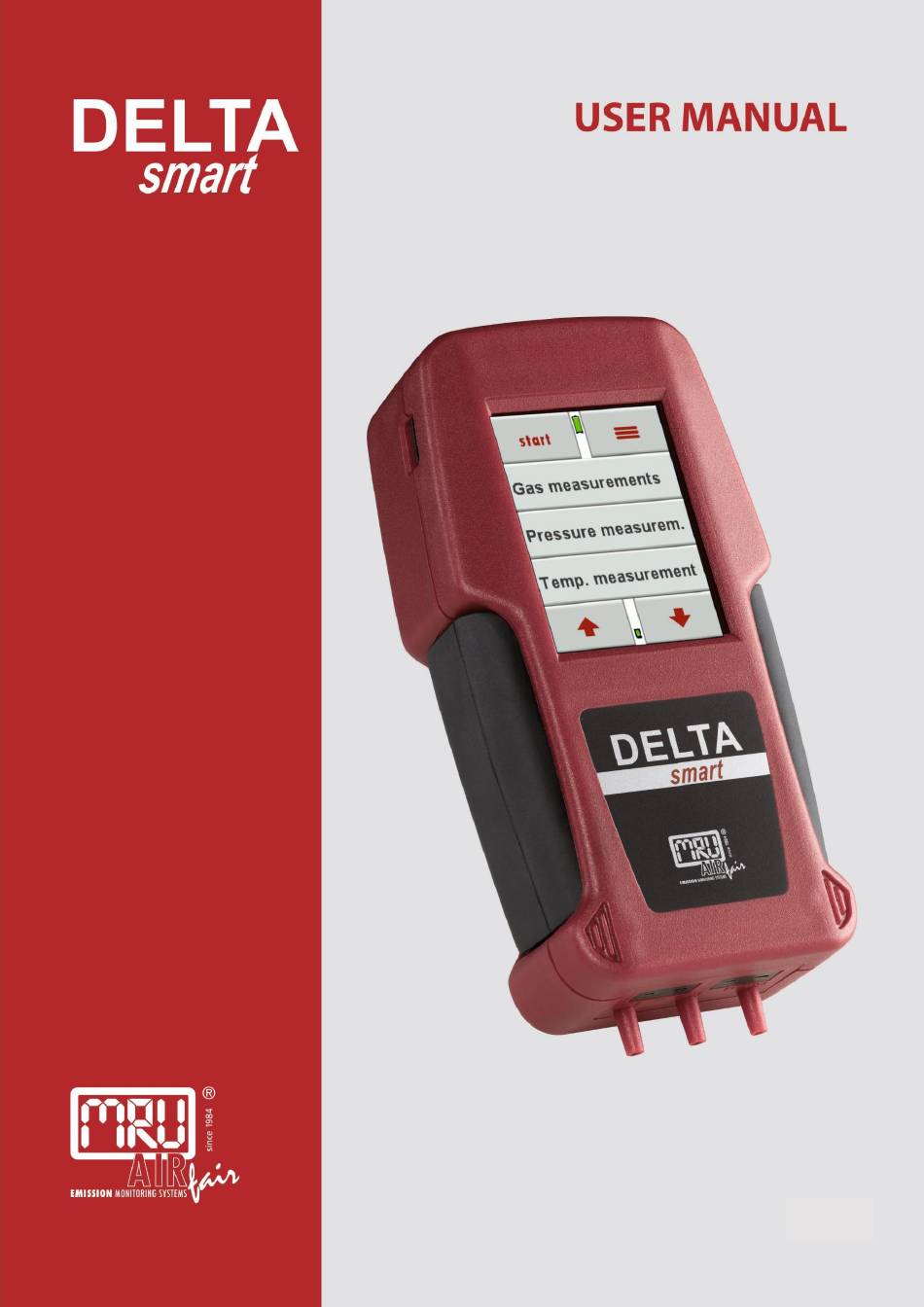

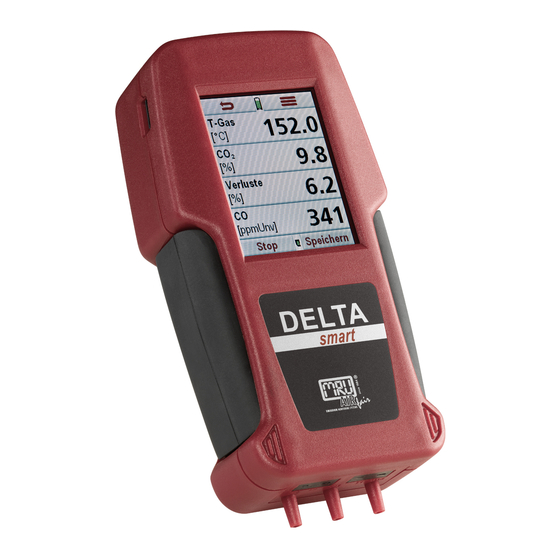

- Page 1 User manual DELTAsmart 6902EN 1 / 50 MRU GmbH, D-74172 Neckarsulm...
- Page 2 User manual DELTAsmart Manufacturer: Legal notices / Intellectual property rights comments Original user manual © 2020 by MRU No part of this manual my be published in any form (print, fotocopy, electronic media or any other publication form) without a written approval by the publisher.
-
Page 3: Table Of Contents
Analyzer details ....................6 Lithium-Ion battery user guidelines ..........7 Introduction ..................8 2.1. Intended use ....................8 2.2. The _Company MRU GmbH ............... 9 2.3. Packaging ...................... 10 2.4. Return of hazardous material ..............10 2.5. Return of electronic equipment ............10 Description .................. - Page 4 Appendix ..................42 11.1. Technical data ....................42 11.2. Analysis and calculations ................. 44 11.3. Fuel type lists ....................45 11.4. Troubleshooting ..................47 11.5. O-Ring Set for DELTAsmart ..............48 Declaration of conformity............49 4 / 50 MRU GmbH, D-74172 Neckarsulm...
-
Page 5: Information For Product And Safety
User manual DELTAsmart Information for product and safety 1.1. Safety manual All general information and safety precautions of MRU products are listed in the supplied separate safety manual. Therefore, this manual must be read and observed before the first use of the instrument. -
Page 6: Ensure Safety
User manual DELTAsmart 1.3. Ensure safety • The analyzer may only be used for its intended purpose and within its defined technical parameters. Don’t use any force and avoid dropping the analyzer. • Don’t use the analyzer when there are visible damages of the enclosure, the charger or supply lines. -
Page 7: Lithium-Ion Battery User Guidelines
User manual DELTAsmart Lithium-Ion battery user guidelines NOTE The battery is inside the analyzer and is not accessible to the end-user. Below are some guidelines you need to know about Lithium Ion batteries and the handling of these. • The rechargeable battery may only be used for this analyzer. -
Page 8: Introduction
VDI4206 and EN50379 met- rics and stores them for further processing. The DELTAsmart analyzer is specifically not intended as a safety device or per- sonal protective equipment; it should not be used as a warning device to warn people against the presence of harmful gases. -
Page 9: The _Company Mru Gmbh
MRU GmbH produces a wide range of instruments, from standard analyz- ers up to tailor made industrial analyzers. MRU GmbH contact details are listed on the previous page. Plant 1: Sales, Service, R&D... -
Page 10: Packaging
Hazardous waste must be returned to MRU prepaid. 2.5. Return of electronic equipment MRU GmbH is required to accept the return, for proper disposal, of all analyzers delivered after 13 of August 2005. Analyzers must be returned to MRU prepaid. -
Page 11: Description
DELTAsmart analyzer trol and adjustment measurements of gas, oil and wood fired furnaces. Available options for this and other analyzers can be found on the MRU Homepage or speak to a member of our sales team. Gas schematics diagram... -
Page 12: The Analyzer
User manual DELTAsmart 3.1. The Analyzer The compact analyzer is made from a fiber re-enforced plastic material with all measurement related connections at the bottom of the analyzer. The analyzer is operated exclusively using the touch screen display Touch screen display... -
Page 13: The Condensate Separator (Water Trap)
User manual DELTAsmart 3.2. The condensate separator (water trap) During a measurement condensate is being collected in the condensate separator. The maximum water level is marked with a ring on the bot- tom part of the show glass. Empty the condensate separator frequently to avoid water getting into the analyzer. -
Page 14: Extraction Probes
User manual DELTAsmart 3.3. Extraction probes The DELTAsmart is available with either a probe with fixed probe tube or with exchangeable probe tubes. A complete list of available probe options can be found in our effective price list. Here are 2 possible options:... -
Page 15: Operation
User manual DELTAsmart Operation 4.1. Power on and power down is powered on using the display. DELTAsmart Touch the screen and the green ON button will appear, then press the ON button to power on the analyzer. Use the context menu button to power the analyzer down. -
Page 16: Combustion Test
User manual DELTAsmart 4.4. Combustion test DANGER Poisonous gas can be present The possibility of death through intoxication. Flue gases are extracted by the analyzer and then evacu- ated into the ambient air. ► Only operate the analyzer in well ventilated rooms. -
Page 17: Draft / Pressure Measurement On Combustion Test
User manual DELTAsmart 4.5. Draft / pressure measurement on combustion test The draft is measured using the DELTAsmart in combination with the extrac- tion probe either before or after gas measurement. While inside the measurement window you press the context menu key and then select the draft/pressure key. - Page 18 User manual DELTAsmart Connection for draft measurement 1 Temperature port T2 for gas temperature 2 Temperature port T1 for ambient air temperature 3 Connection port flue gas entrance 4 Connection port P1 (not used for draft measurement) 5 Connection port P2 for draft measurement...
-
Page 19: Display
User manual DELTAsmart 4.6. Display All information needed to operate the analyzer are displayed on the screen 1 Main menu lines 2 Function keys 3 Function keys e.g. page up/down 4 Zeroing status bar 5 Charging status of the battery... - Page 20 User manual DELTAsmart DELTAsmart The Storage The Extras The Measure- menu is de- menu is de- ment menu is scribed in scribed in described in chapter 8 chapter 9 7 Performing Data Storage, Extras, Page measure- Page 33. ment, Page...
-
Page 21: First Usage
User manual DELTAsmart First usage Once you have determined that the analyzer is safe to be used, it can now be customized to meet your needs, these modifications can be changed at any time. 5.1. Preparatory steps • Remove the analyzer from its packaging and read the complete manual. -
Page 22: Setting Time And Date
User manual DELTAsmart 5.3. Setting time and date In the main menu Extras and sub menu Date & time date and time can be viewed and modified. The analyzer changes the time automatically between standard time and daylight savings time. -
Page 23: Select Fuel Types And O Reference
User manual DELTAsmart 5.6. Select fuel types and O reference After selecting a measurement program, you can select or add fuel types. You can define what fuel types you want to see for each measurement program by using the fuel type list. -
Page 24: Define 6-Lines Measuring Window
User manual DELTAsmart When completed you will exit this window using the button. 5.9. Define 6-lines measuring window In the main menu, Extras you can select the 6-lines measuring window: can display 18 measurement values – 6 values on 3 DELTAsmart pages. - Page 25 User manual DELTAsmart Firmware version 1.06.00 or higher is needed for iOS: Adjustments can be made in the main menu EXTRAS / sub menu Set- tings / sub menu Bluetooth. There are two selections available: ANDROID and iOS BLUEGAZsmart must be OFF Additional information can be found in the documentation for each in- dividual software program.
-
Page 26: Preparing Measurement
User manual DELTAsmart Preparing measurement 6.1. Ensure Power supply DELTAsmart can either be used with • Internal battery (included with analyzer delivery) • Battery charger (included with analyzer delivery) Connect external accessories only when the analyzer is switched off! 6.2. Automatic power down function (AUTO-off) The analyzer switches off automatically if is in one of the 3 main menus and no key has been pushed for 60 minutes. -
Page 27: Controlling Condensate Separator (Water Trap)
User manual DELTAsmart 6.6. Controlling condensate separator (water trap) The condensate separator must be emptied before and after each measurement, you will get a reminder to do that when switching off the analyzer. The condensate separator must be checked before, during and after each measurement. -
Page 28: Automatic Zero-Point Setting
User manual DELTAsmart 6.8. Automatic zero-point setting Touch the display the press the green ON button. The analyzer will per- form a self-check and start zeroing. During zeroing the probe must be in ambient air (not in the stack)! During zeroing there is a blue zeroing bar (top of display) visible. -
Page 29: Performing Measurement
User manual DELTAsmart Performing measurement In the base configuration each has the capability to perform DELTAsmart a combustion test. Here is a complete description how to perform a combustion test. Once powered up the analyzer is in the measurement menu. -
Page 30: Printing Measurement Results
User manual DELTAsmart 7.5. Printing measurement results The measuring results can be printed from each measuring program us- ing the printer button in MEASUREMENT SCREEN / CONTEXT MENU (print-out). The values will be printed the same way the screen is de- fined;... -
Page 31: Pressure Measurements
T2) as well as the difference of these values will be displayed. NOTE The accuracy of this measurement can only be war- ranted when MRU temperature sensors are used.. 7.10. CO Ambient air In some countries the use of the CO Ambient program is mandatory. -
Page 32: After Each Measurement
User manual DELTAsmart 7.11. After each measurement Once a combustion test has been completed the probe is removed from the stack and the hole in the stack (flue gas pipe) must be closed with an appropriate sticker (tape). CAUTION HOT – danger of burns and fire hazards from gas ex- traction probe. -
Page 33: Data Storage
The analyzer can store up to 1,000 different sites. New sites can be added in the analyzer. Modifications can be done us- ing an external PC program e.g. MRU Win. Attention: New sites created in the analyzer will NOT be transferred back to the computer program. -
Page 34: Data Transfer Using The Sd Card
• All other free text lines for e.g. name and address. (These lines can only be filled using an external PC pro- gram like the MRU Win) Delete sites You can: • In the sub menu Sites administration single sites can be deleted using the delete button. - Page 35 User manual DELTAsmart The file has no column heading that means that the first line already has user data. Each line has a minimum of 9 columns (with 8 commas) and the first field in the line will be the site number. All data will be imported as long a site number is available.
-
Page 36: Measurements In Data Storage
User manual DELTAsmart Export of Combustion Tests This function is used to export combustions tests from the analyzer to a computer program. Attention! This function is not suitable for back up or for the transfer to another analyzer because the exported file cannot be imported again! The created file has the name ‚EMIxxxxx.csv’, in which the xxxxx are con-... -
Page 37: Data Transfer To The Pc (Sweeping District Management Programmes)
Which requirements are necessary on the PC? The DELTAsmart must be registered on the PC as a HID conform device. What does the MRU-ZIV module? The MRU-ZIV module is only used for data exchange. Via the USB cable the stored measurements can be read in the analyzer. - Page 38 User manual DELTAsmart How do I have to install the MRU-ZIV module? The software MRU-ZIV module can be found on the MRU product CD in the Software folder. During installation, the manual for the MRU-ZIV module is stored on your hard disk, which you can print out if necessary.
-
Page 39: Extras
When you experience a defect of a sensor you will most likely call in at MRU and they will ask you for these service values to identify the defect sensor or other defect parts. Each sensor will display a service value as well as other parts installed inside the analyzer. -
Page 40: Analyzer And Accessories Leak Test
In case the test fails, you will have to check the probe, the hoses and the con- densate separator for any damages or leakages. Contact your local MRU au- thorized dealer for further assistance if you can’t locate any defects (www.mru.eu). -
Page 41: Maintenance
User manual DELTAsmart 10 Maintenance 10.1. Cleaning NOTE Please note that correct operation of the analyzer is only ensured if the sensors are adjusted regularly. ► Depending on the intensity of use, the sensors have to be adjusted / calibrated 1-2 times a year . -
Page 42: Appendix
User manual DELTAsmart 11 Appendix 11.1. Technical data General data Description Values Operation temperature +5°C - +45 °C / 41° F… 113° F Rel. Humidity when operating, not con- densing Storage temperature -20°C - +50°C / -4°F …122° F Internal battery, operation hours Li-Ion, >... - Page 43 Number of thermocouple type K input Measuring Range -40 °C – 1.200 °C / ±2°C Accuracy abs. / reading 0,50% Flue gas temperature (using MRU probe) Measurement range with stainless steel 0 - 800°C probe tube Accuracy abs. / reading ±2°C / 0,50%...
-
Page 44: Analysis And Calculations
User manual DELTAsmart Calculated values Measurement range (fuel type dependent) 0 - CO Accuracy abs. ± 0,3 Vol. % Air ratio Measuring Range 1 - 20 Exccess air Measurement range 0 - 999 % PI (Poison Index / Ratio) Measurement range 0,0001 - 10.0... -
Page 45: Fuel Type Lists
Losses Gross Exc. Air Lambda Dewpoint CO / CO ratio 11.3. Fuel type lists This list is valid only for Germany. Information on fuels for other countries can be requested from MRU. Website: www.mru.eu Germany 20,96 Fuel type Fuel type Prüfgas... - Page 46 User manual DELTAsmart Firmware updates Check the analyzer firmware • Power on the analyzer then press the context button and then the extras menu and the sub menu device info. • The 4th line will display the installed firmware version: e.g.: 1.07.07...
-
Page 47: Troubleshooting
User manual DELTAsmart 11.4. Troubleshooting Troubleshooting your analyzer Effect Fault Reason Solution Analyzer shows Analyzer shows no Make an analyzer reset no reaction reaction when (reset button) touching the screen Analyzer is too Display – ana- e.g. analyzer was Take analyzer to a cold and can’t... -
Page 48: O-Ring Set For Deltasmart
User manual DELTAsmart 11.5. O-Ring Set for DELTAsmart 65875 O-Ring Set Condensate separa- tor #65622 Seal filter side #65627 Seal show glass side #65628 48 / 50 MRU GmbH, D-74172 Neckarsulm... -
Page 49: Declaration Of Conformity
User manual DELTAsmart 12 Declaration of conformity 49 / 50 MRU GmbH, D-74172 Neckarsulm... - Page 50 User manual DELTAsmart 50 / 50 MRU GmbH, D-74172 Neckarsulm...
