Mounting and installation of the gas cylinders for the auto calibration function
The auto calibration function allows the calibration of the analyzer. To use the auto calibration
function, it is necessary to install the calibration gas bottles on the analyzer.
Only educated staff is allowed to install the gas cylinders! Gas cylinders
stand under extreme pressure and may cause material and personal
damage!
All gas cylinders must be equipped with a pressure reducer! The
pressure must be set to 500 mbar!
Cal inlet port (scope of supply)

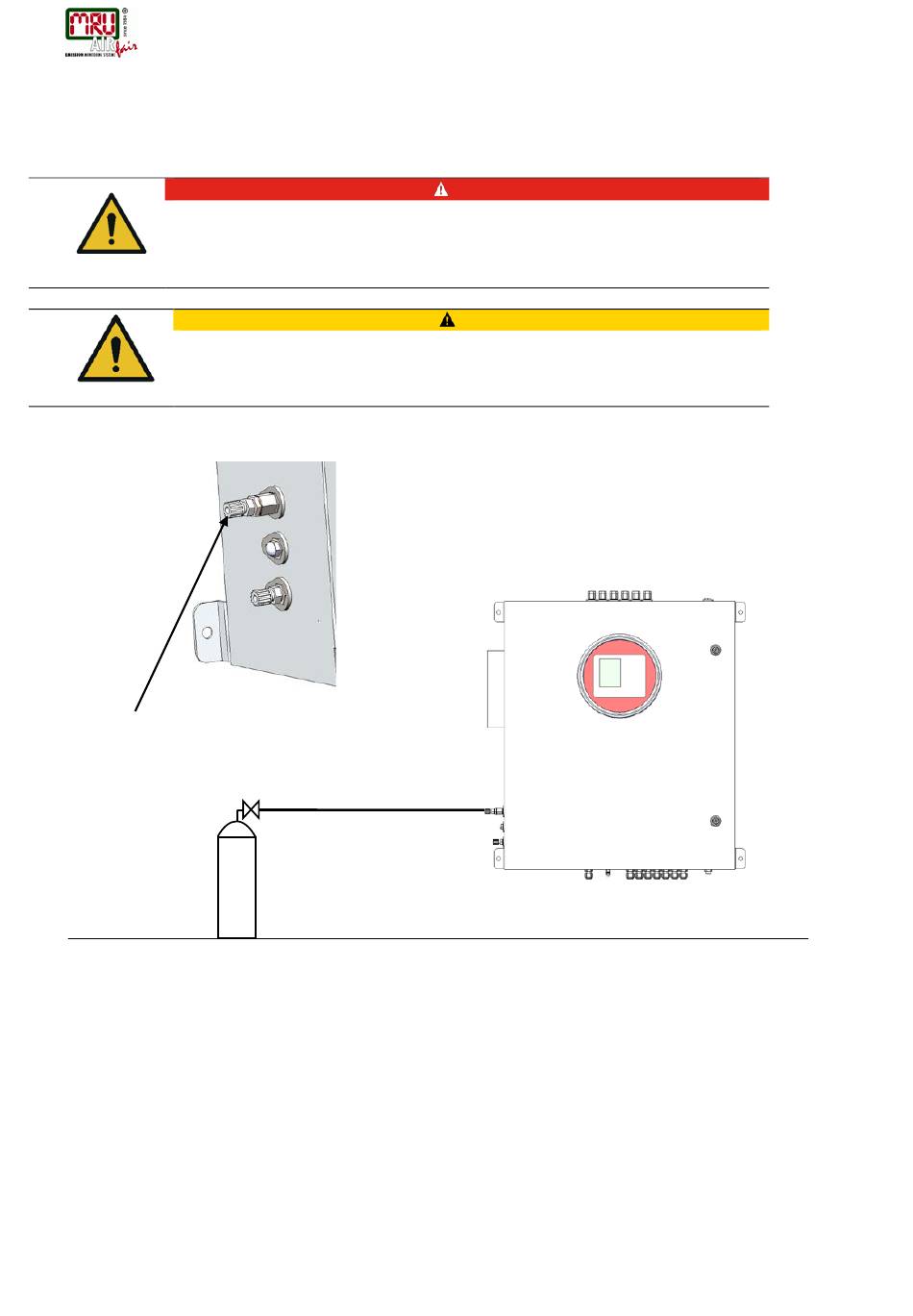

The sketch above shows the necessary installations for the auto calibration. The mixed gas
bottle is installed on the left side of the analyzer. Before the gas bottle can be installed the gas
nozzle must be mounted on the calibration gas inlet. The gas nozzle reduces the incoming gas
flow in the analyzer.
MRU GmbH, D-74172 Neckarsulm
(1)
SWG100BIO Ex. User Manual
DANGER
CAUTION
(1) Primary pressure: 500mbar
87 / 108
